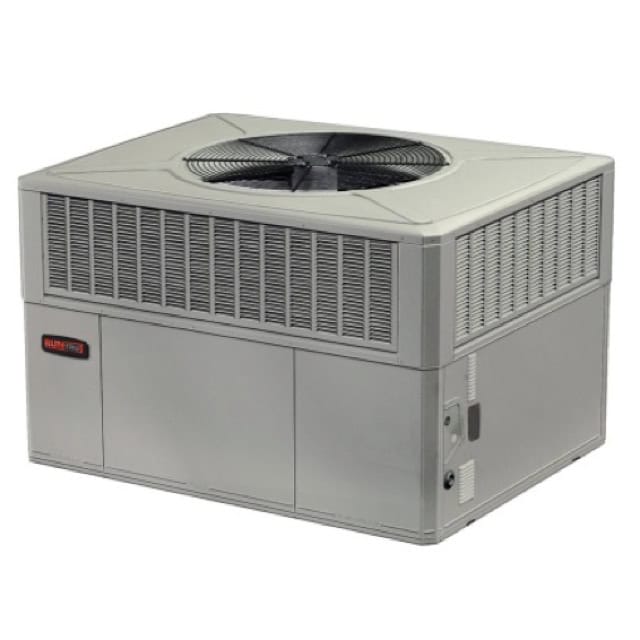

Trane A5PA3060A1000 Packaged Air Conditioner with Electric Heat 5 Ton 58500 Btu 13.4 SEER2 208-230V

Product Description

The Trane A5PA3060A1000 is a single packaged cooling and electric heat unit designed for light commercial and residential applications requiring an all-in-one rooftop or ground-level installation. Rated at 58,500 BTU/h of cooling capacity, this 5-ton unit operates on 208-230 volt single-phase 60 Hz power and achieves a SEER2 rating of 13.4 and an EER2 of 10.6. It uses R-454B refrigerant, a lower-GWP alternative to R-410A. The indoor fan is driven by a constant torque ECM, delivering 1,700 CFM of airflow in a convertible configuration that supports downflow and horizontal duct arrangements. Licensed HVAC technicians install and commission this unit.

The A5PA3060A1000 is suited for residential and light commercial rooftop or slab installations where a self-contained packaged unit is preferred over a split system. The convertible airflow configuration — supporting both downflow and horizontal supply — gives installers flexibility to match existing duct layouts. The integrated electric heat strip eliminates the need for a separate air handler or furnace. This unit is part of the RunTru by Trane A5PA3 series, aimed at applications where reliable entry-level efficiency and simplified installation are priorities.

Key Features

• 58,500 BTU/h cooling capacity at rated conditions
• 13.4 SEER2 and 10.6 EER2 efficiency ratings
• R-454B refrigerant — lower global warming potential than R-410A
• Constant torque ECM indoor fan delivering 1,700 CFM
• Convertible airflow configuration: downflow and horizontal
• Integrated electric heat strip — no separate air handler required
• Scroll compressor rated at 25.6 RLA / 150 LRA

Compatibility

Designed as an OEM packaged unit in the RunTru by Trane A5PA3 series for downflow and horizontal duct applications operating on 208-230 volt single-phase electrical service.

Installation Notes

Installation must be performed by a licensed HVAC technician holding the appropriate EPA Section 608 refrigerant handling certification. Disconnect and lock out all power before servicing electrical components. Duct connections, electrical whip sizing, and overcurrent protection must comply with local codes and the National Electrical Code. Verify that the supply circuit and disconnect are rated appropriately for the 60-amp power connection requirement before startup.

Technical Specifications

• Cooling Capacity: 58,500 BTU/h
• Nominal Tonnage: 5 ton
• SEER2: 13.4
• EER2: 10.6
• Voltage / Phase / Frequency: 208-230 volts / 1-phase / 60 Hz
• Power Connection: 60 amps
• Compressor Type: Scroll
• Compressor RLA / LRA: 25.6 / 150 amps
• Refrigerant: R-454B
• Indoor Airflow: 1,700 CFM
• Airflow Configuration: Convertible (downflow / horizontal)
• Indoor Fan Motor: Constant torque ECM
• Indoor Fan Diameter x Width: 11.87 inches x 10.62 inches
• Power Input: 5.08 kW
• Sound Power Rating: 73.1 dB(A)
• Indoor Fan Motor RLA / LRA: 1.7 / 3.5 amps
• Unit Weight: 485 pounds

Standard Information

• Brand: Trane
• Manufacturer Part Number: A5PA3060A1000
