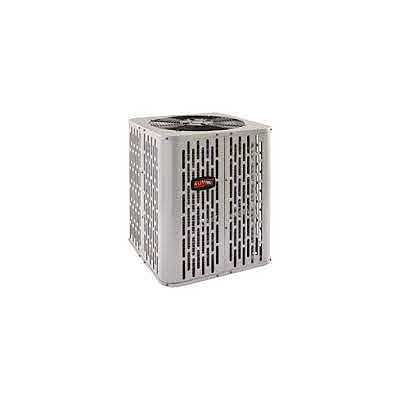

Trane A5HP5048A1000 Heat Pump Condenser 48000 Btu 4 Ton 15.2 SEER2 R-454B Single Stage

Product Description

The Trane A5HP5048A1000 is a single-stage, split-system heat pump condenser rated at 48,000 BTU/h (4 tons) with a 15.2 SEER2 efficiency rating. It operates on R-454B refrigerant and runs on a 208/230-volt, single-phase, 60 Hz power supply. The unit features an all-aluminum coil construction and a 24-volt system control interface. Designed for ducted residential central HVAC applications, this outdoor condenser pairs with a compatible indoor air handler or coil to deliver both heating and cooling from a single system. Licensed HVAC technicians handle the installation and commissioning of this equipment.

This condenser is intended for residential ducted split-system installations where a single-stage, R-454B heat pump is specified. It is suited to applications requiring 4-ton nominal capacity with 208/230-volt single-phase power. The A5HP5048A1000 is part of the RunTru by Trane product family and is positioned for new construction and replacement projects where current refrigerant regulations favor low-GWP refrigerants such as R-454B. It delivers year-round heating and cooling performance in a single outdoor unit footprint.

Key Features

• 48,000 BTU/h nominal cooling capacity at 4-ton rating
• 15.2 SEER2 efficiency rating meets current federal minimum efficiency standards
• R-454B refrigerant — low-GWP replacement for R-410A, compliant with current regulations
• All-aluminum coil construction for corrosion resistance
• 24-volt system control interface compatible with standard low-voltage thermostat wiring
• Single-stage operation with one outdoor propeller fan
• Sound power level rated at 72 dB(A) per AHRI Standard 270-2008

Compatibility

Designed as an OEM split-system heat pump condenser within the RunTru by Trane A5HP5 product family, intended for use with a compatible ducted indoor air handler or coil section in a residential split-system application.

Installation Notes

Installation must be performed by a licensed HVAC technician holding appropriate EPA Section 608 refrigerant handling certification, as R-454B is a mildly flammable A2L refrigerant requiring compliant equipment and procedures. Disconnect and lock out all electrical power before servicing the unit. Follow all applicable local mechanical and electrical codes, including NEC requirements for outdoor disconnect and branch circuit sizing based on the rated load amperage. Do not mix refrigerants or recharge with any refrigerant other than R-454B as specified on the unit nameplate.

Technical Specifications

• Nominal Capacity: 48,000 BTU/h (4 Ton)
• SEER2: 15.2
• Refrigerant Type: R-454B
• Voltage / Phase / Frequency: 208/230 volts / 1 Phase / 60 Hz
• Rated Load Amps (RLA): 18.1 amps
• Locked Rotor Amps (LRA): 95.0 amps
• System Control Voltage: 24 volts
• Number of Stages: 1 (Single Stage)
• Number of Fans: 1
• Coil Material: All Aluminum
• Sound Power Level: 72 dB(A) (AHRI Standard 270-2008)
• Unit Height: 44.625 inches
• Unit Width (Side A): 34.25 inches
• Factory Installed Start Components: No
• Compressor Heat: No
• Insulation / Sound Blanket: No

Standard Information

• Brand: Trane
• Manufacturer Part Number: A5HP5048A1000
