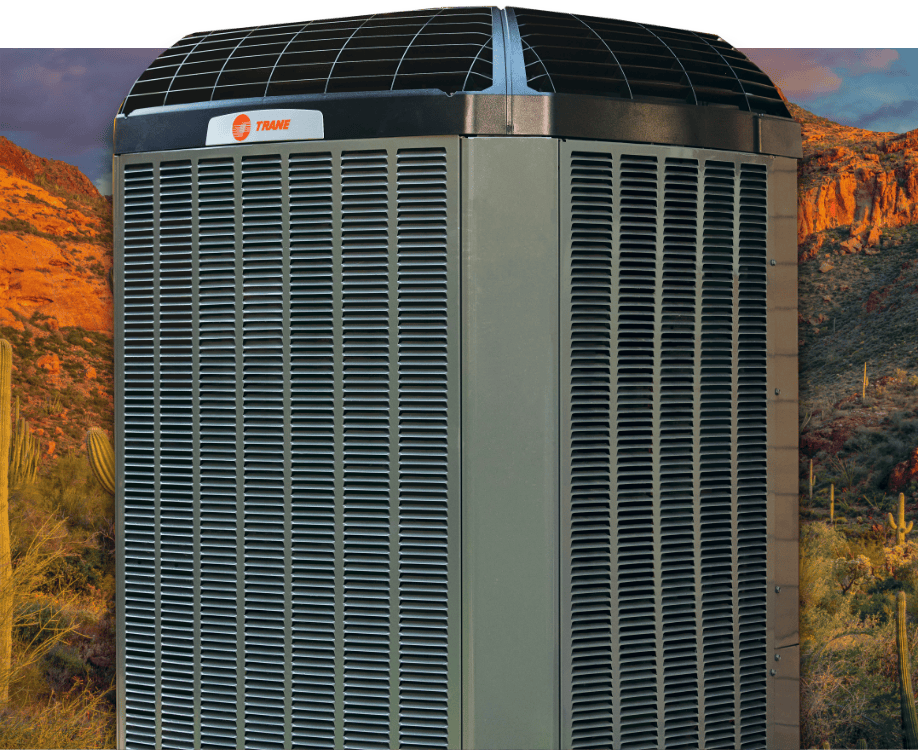

Trane A5HP5024A1000 Heat Pump Condenser 2 Ton 24000 Btu/h R-454B Single Stage Residential

Product Description

The Trane A5HP5024A1000 is a 2-ton single-stage split-system heat pump condenser rated at 24,000 BTU/h, designed for residential ducted central HVAC applications. Part of the RunTru by Trane product line, this outdoor unit operates on R-454B refrigerant and delivers both heating and cooling from a single system. It runs on 208/230-volt, single-phase, 60 Hz power and achieves a SEER2 rating of 14.3 or higher depending on matched indoor equipment. Licensed HVAC technicians install and commission this unit as part of a split-system setup paired with a compatible air handler or furnace coil.

This condenser is intended for residential installations requiring a ducted, central split heat pump system. It suits single-family homes and light commercial spaces where a single-stage, on-off heat pump meets the load requirements. The unit uses a PSC outdoor fan motor and is sized for standard 2-ton applications. When matched with a compatible Trane or RunTru air handler, the system provides year-round heating and cooling through a single refrigerant circuit. No auxiliary electric heat is factory-installed in the outdoor section; supplemental heat is handled by the indoor air handler.

Key Features

• 2-ton nominal capacity, 24,000 BTU/h cooling output
• R-454B refrigerant, a low-GWP alternative to R-410A
• Single-stage (on-off) compressor operation
• 208/230-volt, single-phase, 60 Hz electrical supply
• SEER2 rating of 14.3 with matched indoor equipment
• 23-inch blower diameter with PSC outdoor fan motor
• A-weighted sound power level of 75 dB(A)

Compatibility

Designed as an OEM-style outdoor condenser for residential ducted split heat pump systems. Compatible indoor air handlers and coil assemblies are required to complete the system; consult Trane or RunTru matchup documentation to confirm rated system efficiency with a specific indoor unit. The cedarshvac.com listing references the A5AHC002A1B30A as one compatible air handler pairing for this outdoor unit.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the equipment installation manual. Shut off all electrical power to the system before making any wiring or refrigerant connections. R-454B is an A2L mildly flammable refrigerant; technicians must follow applicable refrigerant handling regulations and use tools rated for A2L refrigerants. Do not operate the unit without verifying proper refrigerant charge per the system charge label and matched indoor equipment specifications.

Technical Specifications

• Nominal Capacity: 2 tons (24,000 BTU/h)
• SEER2: 14.3
• Refrigerant Type: R-454B
• Voltage / Phase / Frequency: 208/230 volts / 1-phase / 60 Hz
• Compressor Stages: 1 (single stage)
• Outdoor Fan Motor Type: PSC
• Blower Diameter: 23 inches
• Sound Power Level: 75 dB(A) A-weighted
• Unit Height: 32.625 inches
• Unit Width: 29.75 inches
• Factory Start Components: None
• Compressor Sump Heat: Not factory installed
• Sound Enclosure: Not factory installed

Standard Information

• Brand: Trane
• Manufacturer Part Number: A5HP5024A1000
