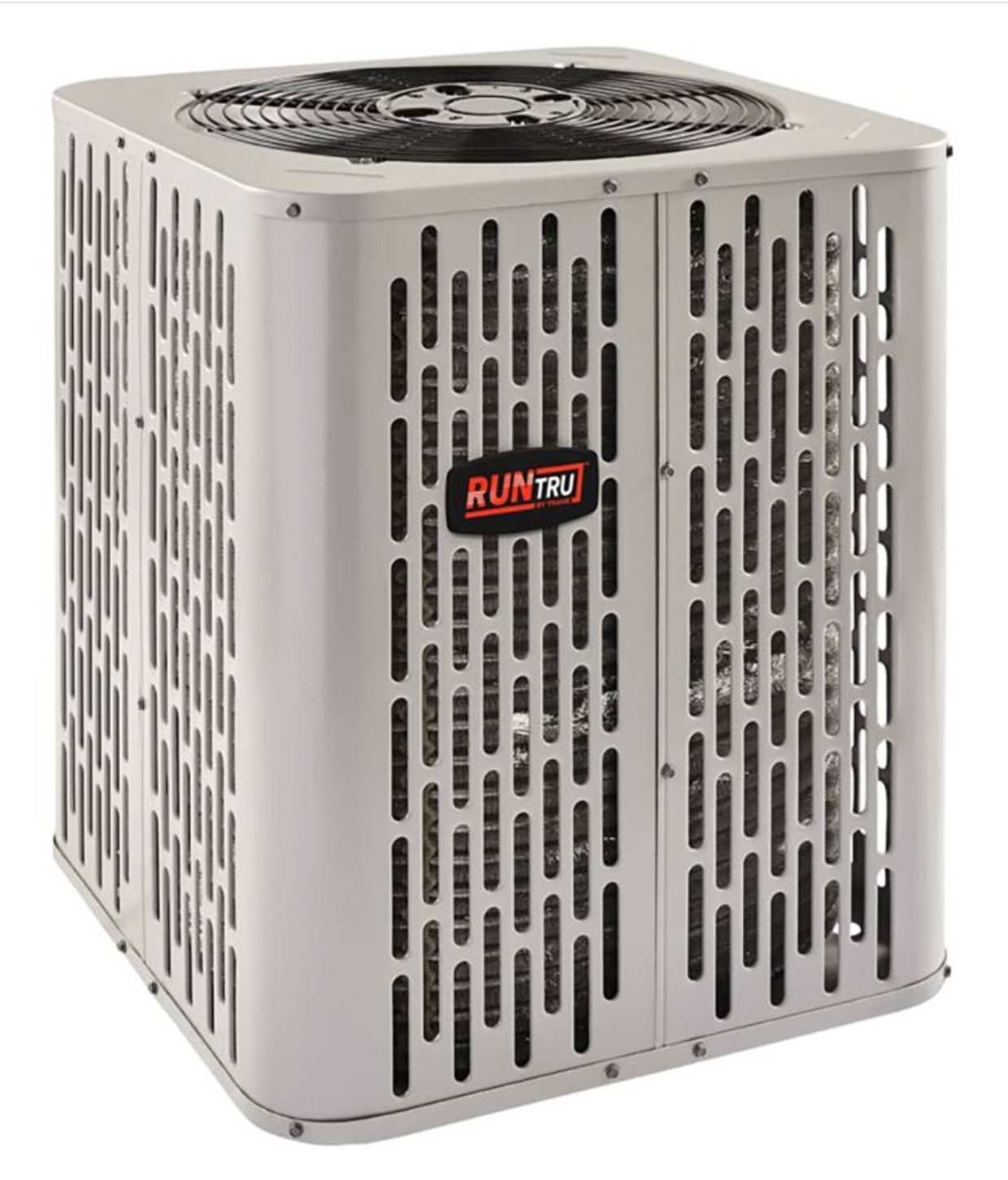

Trane A5HP4030A1000 Heat Pump Condenser 30000 Btu/h 2.5 Ton 14.3 SEER2 Single Stage R-454B

Product Description

The Trane A5HP4030A1000 is a 2.5-ton split-system heat pump condensing unit rated at 30,000 BTU/h with a 14.3 SEER2 efficiency rating. Operating on R-454B refrigerant, this single-stage unit delivers both heating and cooling through a single outdoor condenser, making it a practical choice for year-round residential comfort. It runs on a 200-230V/1-phase/60Hz power supply and uses a PSC blower motor. Licensed HVAC technicians install and commission this unit as part of a complete split-system heat pump installation.

This unit is designed for residential split-system heat pump applications where a single-stage, mid-efficiency outdoor condenser is required. It carries the RunTru by Trane product designation, which positions it as a value-tier offering within the Trane family of HVAC equipment. Typical installation scenarios include new residential construction and replacement of existing split-system heat pumps in single-family homes and light residential settings where 2.5-ton capacity is appropriate for the conditioned space.

Key Features

• 30,000 BTU/h nominal cooling and heating capacity at 2.5 tons
• 14.3 SEER2 efficiency rating meets current federal minimum efficiency standards
• R-454B refrigerant — a low-global-warming-potential alternative to R-410A
• Single-stage operation for straightforward system integration and controls compatibility
• PSC blower motor with a 23-inch blower diameter
• A-weighted sound power level of 75 dB(A) per AHRI Standard 270-2008

Compatibility

Designed as an OEM-style outdoor condensing unit within the RunTru by Trane split-system heat pump product line. Specific matched indoor coil and air handler compatibility should be verified against Trane matchup tables before installation, as R-454B systems require components rated for that refrigerant.

Installation Notes

Installation must be performed by an EPA Section 608-certified HVAC technician authorized to handle R-454B refrigerant. Disconnect and lock out all electrical power before making any electrical or refrigerant connections. Follow local mechanical codes and the manufacturer installation manual for proper pad placement, line set sizing, and electrical disconnect requirements. Do not mix refrigerant types or use components not rated for R-454B service.

Technical Specifications

• Nominal Capacity: 2.5 tons
• Nominal Cooling Capacity: 30,000 BTU/h
• SEER2: 14.3
• Refrigerant Type: R-454B
• Stages: Single-stage
• Voltage: 200-230V / 1-phase / 60Hz
• Blower Motor Type: PSC
• Blower Diameter: 23 inches
• Charging Specification Subcooling: 12 degrees F
• Sound Power Level: 75 dB(A) per AHRI Standard 270-2008
• Unit Height (A dimension): 32.625 inches
• Unit Width (B dimension): 29.75 inches

Standard Information

• Brand: Trane
• Manufacturer Part Number: A5HP4030A1000
