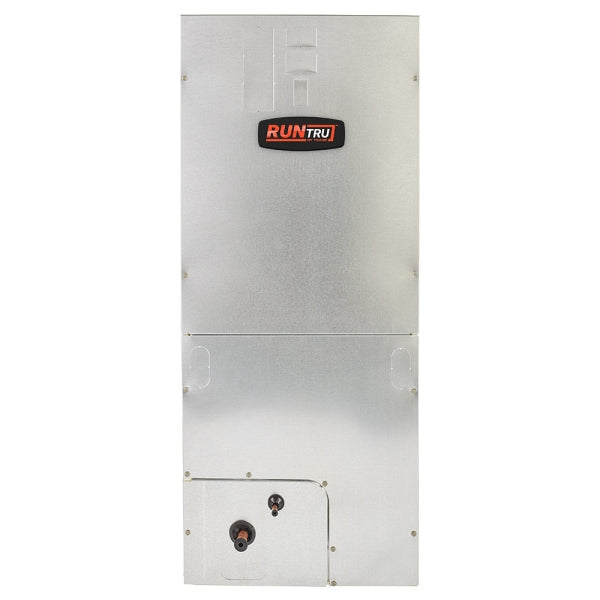

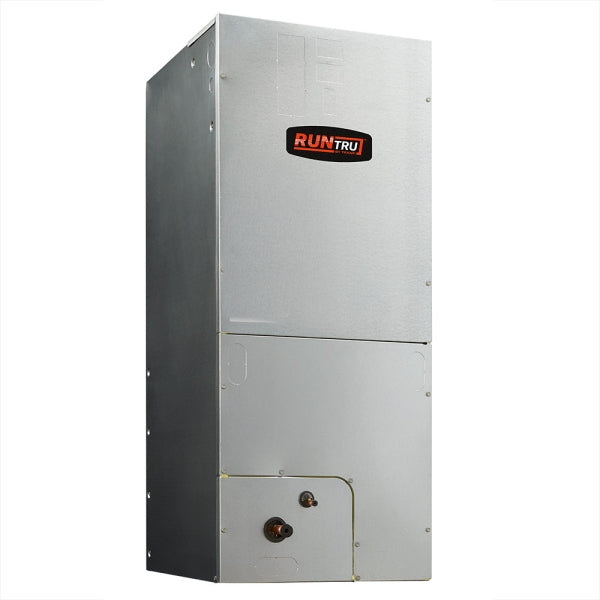

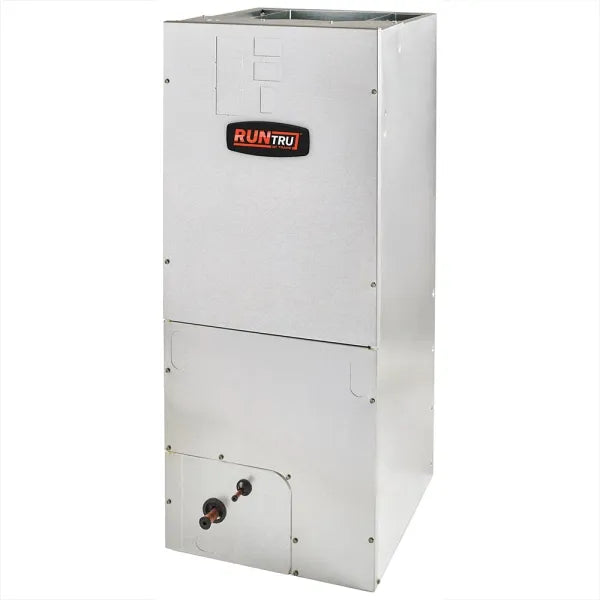

Trane A5AHV007A1D30A Runtru Variable Speed Air Handler 42000-60000 Btu/h 3.5-5 Ton R-454B 4-way Multi-position

Product Description

The Trane A5AHV007A1D30A is a convertible variable-speed air handler built for residential split-system HVAC applications. Part of the RunTru product line, it pairs with R-454B refrigerant-based air conditioners and heat pumps in the 3.5-to-5-ton range. The unit operates on 208-230V/1-phase/60Hz power and features a 24-volt system control interface. Its all-aluminum plate-fin coil and variable-speed blower motor deliver a capacity range of 42,000 to 60,000 BTU/h. A licensed HVAC technician is the expected installer for this equipment. The 4-way multi-position cabinet design allows flexible installation orientation to suit a wide range of residential applications.

This air handler is designed for residential split-system installations where the indoor unit must accommodate varying cooling and heating loads across a range of tonnages. With a cabinet width of 23.5 inches, it fits within standard D-cabinet rough-in envelopes. The variable-speed blower motor allows the system to modulate airflow to match demand, which supports comfort consistency and efficiency when paired with a compatible outdoor condensing unit or heat pump. The unit includes a factory-installed TXV for refrigerant metering. Compatible outdoor equipment uses R-454B refrigerant.

Key Features

• Variable-speed ECM blower motor for precise, demand-matched airflow
• All-aluminum plate-fin evaporator coil for durability and efficient heat transfer
• 4-way multi-position cabinet supports upflow, downflow, and horizontal orientations
• Factory-installed TXV for accurate refrigerant metering
• 24-volt system control interface for compatibility with standard thermostat wiring
• Designed for R-454B refrigerant systems, a low-GWP alternative to R-410A

Compatibility

Compatible with 3.5-ton, 4-ton, and 5-ton R-454B outdoor air conditioners and heat pumps. Designed for use within the RunTru by Trane A5AHV product series in residential split-system configurations.

Installation Notes

Installation must be performed by a licensed HVAC technician holding the appropriate EPA Section 608 certification for handling regulated refrigerants. Disconnect and lock out all electrical power before servicing or installing the air handler. Verify duct connections, drain line routing, and electrical supply voltage match unit requirements before startup. Consult local mechanical codes and the manufacturer installation instructions for clearance, filter access, and condensate disposal requirements.

Technical Specifications

• Capacity Range: 42,000-60,000 BTU/h
• Tonnage Range: 3.5-5 tons
• Blower Motor Type: Variable Speed (ECM)
• Refrigerant: R-454B
• Voltage: 208-230 volts, 1-phase, 60 Hz
• System Control Voltage: 24 volts
• Cabinet Width: 23.5 inches
• Cabinet Positions: 4-Way Multi-Position (4-Way Poise)
• Coil Type: All-Aluminum Plate Fin
• Metering Device: TXV (factory installed)
• Product Line: RunTru by Trane

Standard Information

• Brand: Trane
• Manufacturer Part Number: A5AHV007A1D30A
