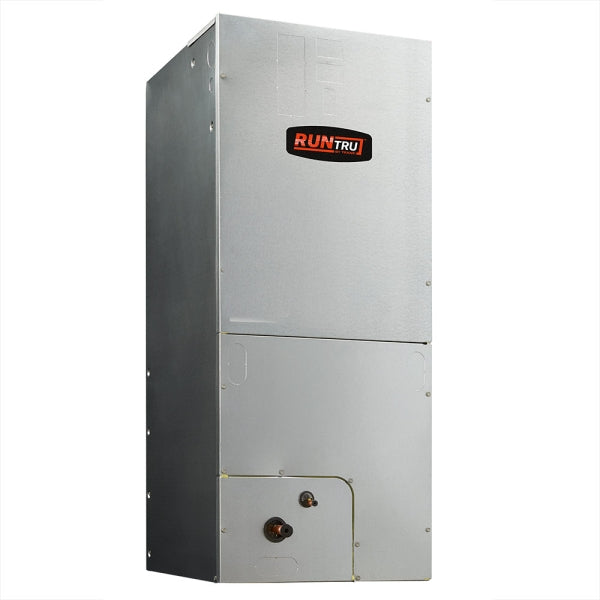

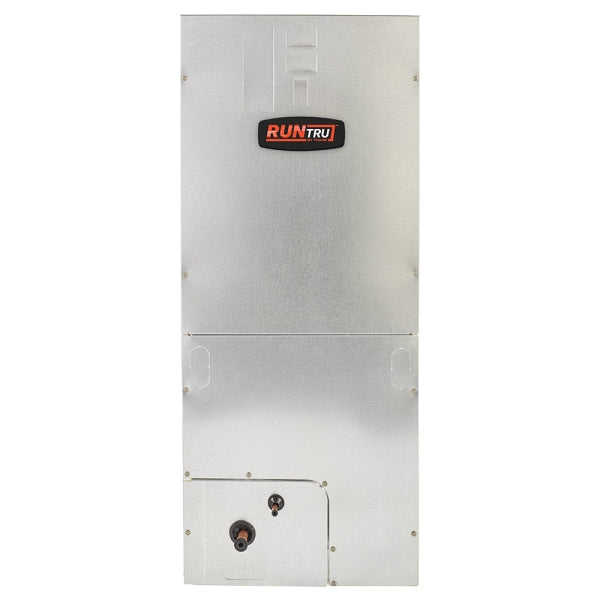

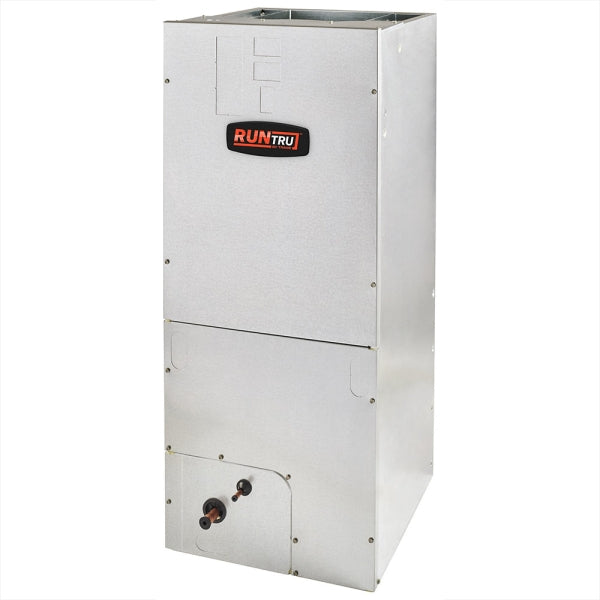

Trane A5AHC006A1D30A Single Stage Air Handler 48000 Btu 3 4 Ton Multi Position Ecm Motor R454B

Product Description

The Trane A5AHC006A1D30A is a single-stage, multi-position convertible air handler rated at 48,000 BTU/h (3 to 4 ton) and designed for residential and light-commercial split systems. It runs on 208/230V single-phase 60 Hz power and uses an ECM blower motor rated at 3/4 HP with eight speed taps, allowing precise airflow matching across a range of static pressure conditions. The indoor coil is an all-aluminum plate-fin design with four rows and 12 fins per inch, factory-ready for R-454B refrigerant and equipped with TXV metering for accurate refrigerant flow control. Licensed HVAC technicians install and commission this unit in new construction and replacement applications.

The A5AHC006A1D30A is suited for residential air conditioning and heat pump split systems serving areas approximately 1,500 to 2,400 square feet. Its convertible, four-way poise cabinet supports upflow, downflow, and horizontal left or right orientations, making it adaptable to closet, utility room, alcove, basement, crawlspace, and attic installations. The unit operates on 24-volt system control wiring and accepts field-installed electric resistance heater kits. Compatible outdoor equipment is rated for R-454B refrigerant. This handler pairs with the Trane RunTru A5AC5048A1000 outdoor condensing unit as part of a documented 15.2 SEER2 system, among other matched outdoor units per AHRI-certified ratings.

Key Features

• 48,000 BTU/h capacity covering 3 to 4 ton matched outdoor equipment
• ECM blower motor with eight speed taps for precise airflow and static pressure performance
• All-aluminum plate-fin indoor coil rated for R-454B refrigerant with TXV metering
• Four-way convertible cabinet for upflow, downflow, or horizontal left/right orientation
• 24-volt system control compatible with both air conditioning and heat pump outdoor units
• Field-installed electric resistance heater kits available for added heating capacity

Compatibility

Designed for use with R-454B matched outdoor condensing units and heat pumps in AHRI-certified split-system configurations. Documented system match includes the Trane RunTru A5AC5048A1000 outdoor unit at 15.2 SEER2. Compatible field-installed heater kits include BAYHTR1504BRK, BAYHTR1504LUG, BAYHTR1505BRK, BAYHTR1505LUG, BAYHTR1508BRK, BAYHTR1508LUG, BAYHTR1510BRK, BAYHTR1510LUG, BAYHTR3510LUG, BAYHTR1517BRK, BAYHTR3517LUG, BAYHTR1523BRK, and BAYHTR1525BRK.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer installation, operation, and maintenance manual. Shut off all electrical power to the system before making any electrical or refrigerant connections. TXV-metered coils require proper refrigerant line brazing using the 7/8-inch gas line connection specified for this model. Field-installed heater kits must be matched to the correct speed tap settings per the published heater kit compatibility table before energizing the unit.

Technical Specifications

• Cooling Capacity: 48,000 BTU/h (3 to 4 ton)
• Voltage / Phase / Frequency: 208-230V / 1 / 60 Hz
• Blower Motor Type: ECM
• Motor Horsepower: 3/4 HP
• Motor Full Load Amps: 6.0 amps
• Number of Blower Speed Taps: 8
• Refrigerant Type: R-454B
• Metering Device: TXV
• Coil Type: All-aluminum plate fin
• Coil Rows / Fins Per Inch: 4 rows / 12 FPI
• System Control Voltage: 24 volts
• Cabinet Poise: 4-way convertible (upflow, downflow, horizontal left, horizontal right)
• Gas Line Braze Connection: 7/8 inches
• Liquid Line Size: 3/8 inches
• Cabinet Height (A): 51.27 inches
• Cabinet Width (B): 23.50 inches
• Cabinet Depth (C): 21.50 inches

Standard Information

• Brand: Trane
• Manufacturer Part Number: A5AHC006A1D30A
