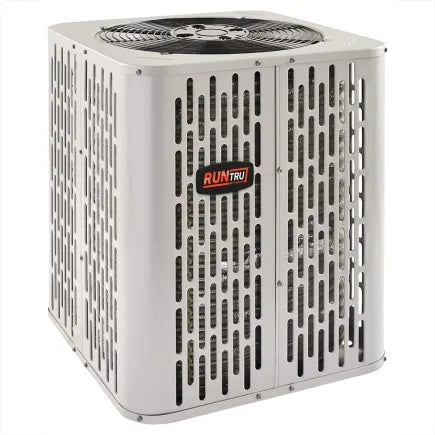

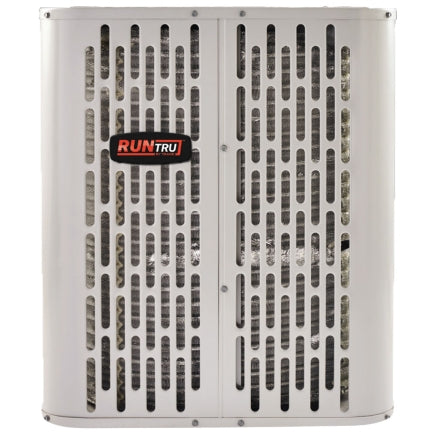

Trane A5AC5036A1000A RunTru Central Air Conditioner Condenser 3 Ton

Product Description

The TRANE A5AC5036A1000A RunTru Central Air Conditioner Condenser provides 3 tons of cooling capacity. This single-stage compressor unit is designed for central split systems and uses R-454b refrigerant. It operates at 240V and offers a cooling efficiency of 16 SEER2, suitable for an average coverage area of 1,500 - 1,800 Sq Ft.

• Features a single-stage compressor.
• Utilizes R-454b refrigerant.
• Offers 16 SEER2 cooling efficiency.

Product Highlights

Efficient cooling for central split systems with a focus on performance and durability.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: A5AC5036A1000A

Technical Specifications

• Model: A5AC5036A1000
• UPC: 612461121851
• Product Height (in): 32.6
• Avg Coverage Area: 1,500 - 1,800 Sq Ft
• Product Length (in): 29.8
• Compressor: Single Stage
• Product Width (in): 29.8
• Cooling Capacity: 3 Ton
• Electrical Phase: 1-Phase
• Line Set Connection Type: Sweat
• Liquid Line Size: 5/16 inch
• Max Overcurrent Protection: 15 amps
• Refrigerant: R-454b
• Cooling Efficiency (SEER2): 16
• Suction Line Size: 3/4 inch
• System Application Type: Central Split Systems
• Voltage: 240
• Region Compatibility: Nationwide
