Trane A5AC5036A1000B Split System Air Conditioner 36000 Btu/h 3 Ton 15.2 SEER2 Single Stage R-454B

Product Description

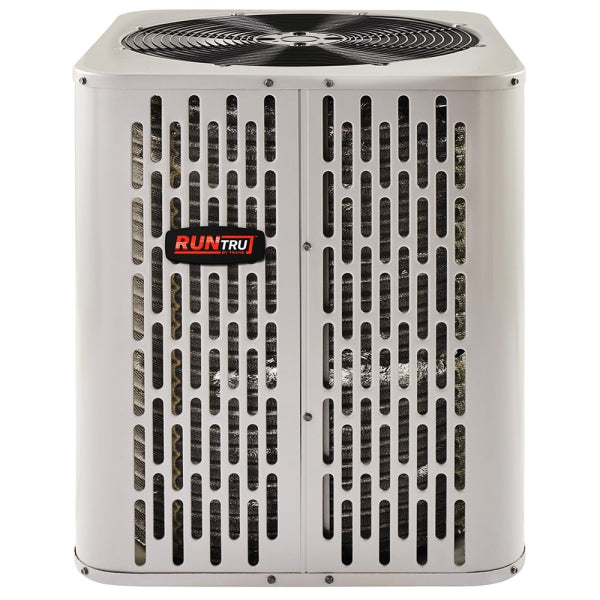

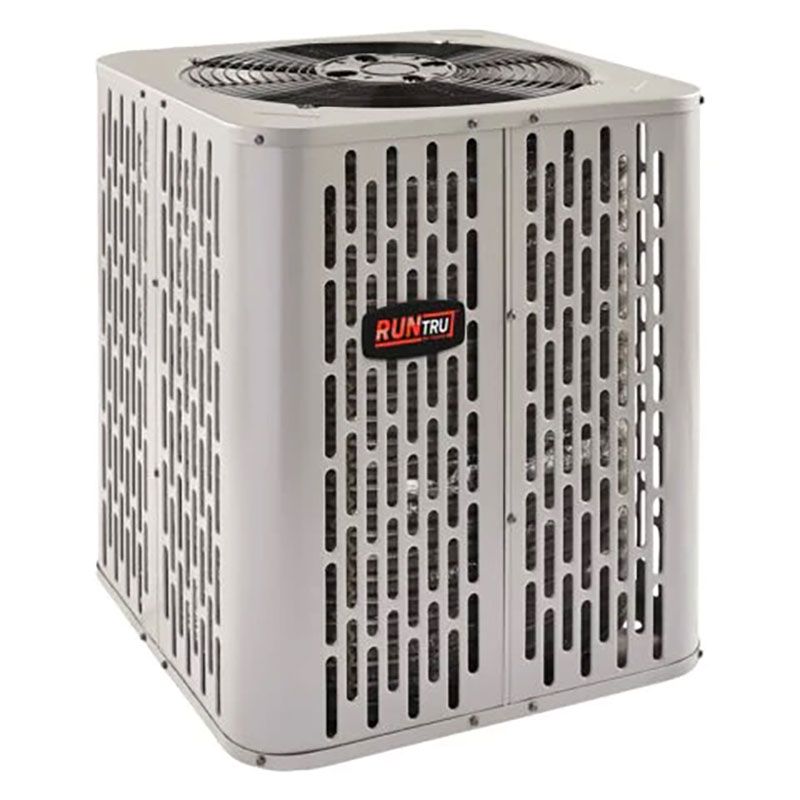

The Trane A5AC5036A1000B is a single-stage, split-system air conditioner rated at 36,000 BTU/h (3 tons) and designed for residential cooling applications. Built under the RunTru by Trane line, it operates on R-454B refrigerant and features an all-aluminum coil construction for corrosion resistance and long service life. The unit runs on a 208-230/1/60 electrical configuration with 24-volt system control, a 30-amp fuse rating, and a maximum amp draw of 30.0 amps. Efficiency is rated at 15.2 SEER2, meeting current federal minimum efficiency standards. Licensed HVAC technicians install and commission this condensing unit as part of a matched split system.

The A5AC5036A1000B is suited for residential split-system installations where a 3-ton cooling capacity is required. It pairs with a compatible air handler or coil-and-furnace combination to complete the system. Sound power level is rated at 71 dB(A) A-weighted, making it appropriate for installations with typical residential setback requirements. The unit is part of the A5AC5 model series, which spans multiple capacity configurations. Consult Trane submittal documentation to confirm matched indoor unit compatibility before ordering.

Key Features

• 36,000 BTU/h (3-ton) single-stage cooling capacity
• 15.2 SEER2 efficiency rating meets current federal standards
• R-454B refrigerant — lower global warming potential than R-410A
• All-aluminum coil construction for durability and corrosion resistance
• 24-volt system control interface for standard thermostat compatibility
• Rated sound power level of 71 dB(A) per AHRI Standard 270-2008

Compatibility

The A5AC5036A1000B is part of the RunTru by Trane A5AC5 split-system air conditioner series and is designed to be paired with a compatible R-454B indoor air handler or coil assembly. Confirm matched-system pairings using Trane submittal data document ODR-PSD033B-EN before finalizing the equipment selection.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and EPA Section 608 refrigerant handling regulations. De-energize and lock out all electrical power at the disconnect before making any connections or service checks. R-454B is an A2L mildly flammable refrigerant — follow manufacturer handling guidelines and applicable codes when working with this refrigerant type. Verify that the matched indoor unit and refrigerant line set are rated and sized for R-454B service before charging the system.

Technical Specifications

• Cooling Capacity: 36,000 BTU/h (3 tons)
• SEER2: 15.2
• Refrigerant: R-454B
• Voltage: 208-230 volts
• Phase: Single Phase
• Frequency: 60 Hz
• System Control Voltage: 24 volts
• Fuse Rating: 30 amps
• Maximum Amps: 30.0 amps
• Number of Stages: Single Stage
• Coil Material: All Aluminum
• Sound Power Level: 71 dB(A) (AHRI Standard 270-2008)

Standard Information

• Brand: Trane
• Manufacturer Part Number: A5AC5036A1000B
