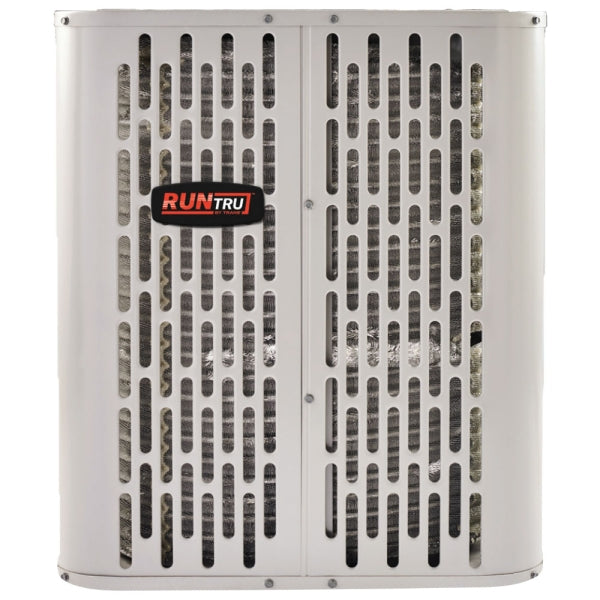

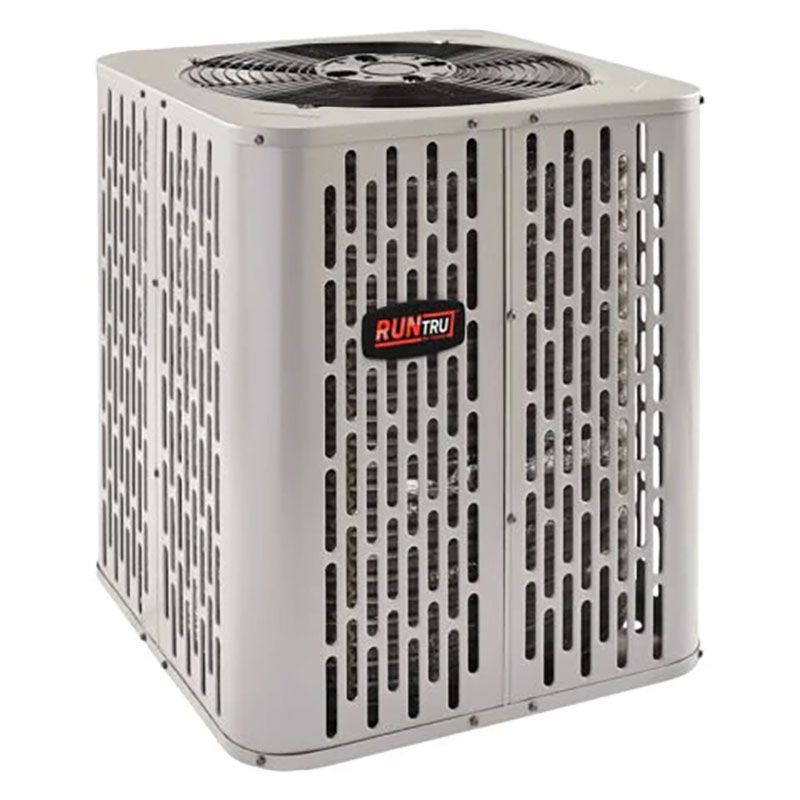

Trane A5AC5024A1000 Split System Air Conditioner Condenser 2 Ton 24000 Btu/h 15.2 SEER2 R-454B Single Stage

Product Description

The Trane A5AC5024A1000 is a single-stage, outdoor split system air conditioner condenser built under the RunTru by Trane product line. It delivers 24,000 BTU/h of cooling capacity at a 15.2 SEER2 efficiency rating and operates on R-454B refrigerant, the low-global-warming-potential successor to R-410A. The unit uses an all-aluminum coil construction and runs on a 208-230 volt, single-phase, 60 Hz power supply with 24-volt system control. Licensed HVAC technicians install and commission this unit as part of a ducted central cooling system paired with a compatible indoor air handler.

This condenser is suited for residential ducted central cooling applications requiring a 2-ton system. It is designed to work as part of a split system configuration and is factory charged with R-454B refrigerant. The unit is documented in Trane product submittal data alongside the A5AC5018A1000A, A5AC5030A1000A/B, A5AC5036A1000A/B, A5AC5042A1000A/B, A5AC5048A1000A/B, and A5AC5060A1000A/B models within the same series. A compatible indoor unit such as the A5AHC002A1B30A air handler is required to complete the system.

Key Features

• 24,000 BTU/h cooling capacity — nominal 2-ton output
• 15.2 SEER2 efficiency rating for compliance with current federal minimum standards
• R-454B refrigerant — low-GWP alternative to R-410A
• All-aluminum coil construction for corrosion resistance and durability
• Single-stage operation with 24-volt system control interface
• A-weighted sound power level of 71 dB(A) rated per AHRI Standard 270-2008

Compatibility

Designed for use in ducted residential split system configurations. Compatible indoor unit documented in product literature includes the A5AHC002A1B30A convertible air handler. This condenser is part of the A5AC5 product family series by RunTru by Trane.

Installation Notes

Installation must be performed by a licensed HVAC technician holding the appropriate EPA Section 608 certification for handling regulated refrigerants, including R-454B. Disconnect and lock out all electrical power to the system before making any electrical or refrigerant connections. The unit must be set on a level, stable pad and positioned with adequate clearance per the manufacturer's installation guidelines and local mechanical codes. Do not energize the unit until all refrigerant piping, electrical connections, and control wiring are complete and verified.

Technical Specifications

• Cooling Capacity: 24,000 BTU/h
• Efficiency Rating: 15.2 SEER2
• SEER2 Range (minimum): 14.3 SEER2
• Refrigerant Type: R-454B
• Power Supply: 208-230 volts, 1 phase, 60 Hz
• System Control Voltage: 24 volts
• Coil Construction: All aluminum
• Sound Power Level: 71 dB(A) per AHRI Standard 270-2008
• Unit Height (A dimension): 32.625 inches
• Unit Width (B dimension): 29.75 inches
• Configuration: Single stage, outdoor condensing unit
• Product Family Series: A5AC5

Standard Information

• Brand: Trane
• Manufacturer Part Number: A5AC5024A1000
