Trane A5AC4060A1000 Central Air Conditioner Condenser 60000 Btu/h 5 Ton 14.3 SEER2

Product Description

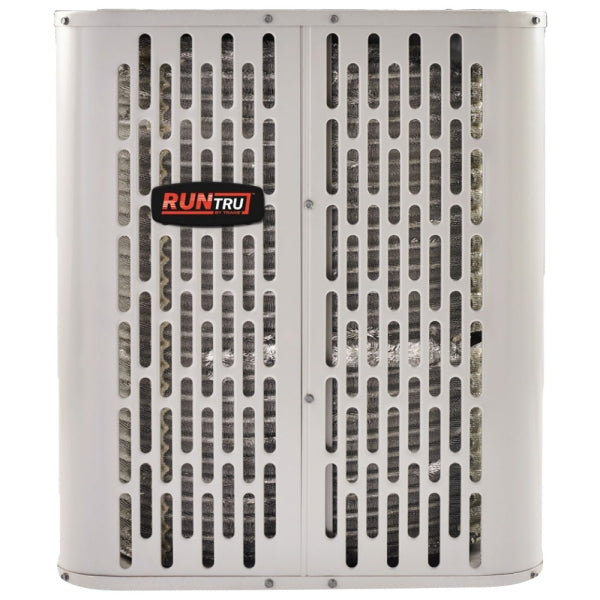

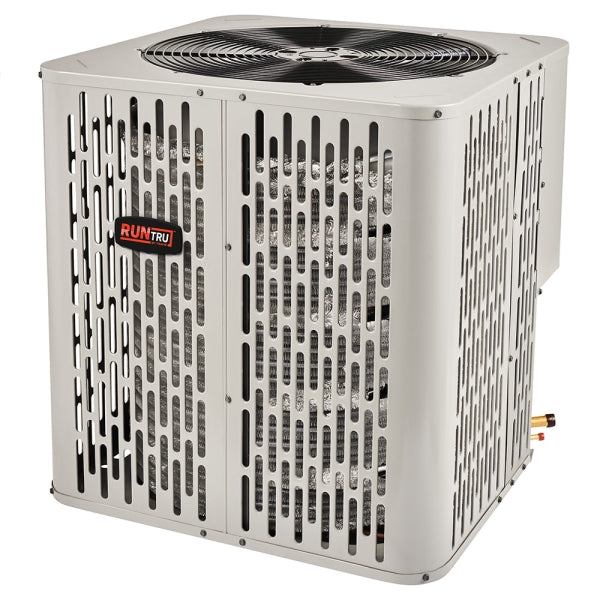

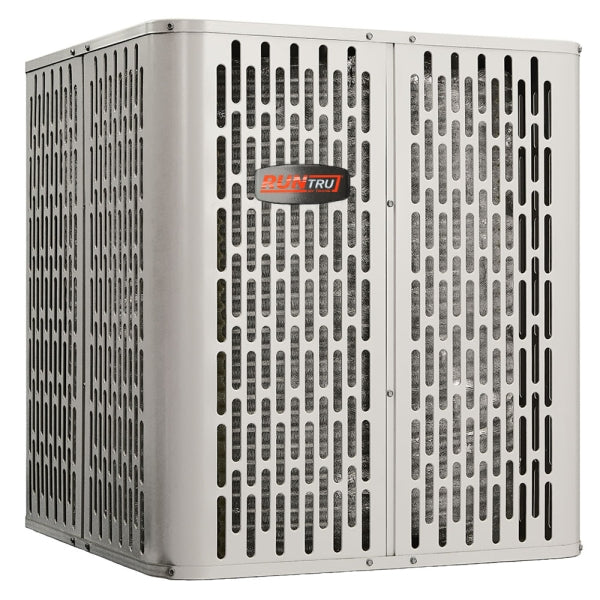

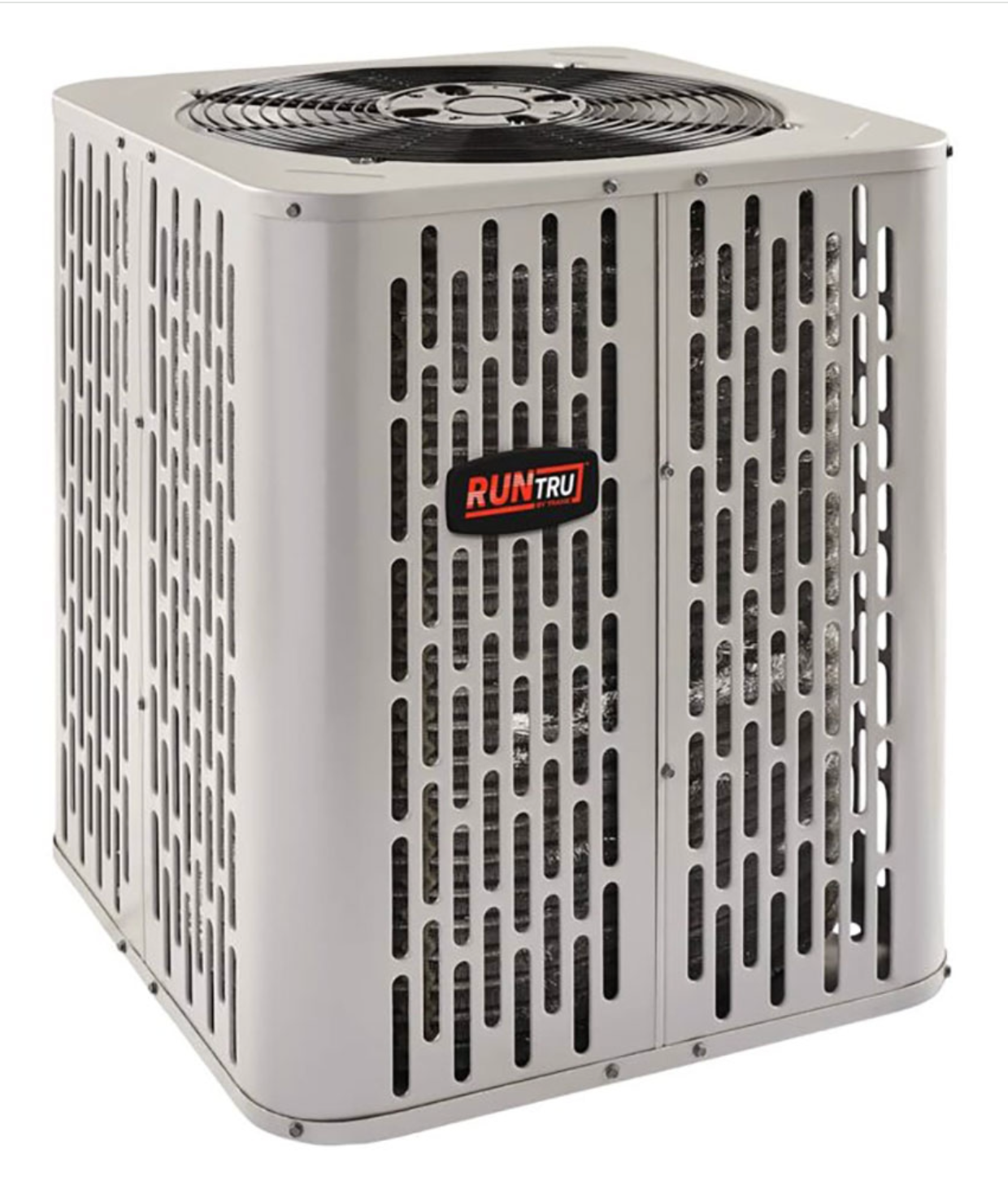

The Trane A5AC4060A1000 is a 5-ton (60,000 BTU/h) single-stage central air conditioner condensing unit rated at 14.3 SEER2. Part of the RunTru by Trane product line, this outdoor unit is designed for residential split-system cooling applications. It operates on a 208-230V/1PH/60Hz power supply and is built to perform at outdoor ambient temperatures up to 115 degrees F. The unit ships factory-charged for the condensing unit, 10 feet of connecting line, and the smallest rated indoor evaporative coil match. Licensed HVAC technicians handle installation and commissioning of this equipment.

This condensing unit is suited for residential split-system cooling installations requiring 5-ton capacity. It pairs with AHRI-certified air handlers and furnace coils. Cooling capacities are matched across a wide selection of indoor coil and air handler combinations, giving installing contractors flexibility in system design. The unit is certified to UL 60335-2-40, confirming compliance with recognized safety standards for electrically operated household and similar cooling appliances.

Key Features

• 60,000 BTU/h (5-ton) single-stage cooling capacity
• 14.3 SEER2 efficiency rating for compliance with current federal minimum efficiency standards
• Factory refrigerant charge sized for the condensing unit plus 10 feet of tested connecting line
• Rated for outdoor ambient operation up to 115 degrees F
• Compatible with AHRI-certified indoor coil and air handler combinations
• UL 60335-2-40 certified

Compatibility

Designed for use in residential split-system cooling configurations paired with AHRI-certified air handlers and furnace coils. Specific matched indoor equipment should be verified against current AHRI certified combination ratings prior to installation.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local codes and applicable sections of the IFGC and NEC. Shut off all electrical power to the system before making any connections or accessing internal components. The refrigerant circuit must be leak-checked and fully evacuated before opening service valves. Do not operate the unit or open service valves until all line-set and electrical connections have been verified and the system has been properly commissioned.

Technical Specifications

• Cooling Capacity: 60,000 BTU/h (5 Ton)
• SEER2 Rating: 14.3
• Power Supply: 208-230V / 1PH / 60Hz
• Maximum Operating Ambient: 115 degrees F
• Height: 44.625 inches
• Width: 34.25 inches
• Depth: 22.875 inches
• Weight: 252 pounds
• Sound Power Level: 71 dB(A)
• Safety Certification: UL 60335-2-40

Standard Information

• Brand: Trane
• Manufacturer Part Number: A5AC4060A1000
