Trane A5AC4036A1000 3 Ton Single Stage Air Conditioner Condenser 36000 Btu/h 14.3 SEER2 R454B

Product Description

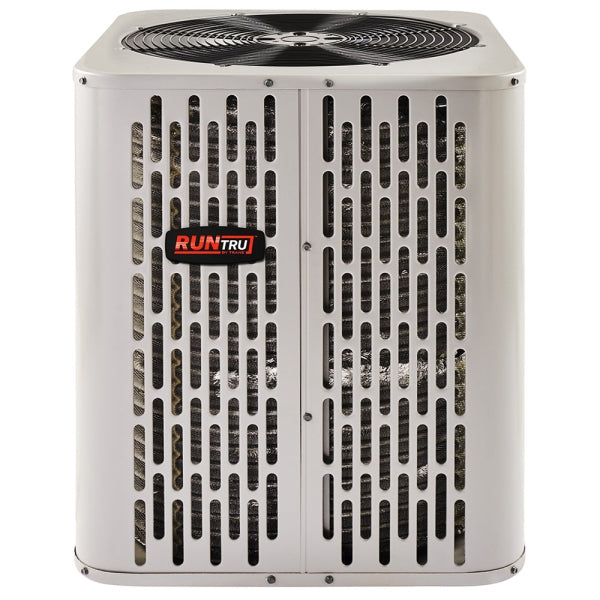

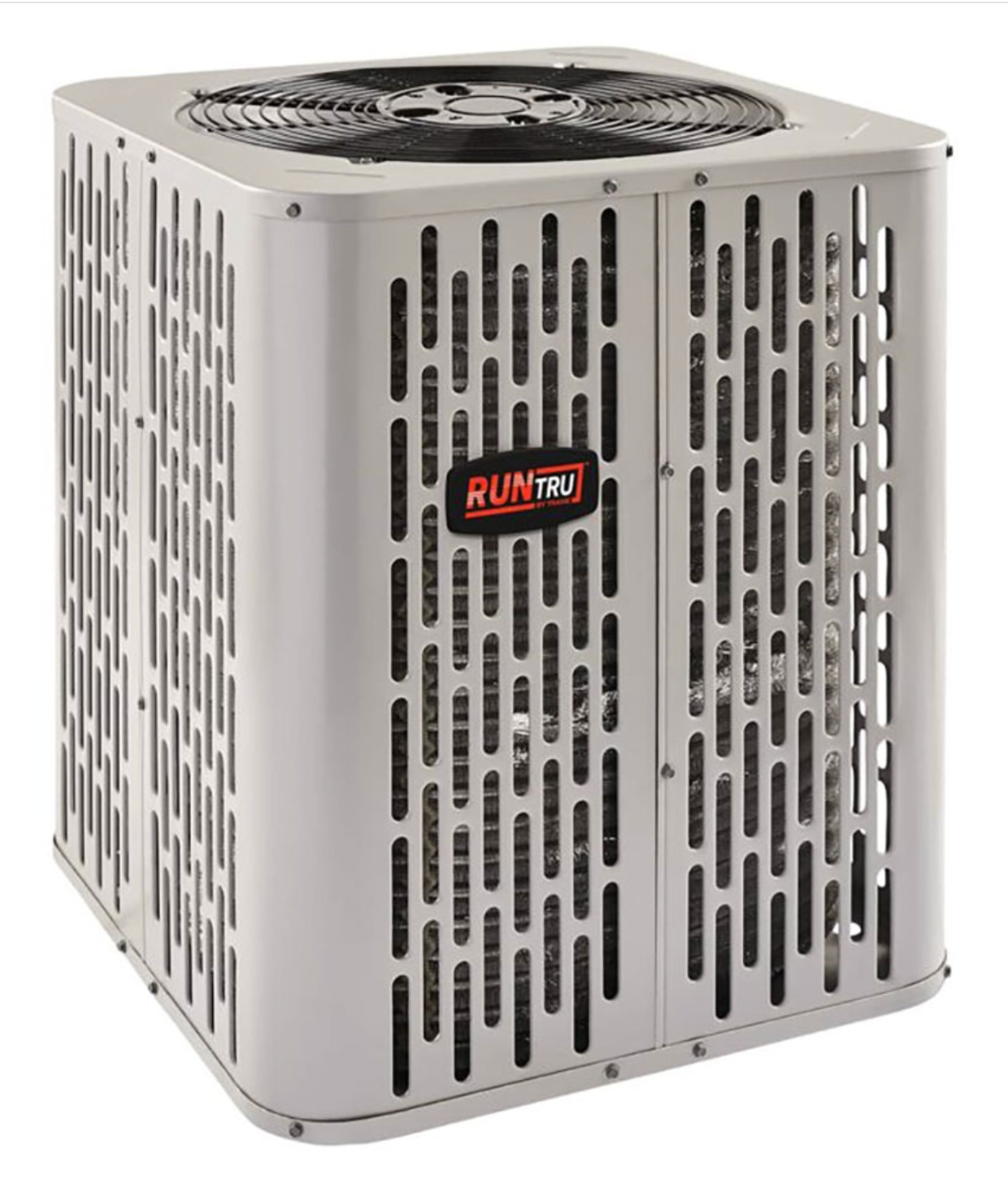

The Trane A5AC4036A1000 is a 3-ton, single-stage outdoor air conditioner condensing unit from the RunTru by Trane product line. It delivers 36,000 BTU/h of cooling capacity at 14.3 SEER2 efficiency and operates on R-454B refrigerant, a lower global warming potential alternative to R-410A. Rated for outdoor ambient temperatures up to 115 degrees F, this unit is built for reliable residential cooling in demanding climates. The unit ships factory-charged with refrigerant for the outdoor section plus 10 feet of tested connecting line and the smallest rated indoor evaporative coil match. Licensed HVAC technicians handle installation and commissioning.

The A5AC4036A1000 is designed for residential split-system cooling applications. It pairs with a separate indoor air handler or furnace coil to form a complete split system. Cooling capacities are matched with a wide selection of AHRI-certified air handlers and furnace coils. The unit is certified to UL 60335-2-40 and is suitable for standard single-stage thermostat control. Typical installations are in single-family residential settings where a cost-effective, code-compliant AC-only condenser is needed.

Key Features

• 3-ton cooling output at 36,000 BTU/h with 14.3 SEER2 efficiency rating
• R-454B refrigerant with lower global warming potential compared to R-410A
• Single-stage operation for straightforward thermostat integration
• Factory-charged for the outdoor unit plus 10 feet of connecting line
• Rated for operation up to 115 degrees F outdoor ambient temperature
• Sound power level of 71 dB(A); certified to UL 60335-2-40

Compatibility

Designed for use with AHRI-certified indoor air handlers and furnace coils in residential split-system configurations. Specific matched indoor units must be verified through AHRI or Trane RunTru system match documentation for rated efficiency confirmation.

Installation Notes

Installation must be performed by an EPA 608-certified HVAC technician familiar with R-454B refrigerant handling procedures. Disconnect and lock out all electrical power before making any wiring or refrigerant connections. Follow all applicable local mechanical and electrical codes, including NEC requirements for disconnect sizing and wiring methods. Do not operate the unit below the rated minimum ambient cooling range of 55 degrees F.

Technical Specifications

• Cooling Capacity: 36,000 BTU/h (3 tons)
• SEER2 Rating: 14.3
• EER Rating: 11.7
• Refrigerant Type: R-454B
• Stages: Single
• Maximum Fuse Rating: 18 amps
• Sound Power Level: 71 dB(A)
• Cooling Operating Range: 55 degrees F to 115 degrees F outdoor ambient
• Height: 32.625 inches
• Width: 29.75 inches
• Depth: 19.75 inches
• Weight: 161 pounds
• Certification: UL 60335-2-40

Standard Information

• Brand: Trane
• Manufacturer Part Number: A5AC4036A1000
