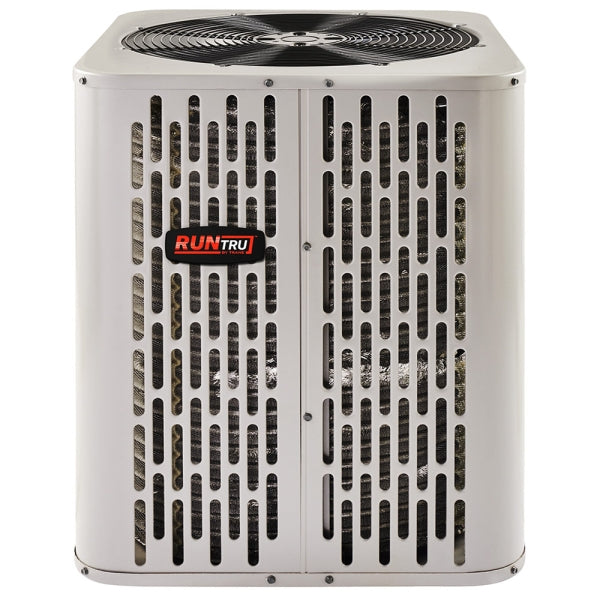

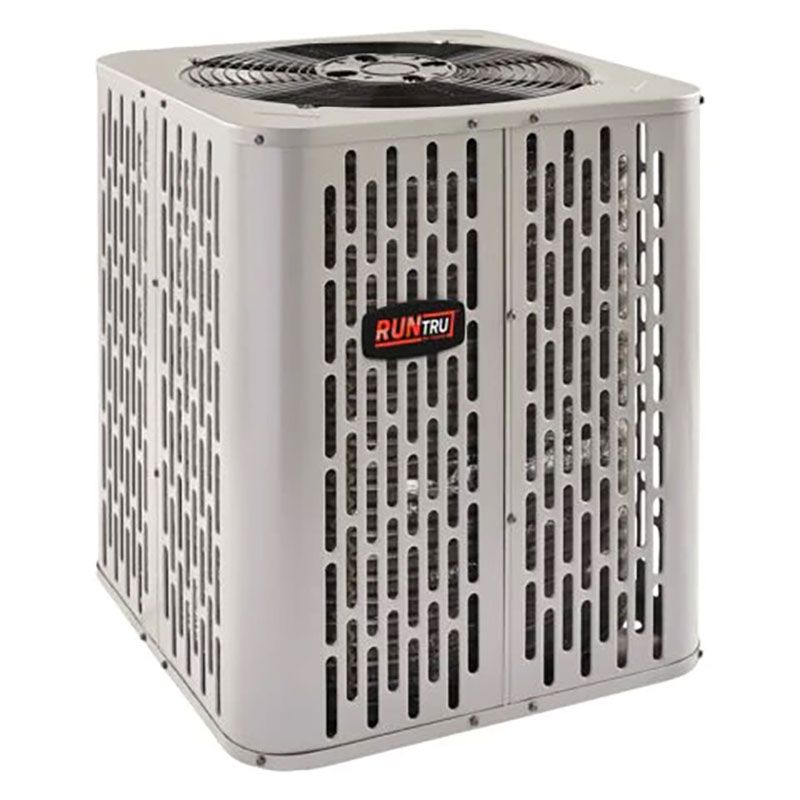

Trane A5AC4024A1000 Air Conditioner Condenser 2 Ton 14.3 SEER2 Single Stage R-454B

Product Description

The Trane A5AC4024A1000 is a 2-ton single-stage air conditioner condensing unit rated at 14.3 SEER2, designed for residential split-system cooling installations. It operates on R-454B refrigerant and delivers 24,000 BTU/h of cooling capacity. The unit is factory-charged for the condensing unit itself plus 10 feet of tested connecting line and the smallest rated indoor evaporative coil match. Built for durability and efficient operation, it carries an EER rating of 11.7 and is rated for outdoor ambient temperatures up to 115 degrees F. Licensed HVAC technicians handle installation and commissioning of this condensing unit.

The A5AC4024A1000 is suited for residential cooling applications requiring a 2-ton, single-stage outdoor condensing unit. It is part of the RunTru by Trane product line and is intended for pairing with compatible air handlers or furnace coils that are AHRI certified. Cooling capacities are matched with a wide selection of AHRI-certified indoor coil and air handler combinations. The unit is certified to UL 60335 standards and operates at a sound power level of 71 dB(A), making it appropriate for standard residential lot setups where noise is a consideration.

Key Features

• 2-ton cooling capacity at 24,000 BTU/h for residential split systems
• 14.3 SEER2 efficiency rating using R-454B low-GWP refrigerant
• Single-stage operation for straightforward system control and servicing
• Rated for outdoor ambient temperatures up to 115 degrees F
• Factory-charged for condensing unit and 10 feet of connecting line
• A-weighted sound power level of 71 dB(A) per AHRI Standard 270-2008

Compatibility

Designed to pair with AHRI-certified indoor air handlers and furnace coils in residential split-system configurations. Consult AHRI directory for verified matched indoor coil combinations specific to this condensing unit.

Installation Notes

Installation must be performed by a licensed HVAC technician certified to handle refrigerants under EPA Section 608 regulations. Shut off all electrical power to the system before making any connections. Follow all local mechanical codes and manufacturer installation guidelines for refrigerant line sizing, service valve operation, and unit clearances. Do not operate the unit without verifying proper refrigerant charge and indoor coil match per the submittal documentation.

Technical Specifications

• Cooling Capacity: 24,000 BTU/h (2 tons)
• SEER2 Rating: 14.3
• EER Rating: 11.7
• Refrigerant: R-454B
• Stages: Single
• Frequency: 60 Hz
• Fuse Rating: 25 A
• Max Amps: 25.0 A
• Height: 32.6 inches
• Width: 29.8 inches
• Depth: 29.8 inches
• Sound Power Level: 71 dB(A)
• Max Outdoor Ambient: 115 degrees F

Standard Information

• Brand: Trane
• Manufacturer Part Number: A5AC4024A1000
