Trane A5AC4018A1000 Split System Air Conditioner 18000 Btu 14.3 SEER2 1.5 Ton R-454B

Product Description

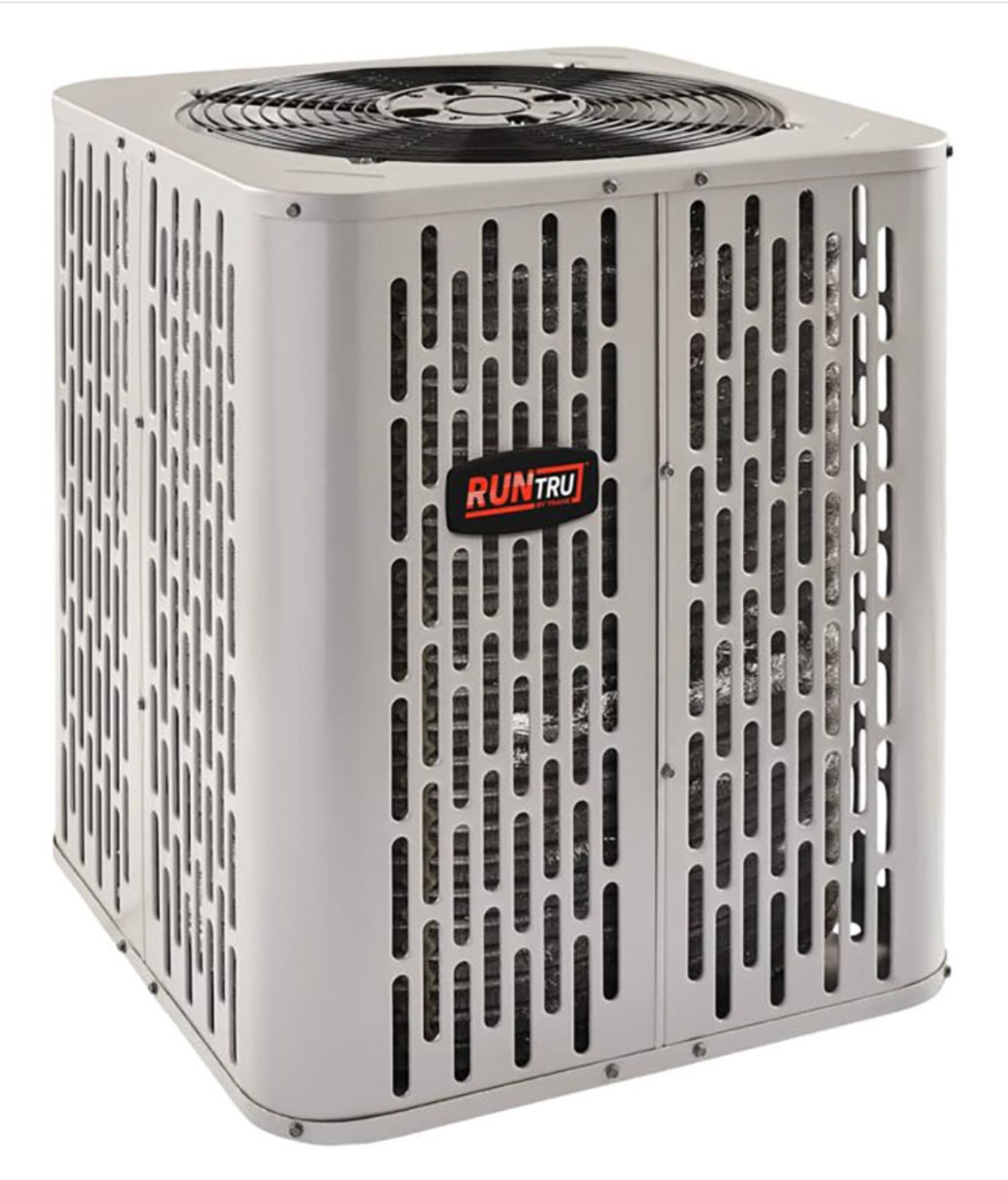

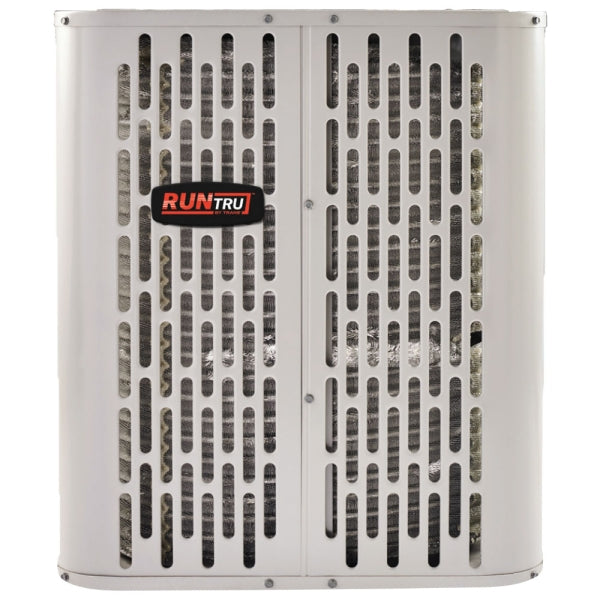

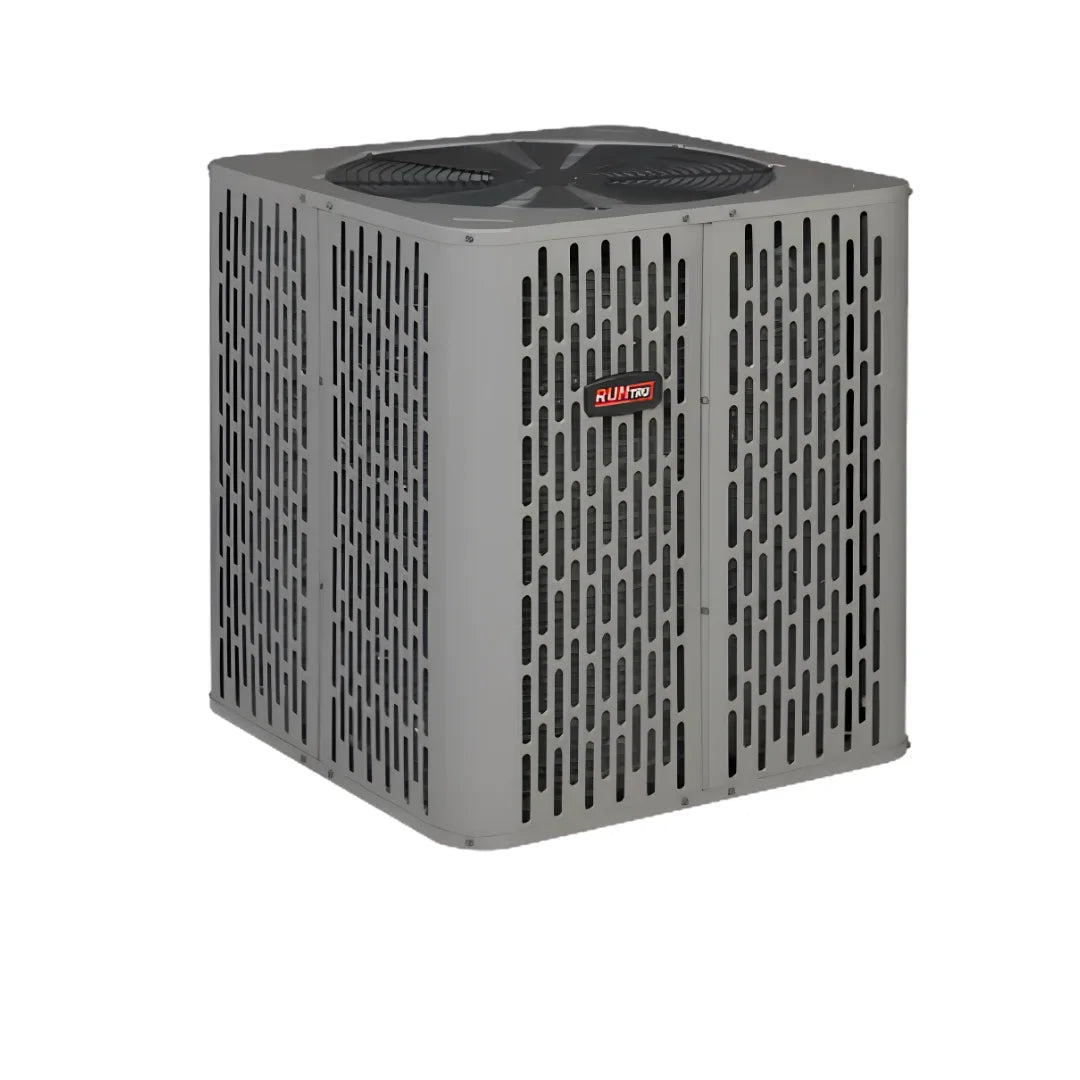

The Trane A5AC4018A1000 is a 1.5-ton single-stage split system air conditioner condensing unit built under the RunTru by Trane product line. It operates on R-454B refrigerant and carries a 14.3 SEER2 efficiency rating, making it compliant with current federal minimum efficiency standards. The unit runs on a 208-230V, single-phase, 60 Hz power supply with 24-volt system control. Cooling capacity is 18,000 BTU/h. The all-aluminum coil construction resists corrosion in typical outdoor environments. Licensed HVAC technicians install and commission this unit as the outdoor condensing section of a matched split system.

The A5AC4018A1000 is designed for residential central cooling applications where a compact 1.5-ton system capacity is appropriate. It pairs with a compatible indoor evaporator coil and air handler or furnace to form a complete split system. It is suited for single-zone residential installs requiring a low-refrigerant-GWP solution that meets current regulatory requirements for new equipment. This condensing unit is part of the RunTru by Trane value-tier lineup, positioned for straightforward replacement and new-construction installs in smaller conditioned spaces.

Key Features

• 14.3 SEER2 seasonal efficiency rating meets current federal standards
• R-454B refrigerant with lower global warming potential than R-410A
• All-aluminum coil construction for corrosion resistance in outdoor environments
• Single-stage cooling operation for straightforward system control
• 24-volt system control compatible with standard thermostat wiring
• 208-230V, single-phase, 60 Hz power supply fits typical residential electrical service

Compatibility

Designed for use as the outdoor condensing unit in a matched residential split system configuration. Compatible indoor components must be rated for R-454B refrigerant. This unit has been referenced in bundle configurations with the Trane A801X040AM3TD furnace and Trane 5MXCB004AC6HCA evaporator coil. Consult Trane matchup documentation to confirm approved indoor coil and air handler pairings before installation.

Installation Notes

Installation must be performed by an EPA Section 608 certified HVAC technician authorized to handle R-454B refrigerant. Disconnect and lock out all electrical power before connecting or servicing the unit. The condensing unit must be mounted on a level pad with adequate clearance on all sides per the manufacturer installation instructions and applicable local mechanical codes. Do not braze or pressure-test the system without verifying compatibility of all components with R-454B refrigerant and its associated pressure ratings.

Technical Specifications

• Cooling Capacity: 18,000 BTU/h
• Nominal Tonnage: 1.5 tons
• SEER2 Rating: 14.3
• EER Rating: 11.7
• Refrigerant Type: R-454B
• Voltage: 208-230 volts, 1-phase, 60 Hz
• System Control Voltage: 24 volts
• Maximum Fuse/Breaker: 20 amps
• Maximum Amperage: 20 amps
• Coil Material: All aluminum
• Product Stage: Single stage

Standard Information

• Brand: Trane
• Manufacturer Part Number: A5AC4018A1000
