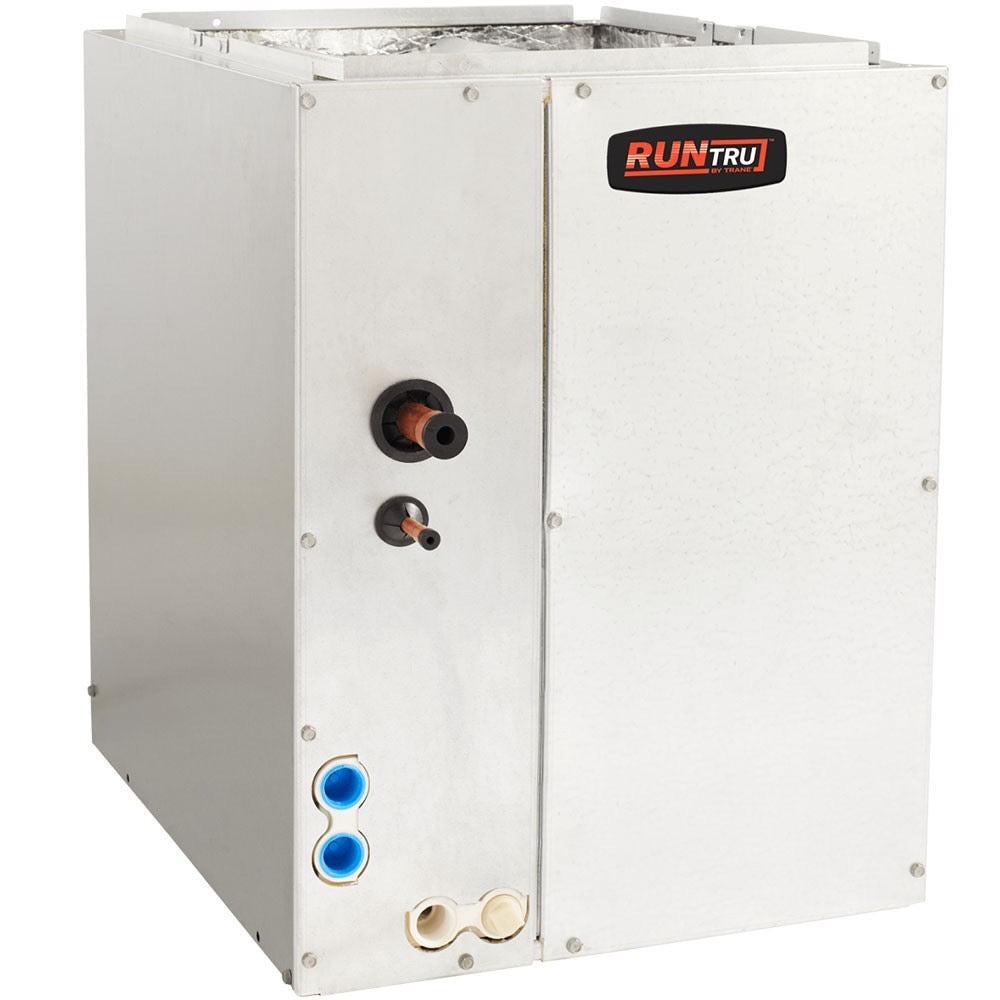

Trane A4MXC4248AC6HA Evaporator Coil 3.5 to 4 Ton 21 inches Cabinet

Product Description

The TRANE A4MXC4248AC6HA evaporator coil provides an efficient and affordable solution for home comfort. Compatible with both cooling and heat pump systems, this model has a 3.5 to 4 ton capacity and uses R-410A refrigerant. The coil is made of aluminum and can be moved in multiple positions. The casing is made of galvanized steel and is fully insulated.

• Compatible with both cooling and heat pump systems
• Uses R-410A refrigerant
• Made completely of aluminum

Product Highlights

The TRANE A4MXC4248AC6HA evaporator coil is AHRI certified, designed and tested in the USA, and manufactured in the state of Georgia.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: A4MXC4248AC6HA
• Country of Origin: USA

Technical Specifications

• Model: A4MXC4248AC6HA
• UPC: 850017455757
• Product Height (in): 26.9
• Air Flow Direction: Horizontal, Vertical
• Product Length (in): 21.5
• Cooling Capacity: 48,000 BTU
• Product Width (in): 21
• Line Set Connection Type: Sweat
• Liquid Line Size: 3/8 inch
• Refrigerant: R-410a
• Suction Line Size: 7/8 inch
• Additional Information: Standard Efficiency, Orifice Refrigerant Control
• BTU Rating: 42,000 - 48,000 Btu/hr
• CFM Rating: 1,400 - 1,600 cfm
• Coil Type: Cased-A Coil
• Configuration: Multi-Position
• Connection Type: Brazed
• Drain Pan Size: 3/4 in
• Enclosure Type: Cased
• Face Area: 6 sq-ft
• Finish: Galvanized
• Material: Aluminum
• Metering Device: Orifice
• Number of Rows: 3
• Refrigerant Type: R-410A
• Series: A4MX
• Tonnage: 3.5-4.0 Ton
• Width: 21.0 in
• Connection Size: 3/8 in, 7/8 in
