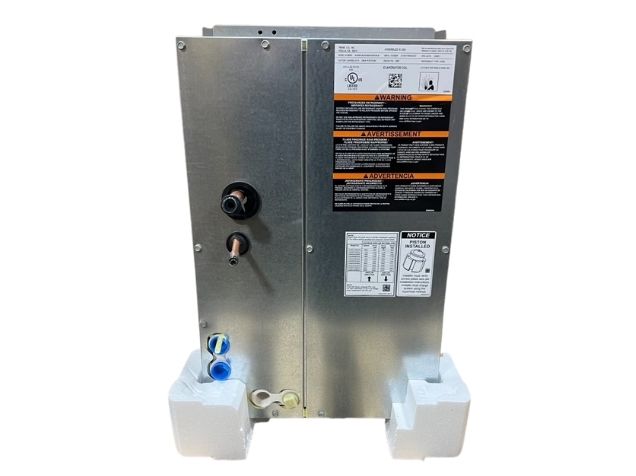

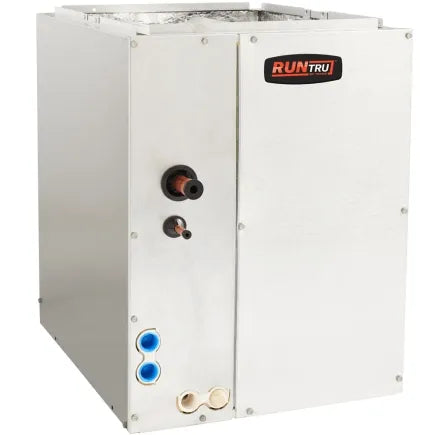

Trane A4MXA3036AC6HA RunTru Evaporator Coil 2.5 to 3 Ton (14.5 inches Cabinet)

Product Description

The TRANE A4MXA3036AC6HA RunTru Evaporator Coil is a versatile and efficient solution for home comfort, suitable for both cooling and heat pump systems. This model features a 2.5 to 3 ton capacity and uses R-410A refrigerant, which is environmentally friendly. The coil is made of aluminum and can be installed in multiple positions.

• Versatile and can be used with both cooling and heat pump systems
• Uses R-410A refrigerant
• Made entirely of aluminum

Product Highlights

This evaporator coil is AHRI certified, designed, assembled, and tested in the USA, ensuring quality and performance.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: A4MXA3036AC6HA
• Country of Origin: USA

Technical Specifications

• Model: A4MXA3036AC6HA
• UPC: 850017455719
• Product Height (in): 22.5
• Air Flow Direction: Horizontal, Vertical
• Product Length (in): 21.5
• Cooling Capacity: 2.5 Ton, 3 Ton
• Product Width (in): 14.5
• Line Set Connection Type: Sweat
• Liquid Line Size: 3/8 inch
• Refrigerant: R-410a
• Suction Line Size: 3/4 inch
• Additional Information: Standard Efficiency, Orifice Refrigerant Control
• BTU Rating: 18,000 - 30,000 Btu/hr
• CFM Rating: 600 - 1,000 cfm
• Coil Type: Cased-A Coil
• Configuration: Multi-Position
• Connection Type: Brazed
• Drain Pan Size: 3/4 in
• Enclosure Type: Cased
• Face Area: 4.5 sq-ft
• Finish: Galvanized
• Material: Aluminum
• Metering Device: Orifice
• Number of Rows: 2
• Refrigerant Type: R-410A
• Series: A4MX
• Tonnage: 1.5-2.5 Ton
• Width: 14.5 in
• Cabinet Size: 14.5
• Capacity: 3
