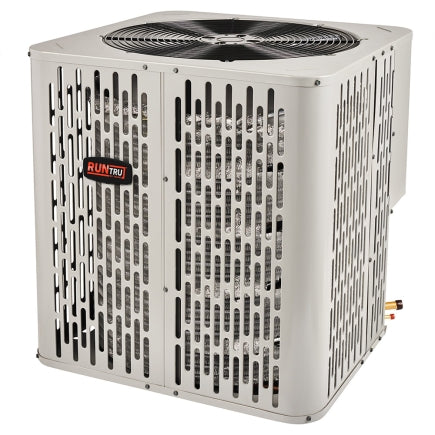

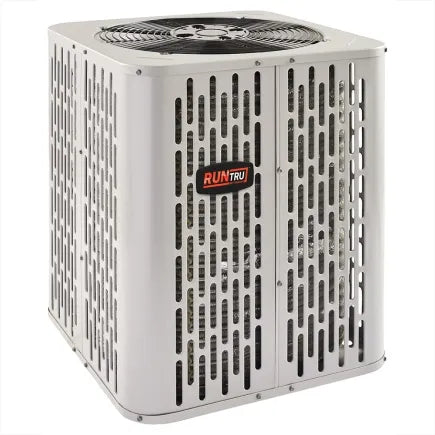

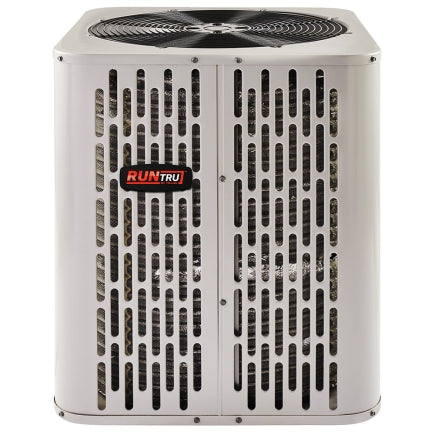

TRANE Trane A4HP5024D1000A RunTru Central Heat Pump Condenser 2 Ton
TRANE Trane A4HP5024D1000A RunTru Central Heat Pump Condenser 2 Ton
TRANE Trane A4HP5024D1000A RunTru Central Heat Pump Condenser 2 Ton

Trane A4HP5024D1000A RunTru Central Heat Pump Condenser 2 Ton

TRANE
Brand: TRANE
SKU: A4HP5024D1000A
Availability: Out Of Stock
LTL Delivery

This product weighs 196 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The TRANE A4HP5024D1000A RunTru Central Heat Pump Condenser offers dependable performance with a SEER2 rating of 15.2. Designed for spaces spanning 1000 to 1200 square feet, it provides versatile installation options for ground-level or rooftop applications. It withstands outdoor conditions up to 115 degrees Fahrenheit and includes safety measures like over-temperature and pressure protection. The robust cabinet is made from heavy-gauge galvanized steel with a weather-resistant powder paint finish.

  • SEER2 rating of 15.2
  • Suitable for spaces spanning from 1000 to 1200 square feet
  • Versatile installation choices for ground-level and rooftop applications

Product Highlights

Durable heat pump condenser with safety features, weather-resistant construction, and versatile installation.

Product Information

Standard Information

  • Brand: TRANE
  • Manufacturer Part Number: A4HP5024D1000A
Technical Specifications
Model
A4HP5024D1000A
UPC
601954744172
AHRI Number
212579308
Product Height (in)
33
Avg Coverage Area
1,000 - 1,200 Sq Ft
Product Length (in)
30
Compressor
Single Stage
Product Width (in)
30
Cooling Capacity
2 Ton
Electrical Phase
1-Phase
Heat Pump Efficiency ( HSPF )
8.1
Heat Pump Efficiency (HSPF2)
8.1
Line Set Connection Type
Sweat
Liquid Line Size
3/8 inch
Max Overcurrent Protection
25 amps
Primary Heating Capacity
20,001 - 25,000 BTU
Refrigerant
R-410a
Cooling Efficiency (SEER2)
15.2
Suction Line Size
3/4 inch
System Application Type
Central Split Systems
Voltage
240
