Trane A4HP4048D1000A 4 ton Heat Pump Condenser 14.3 SEER

Product Description

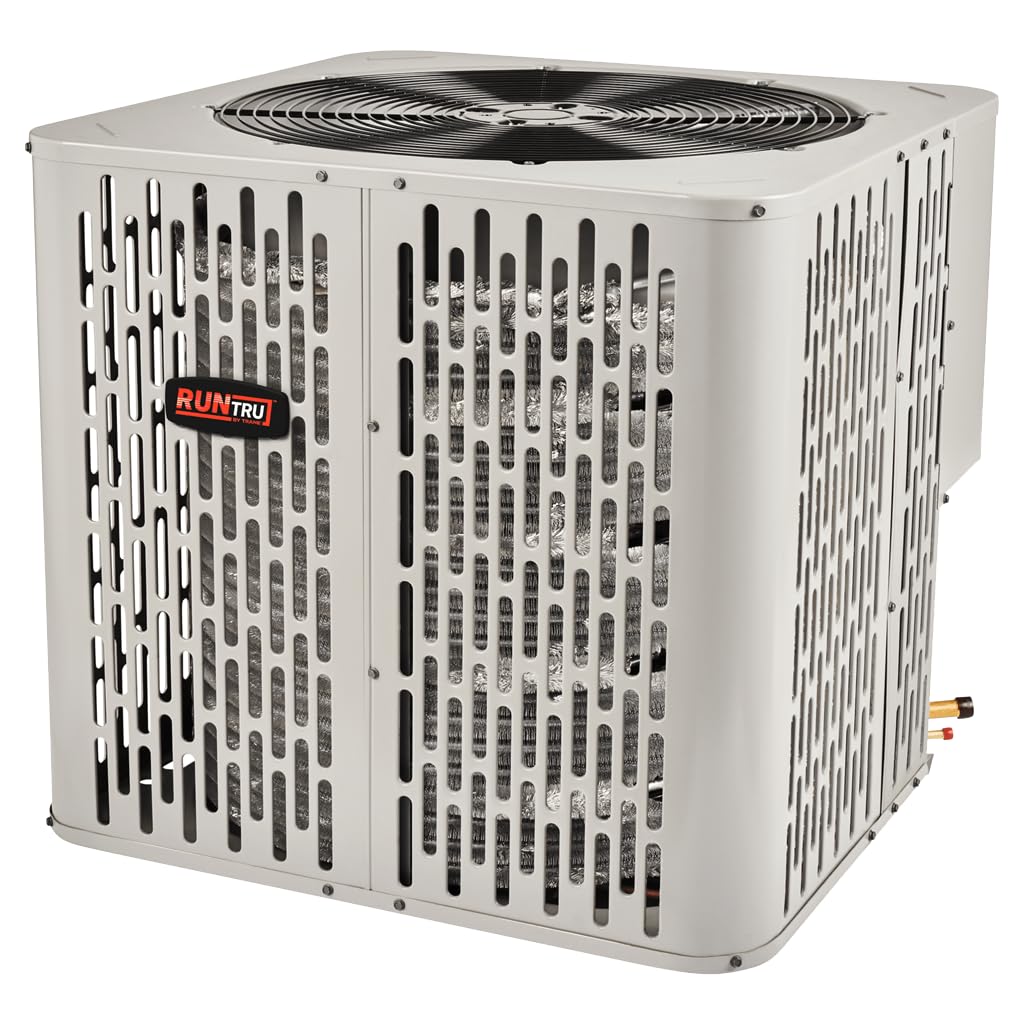

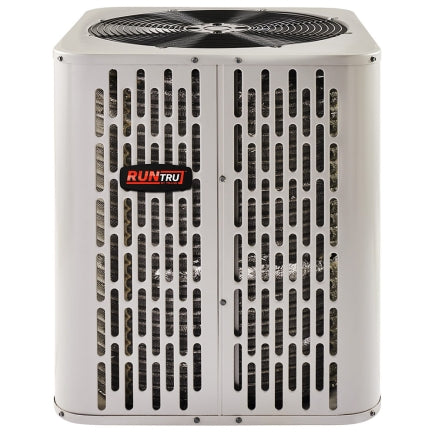

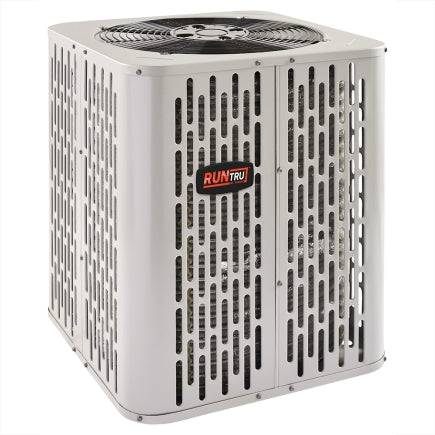

The Trane A4HP4048D1000A is a 4 ton heat pump condenser from the RunTru by Trane series, designed to provide dependable heating and cooling. Built with durable components and tested all-aluminum coils, this heat pump ensures long-lasting performance. It operates quietly with a nominal sound level of 70-75 dB. The unit requires an indoor coil or air handler to function and may need a backup heat strip for temperatures below 35°F.

• Provides dependable heating and cooling with a single-stage compressor.
• Features high-quality, durable components for long-lasting performance.
• Operates quietly, ensuring home comfort.

Product Highlights

This 4 ton RunTru by Trane heat pump condenser offers an efficient and reliable solution for home heating and cooling needs.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: A4HP4048D1000A
• Country of Origin: USA

Technical Specifications

• Compressor Stages: Single
• Nominal Sound: 70-75 db
• Capacity: 4
• Vapor Line: 7/8"
• Brand/Manufacturer: Trane
• HSPF2: 7.8
• Cooling BTU: 48,000
• Heating BTU: 48,000
• Maximum CFM: 4454
• Motor RPM: 850
• Refrigerant: R410A
• SEER2 (Efficiency): 14.3
• Condenser Stages: Single Stage
• Liquid Valve Size: 3/8"
• Suction Valve Size: 7/8"
• Electrical: 208/230v 1 Phase 60Hz
• Max Breaker Size: 40 Amps
• Min. Breaker Size: 26 Amps
• Tonnage: 4 Ton
• Height: 44.6"
• Width: 34.3"
• Depth: 34.3"
• Model: A4HP4048D1000
• UPC: 647535516370
• Avg Coverage Area: 2,000 - 2,400 Sq Ft
• Compressor: Single Stage
• Cooling Capacity: 4 Ton
• Electrical Phase: 1-Phase
• Heat Pump Efficiency (HSPF2): Up to 7.5
• Line Set Connection Type: Sweat
• Liquid Line Size: 3/8 inch
• Max Overcurrent Protection: 40 amps
• Primary Heating Capacity: 45,001 - 50,000 BTU
• Cooling Efficiency (SEER2): 14
• Suction Line Size: 7/8 inch
• System Application Type: Central Split Systems
• Voltage: 240
• Region Compatibility: Nationwide
