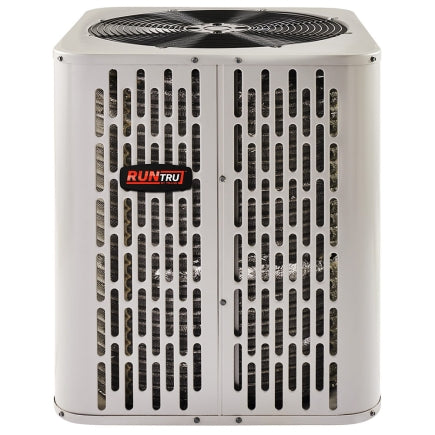

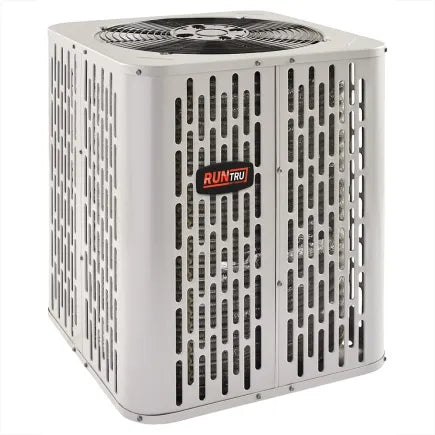

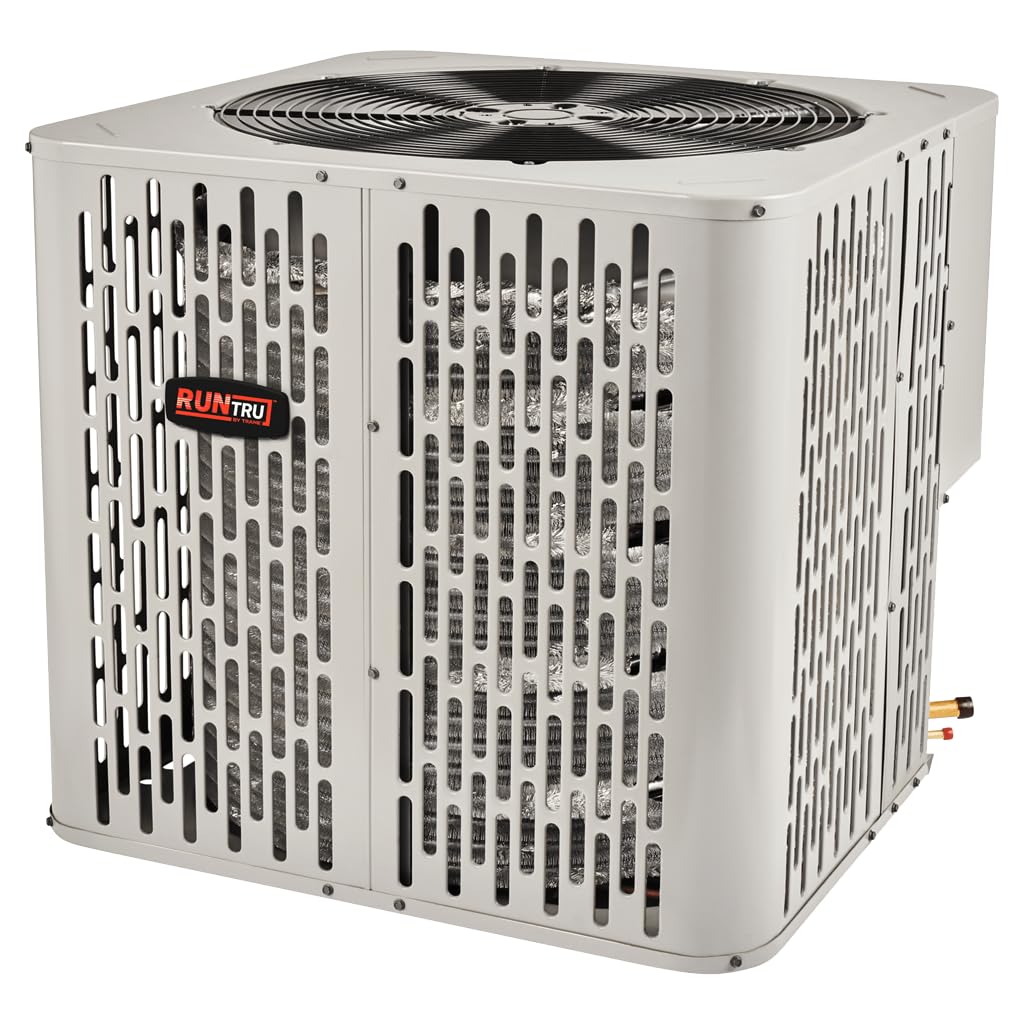

Trane A4HP4030D1000A 2.5 Ton 14.3 Seer Heat Pump Condenser RunTru by Trane

Product Description

The TRANE A4HP4030D1000A is a single-stage heat pump condenser from the RunTru by Trane series, offering dependable heating and cooling. Designed with high-quality, durable components and tested all-aluminum coils, this 2.5-ton unit ensures long-lasting performance and reliability. It operates quietly, with a nominal sound level of 70-75 dB, and is suitable for areas ranging from 1250 to 1500 square feet.

• Nominal sound level of 70-75 dB
• Equipped with all-aluminum coils
• Features a single-stage compressor

Product Highlights

This TRANE RunTru heat pump condenser provides efficient and quiet comfort for your home, with durable components ensuring long-lasting performance.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: A4HP4030D1000A

Technical Specifications

• Compressor Stages: Single Stage
• Nominal Sound: 70-75 db
• Capacity: 2.5
• Vapor Line: 3/4"
• Airflow CFM: 2,820
• BTU Cooling Rating: 30,000 Btu/hr
• Blower Fan Speeds: 1
• Blower Type: Direct Drive
• Charging Specification Subcooling: 10 Deg. F
• Coil Face Area (Sq-Ft): 15.55
• Coil Rows: 1
• Coil Type: All Aluminum
• Compressor Heat: No
• Compressor LRA: 71.3
• Compressor Power Rating: 208-230/1/60
• Compressor RLA: 11.7
• Compressor Type: Scroll
• EER2: 12
• ElecHertz: 60
• ElecPhases: 1
• ElecVolts: 208-230
• FPI: 24
• Factory Charged: Yes
• Factory Installed Start Components: No
• Fan Diameter (In): 23
• Fan Drive: Direct
• Fan Motor FLA: 0.64
• Fan Type: Propeller
• Full Octave Sound Power[dB]: 77 at 63 Hz, 72 at 125 Hz, 68 at 250 Hz, 68 at 500 Hz, 69 at 1000 Hz, 60 at 2000 Hz, 53 at 4000 Hz, 47 at 8000 Hz
• HSPF2: 7.5
• Line Size Gas: 3/4
• Line Size Liquid: 3/8
• Liquid Line (OD): 3/8 in
• MCA: 15
• Material: Powder Painted Galvanized Steel; Aluminum Outdoor Coil
• Max Fuse: 25 amps
• Max SEER2: 14.6
• Min SEER2: 14.3
• Min SEER: 14.0
• Motor HP: 1/8
• Motor Speed: 850
• Number of Compressor: 1
• Number of Stages: Single
• Phase: 1.0 ph
• Refrigerant Type: R-410A
• Series: A4HP4
• Sound Level: 75 dBA
• Tonnage: 2.5 Ton
• Volts: 208/230 V
• Model: A4HP4030D1000
• UPC: 647535636597
• Product Height (in): 31.7
• Avg Coverage Area: 1,250 - 1,500 Sq Ft
• Product Length (in): 31
• Product Width (in): 31
• Cooling Capacity: 2.5 Ton
• Electrical Phase: 1-Phase
• Heat Pump Efficiency (HSPF2): Up to 7.5
• Line Set Connection Type: Sweat
• Liquid Line Size: 3/8 inch
• Max Overcurrent Protection: 25 amps
• Primary Heating Capacity: 48,000 - 60,000 BTU
• Refrigerant: R-410a
• Cooling Efficiency (SEER2): 14
• Suction Line Size: 3/4 inch
• System Application Type: Central Split Systems
• Voltage: 240
• Region Compatibility: Nationwide
