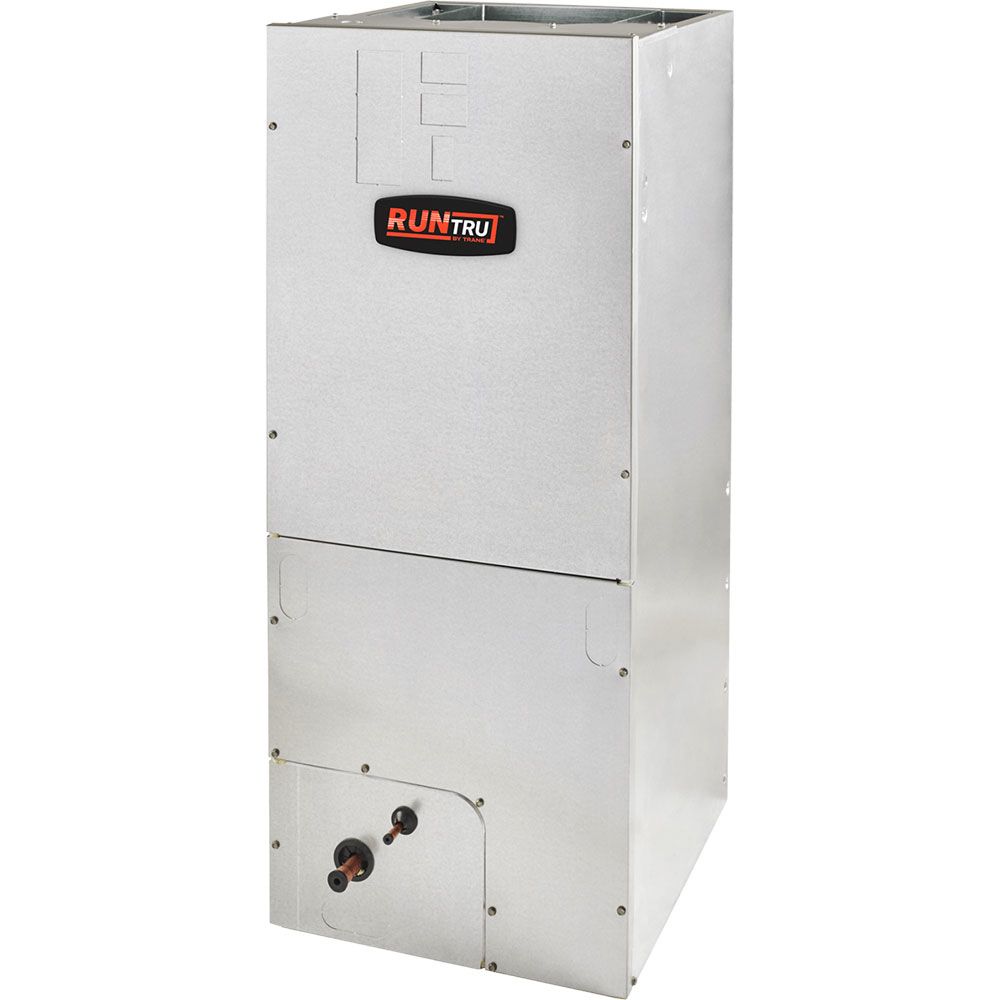

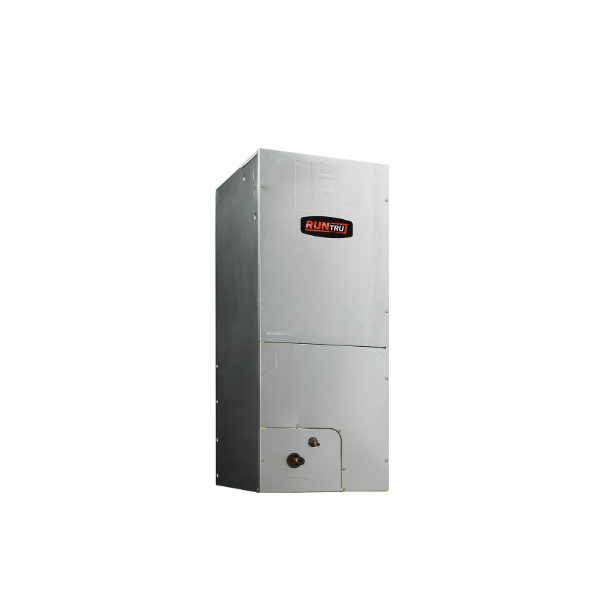

Trane A4AH6V48A1D30A RunTru Multi-Position Convertible Air Handler 4 Ton

Product Description

The TRANE A4AH6V48A1D30A RUNTRU® By Trane Multi-Position Convertible Air Handler is designed for efficient and reliable performance in residential or light commercial applications. With a 4-ton nominal capacity and a 16 SEER rating, it delivers powerful and energy-efficient cooling. The air handler features a durable metal construction with galvanized finish, ensuring long-term durability.

• Suitable for residential or light commercial applications
• High-efficiency cooling with a 16 SEER rating
• Versatile multi-position convertible configuration

Product Highlights

This air handler is equipped with an EMC blower motor and offering 16-speed options, it provides precise airflow control for enhanced comfort. Utilizing R410A refrigerant, it meets modern environmental standards.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: A4AH6V48A1D30A
• Country of Origin: United States

Technical Specifications

• Brand: RUNTRU By Trane
• Model: A4AH6V48A1D30A
• Tonnage: 4.0 Ton
• BTU Rating: 48000 Btu/Hr
• Configuration: Multipoise
• Liquid Line Size: 3/8 in.
• Suction Line Size: 7/8 in.
• Frequency: 60 Hz
• Voltage: 208 to 230 VAC
• Amperage: 6.8 A
• Horsepower: 3/4 hp
• Refrigerant: R410A
• Connection Type: NPT/Pigtail
• Type: air handler
• System Configuration: Multi-Positional
• BTU Cooling Rating: 48000
• SEER Rating: 16
• Country of Origin: United States
