Trane A4AH4E36A1C3 Air Handler Unit 3 Ton R410A Replacement MPN

Product Description

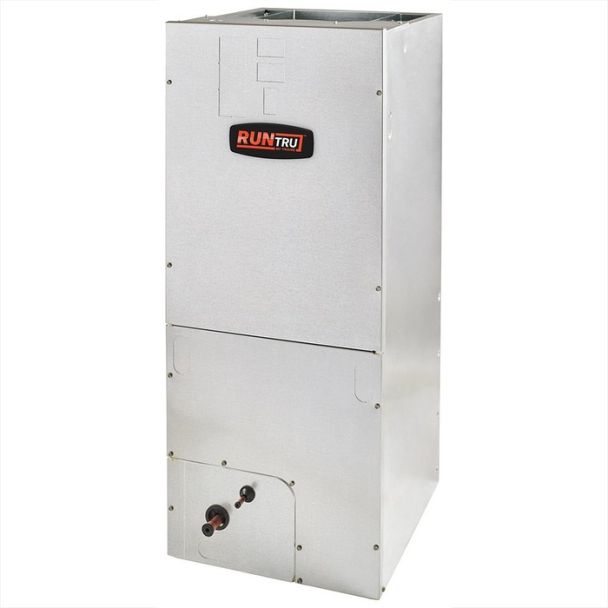

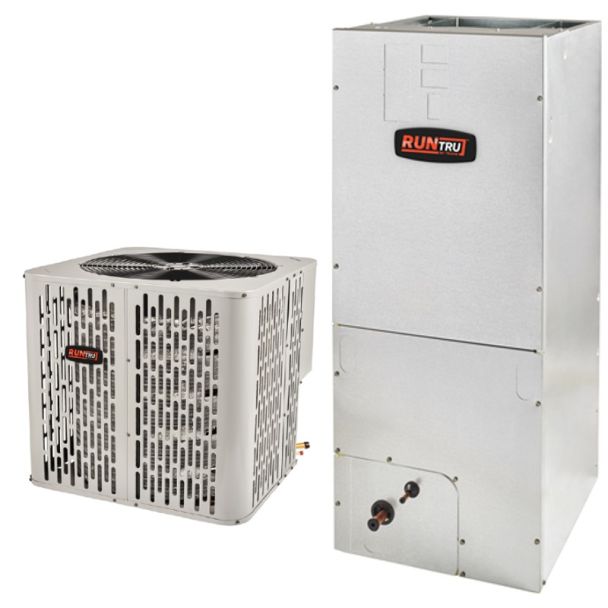

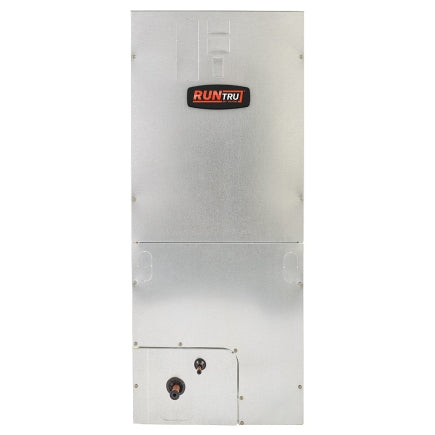

The Trane A4AH4E36A1C3 air handler is suitable for central split systems. This unit features a multi-speed ECM blower motor and includes a factory-installed TXV kit. It is rated for three tons and functions with R-410A refrigerant. The cabinet is insulated, allowing for installation in upflow, downflow, or horizontal orientations. It requires an external condenser for cooling and supports electric heating.

• Multi-speed ECM blower motor included.
• Compatible with R-410A refrigerant.
• Flexible installation for upflow, downflow, or horizontal setups.

Product Highlights

Product Information

Standard Information

• Brand: Trane
• Model: A4AH4E36A1C3

Technical Specifications

• Tonnage: 3 Ton
• Cooling Capacity: 3 Ton
• Refrigerant: R410A
• Blower Motor: Multi Speed ECM Motor
• Motor RPM: 1050
• Horsepower: 1/2 HP
• Electrical: 208/230v 1 Phase 60Hz
• Voltage: 240
• Max Breaker Size: 15 Amps
• Liquid Line Size: 3/8 inch
• Suction Line Size: 7/8 inch
• Heat Strip Compatibility: Up to 15 kW
• Product Height: 51 inches
• Product Width: 24 inches
• Product Length: 21 inches
• Weight: 155 lbs
• Configuration: Floor Mounted
• Warranties: 10 Year Parts
