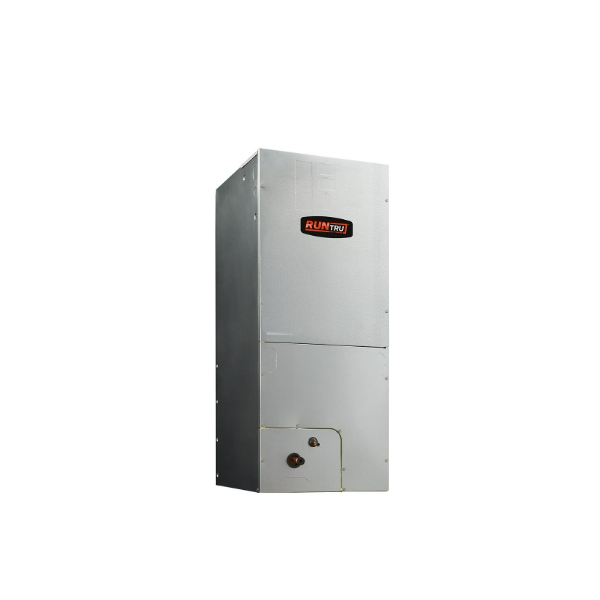

Trane A4AH4E30A1B30A RunTru Air Handler 30,000 BTU

Product Description

The TRANE A4AH4E30A1B30A RunTru Air Handler delivers 30,000 BTU with a 2.5T capacity and a 14.3 SEER2 rating. Operating at 208/230V, it features an ECM fan motor and a 4-way multi-position, single-stage design. This air handler is suitable for various residential and mobile home applications.

• Features an unpainted galvanized metal cabinet with captured foil face insulation.
• Equipped with an all-aluminum coil with enhanced patented coil fin.
• Includes a factory-installed R-410A thermal expansion valve with mechanical connections on both sides.

Product Highlights

The RunTru air handler offers efficient and versatile climate control for residential and mobile home use.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: A4AH4E30A1B30A

Technical Specifications

• BTU Rating: 30,000 Btu/hr
• CFM Rating: 1000 cfm
• Configuration: Multi-Position
• Efficiency Rating: 14
• Finish: Galvanized
• Flow Control: TXV
• Frequency Rating: 60 Hz
• Material: Steel
• Motor Type: ECM
• Number of Stages: Single
• Phase: 1 ph
• Refrigerant Control: TXV
• Refrigerant Type: R-410A
• Series: A4AH4
• Tonnage: 2.5 Ton
• Voltage Rating: 208/230 V
