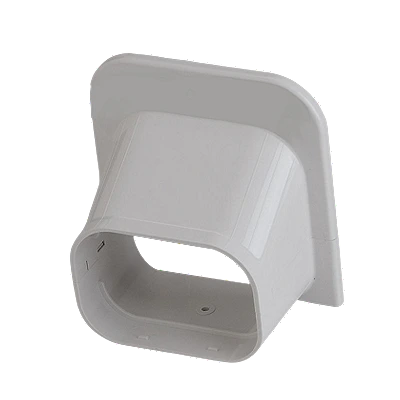

Trane 86114 Slimduct SP-100-W Soffit Inlet Fitting

Product Description

The TRANE 86114 is a soffit inlet fitting designed for use with the Slimduct SP-100-W duct raceway system. Made from PVC (Polyvinyl Chloride) in white, this fitting provides a clean transition point where a mini-split or ductless line set enters the system through a soffit. It measures 3.74 inches in height, 11.42 inches in depth, and 24.8 inches in width, making it suitable for standard soffit installations. HVAC technicians and installers use this fitting to complete a professional-looking line set cover installation without exposed tubing or rough penetrations.

This soffit inlet fitting is used in residential and light commercial ductless mini-split installations where the line set runs along the exterior or interior of a building and enters through a soffit. It is part of the Slimduct SP-100-W line cover system, which is commonly installed in new construction and retrofit applications. The fitting works in coordination with other SP-100-W raceway components to create a continuous, finished appearance from the outdoor unit to the indoor air handler.

Key Features

• PVC construction resists moisture, UV degradation, and corrosion in typical installation environments
• White finish matches standard Slimduct SP-100-W raceway components for a uniform appearance
• Dimensions of 3.74 inches height x 11.42 inches depth x 24.8 inches width accommodate soffit entry points
• Designed as part of the Slimduct system for consistent fitment with SP-100-W series components
• Lightweight at approximately 1.6 pounds shipped, simplifying handling during installation

Compatibility

Designed for use with the Slimduct SP-100-W line cover raceway system as a soffit inlet fitting component.

Installation Notes

Installation is typically performed by a licensed HVAC technician as part of a ductless mini-split line set cover project. Power to the indoor and outdoor units should be shut off at the disconnect before routing or securing any line set components. Standard hand tools and appropriate fasteners for the soffit material are required. Follow local building codes and manufacturer raceway guidelines for proper securing intervals and penetration sealing.
