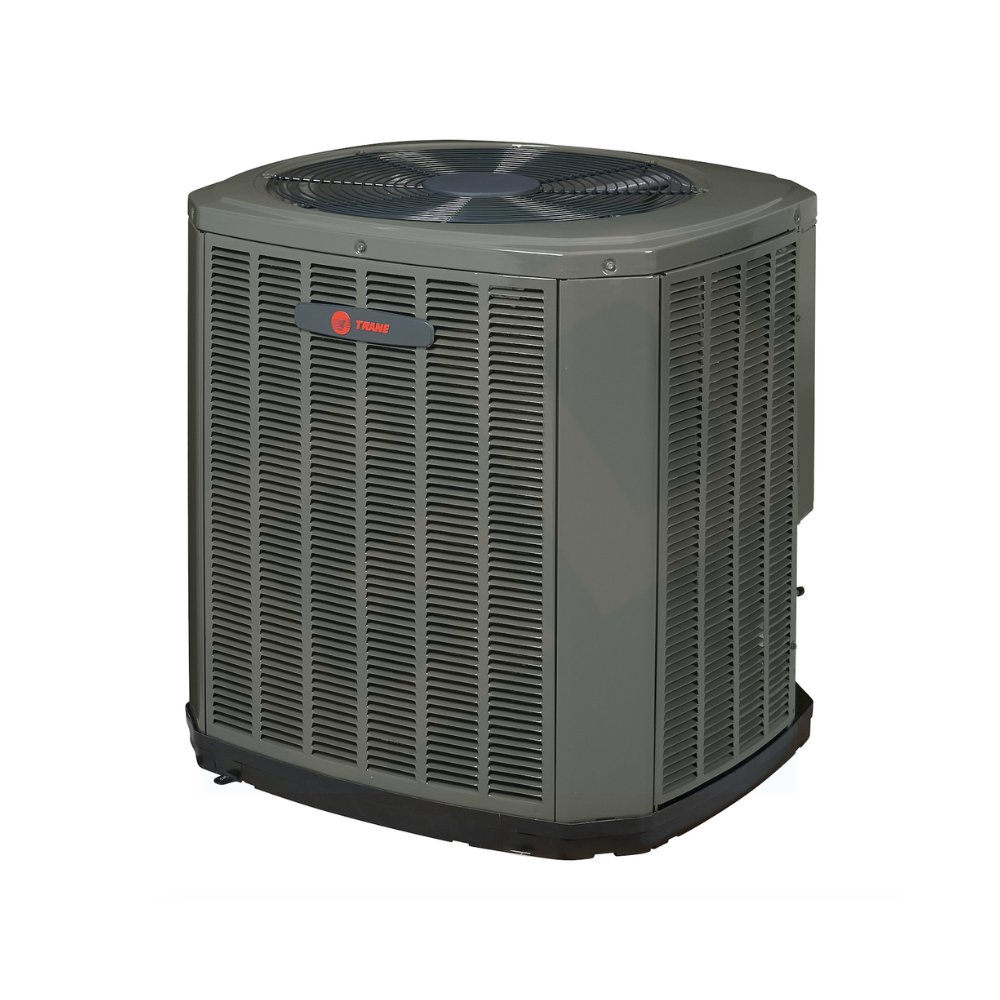

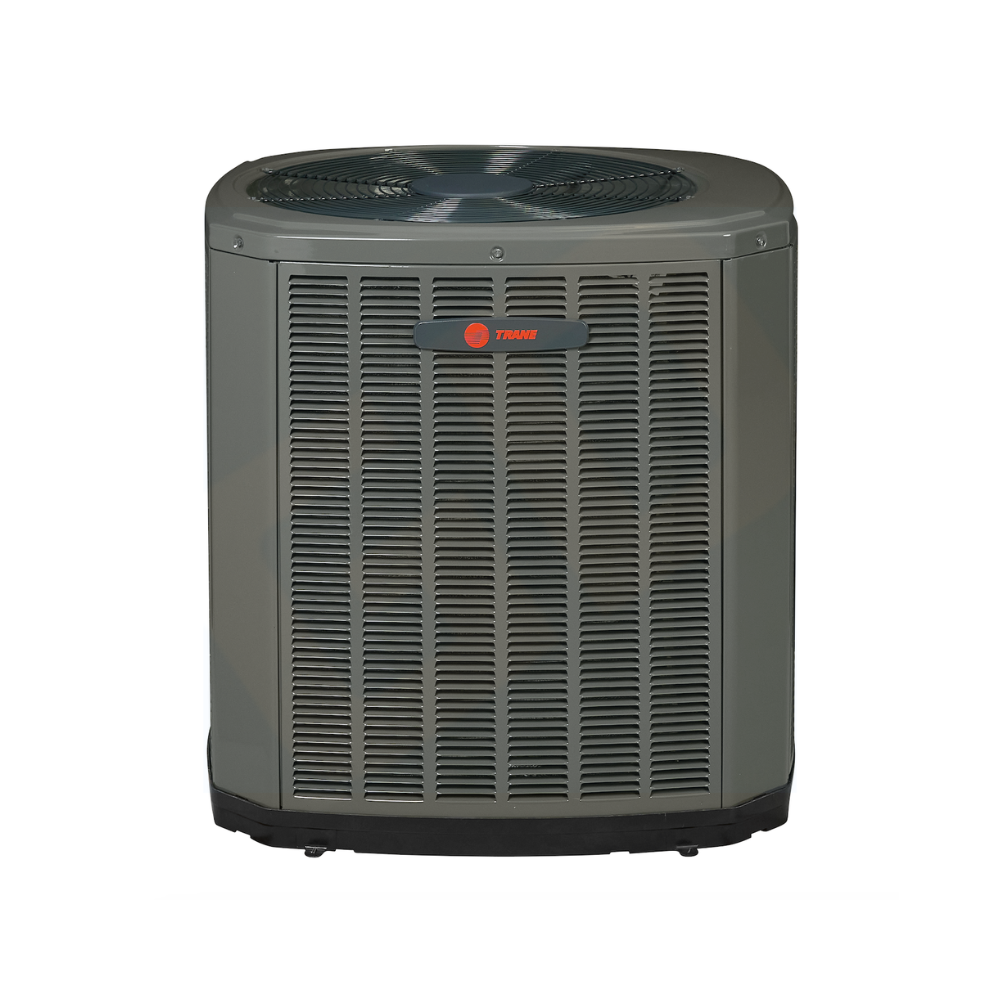

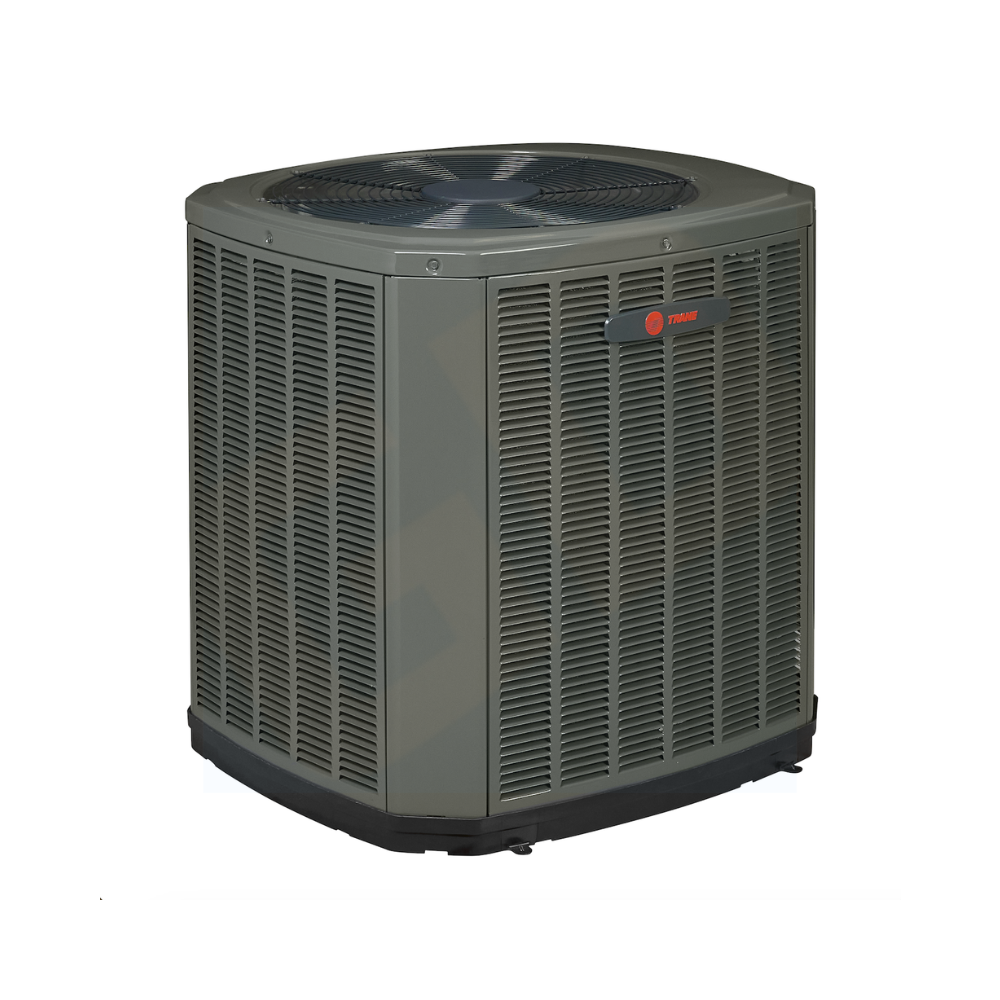

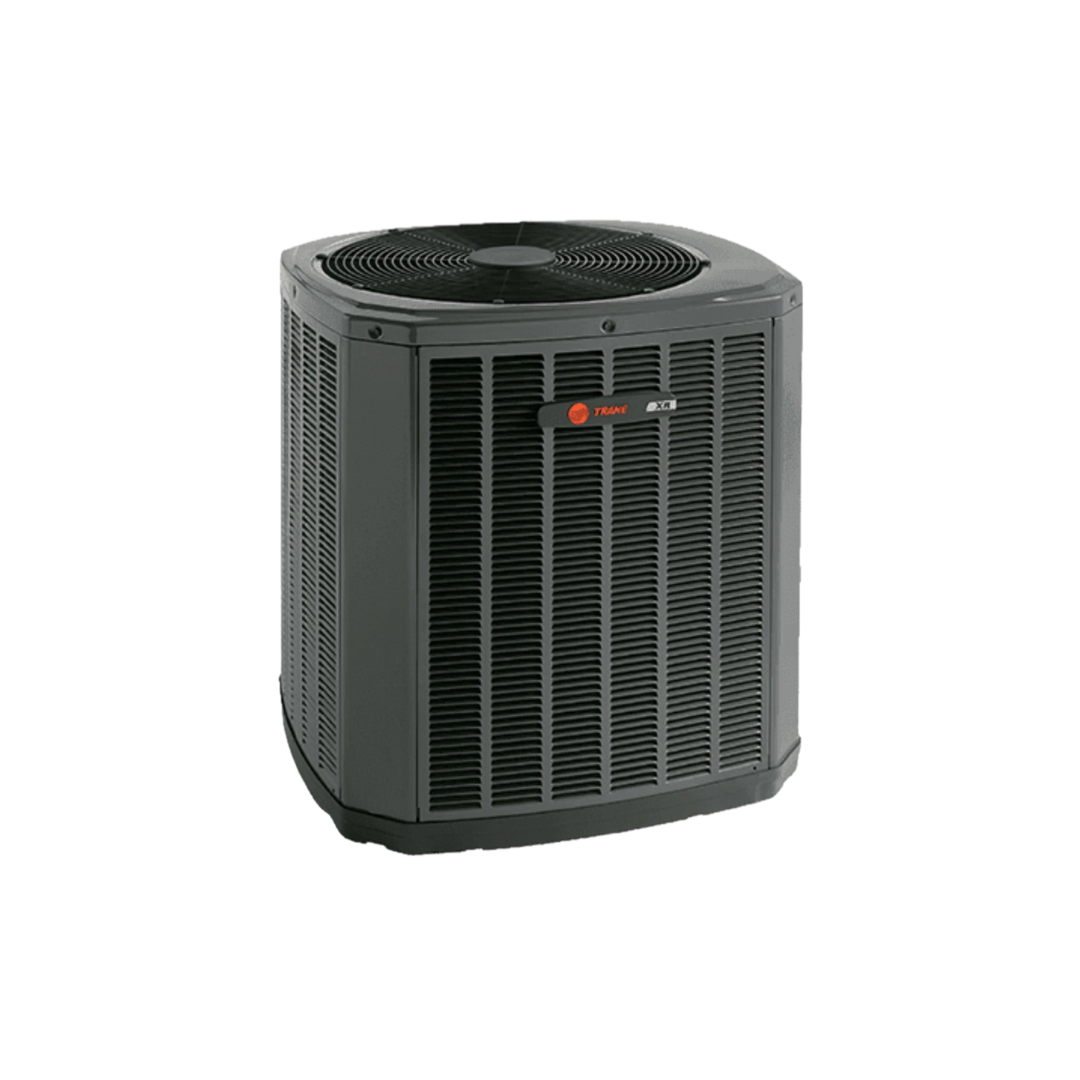

Trane 5TWR4042A1000A Choice 3.5T 14 SEER2 Single Stage Heat Pump

Product Description

The Trane 5TWR4042A1000A is a Choice, 3.5T, 14 SEER2 single stage heat pump. This 42,000 BTU unit operates at 208/230V and utilizes R-454B refrigerant. Features include a heavy gauge, galvanized steel casing with a weather-resistant powder paint finish and a compressor with internal over temperature and pressure protection.

• Optimized for maximum performance using R-454B refrigerant
• Constructed of heavy gauge, galvanized steel with a weather-resistant powder paint finish
• Compressor features internal over temperature and pressure protection

Product Highlights

The Trane 5TWR4042A1000A heat pump delivers efficient and reliable heating and cooling for residential applications. It features a Climatuff scroll compressor and Spine Fin all-aluminum coil.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: 5TWR4042A1000A

Technical Specifications

• Outdoor Unit: Compressor LRA: 104.7
• Outdoor Unit: Compressor Type: Scroll
• Outdoor Unit: Fan Motor FLA: 2.8
• Outdoor Unit: Refrigerant Control: Expansion Valve
• Power Supply: 208/230 V/1 Phase/60 Hz
• Refrigerant Charge lbs: 7 lbs-14 oz
• Refrigerant Control: TXV
• Refrigerant Type: R-454B
• Rows - Fins per Inch: 24
• Tonnage: 3.5 Ton
• Tube Size (in): 3/8
• BTU Cooling Rating: 42,000 Btu/hr
• Blower Diameter: 27.5 in
• Blower Motor Type: ECM
• Br. Cir. Prot. Rating. - Max (Amps): 24
• Charging Specification Subcooling: 10 deg F
• Compressor Insulation/Sound Blanket: No
• Compressor RLA: 16.9
• Compressor Stages: Single Stage
• Compressor Sump Heater Factory Installed: No
• Elec Hertz: 60 Hz
• Elec Phases: 1 ph
• Elec Volts: 208/230 V
• Factory Charged: Yes
• Factory Installed Start Components: BAYKSKT263
• Family Description: R-454B Heat Pump
• Full Load Amperage (FLA): 1.3
• HSPF2 Range: 7.5
• HSPF: 7.5 BTU/watt-hr
• Line Size - Liquid (in): 5/16
• Line Size - Suction (In): 7/8
• MCA: 24
• Max Breaker Size, Without Electric Heater (Amps): 40
• Max Fuse Size: 40 amps
• Max Fuse: 40 A
• Model: 5TWR4
• Motor Speed: 850 rpm
• Noise Level: 72 dba
• Number of Fans: 1
• Number of Stages: Single
• Outdoor Coil-FPI: 24
• Outdoor Coil-Face Area sq-ft: 30.8
• Outdoor Coil-Rows: 1
• Outdoor Coil-Tube Size (In): 3/8
• Outdoor Coil-Type: Spine Fin
• Outdoor Fan - CFM: 4992
• Outdoor Fan - Diameter In: 27.5
• Outdoor Fan - Drive: Direct
• Outdoor Fan - HP: 1-1/3
• Outdoor Fan - Speed: 850
• Outdoor Fan - Type: Propeller
• Phase: 1.0 ph
• Product Family Series: Choice
• SEER Rating: 15.2
• SEER2 Range: 7.5
• Series: 14 Single Stage Heat Pump
• Stage: 1
• Volts: 208/230 V
• Unit Type: Outdoor Unit
• Product Line: 5TWR4
• Operating Mode: Heating & Cooling
• Low Ambient Heat: No
• Number of Zones: 1
• System Capacity: 42,000 BTU, 3.5 Ton
• Line Set Size: 7/8" x 5/16"
• Noise Level Cooling: 72 dB(A)
• Noise Level Heating: 72 dB(A)
• Size W x D x H: 50.5" x 35" x 37.9"
• Electrical: 208/230V
• Cooling Efficiency (SEER2): 14.3
• Refrigerant: R-454B
• Application: Heat Pump
• A2L Compatible: Yes
• BTU: 42000
• CFM: 4992 ft3/min
• Coil Type: Spine Fin
• Collection: 5TWR4 Series
• Decibel Rating (dB): 72 dB
• Depth: 34 in
• EER2: 11.7
• Factory Std. Refrigerant Charge: 14 oz
• HSPF2: 7.5
• Height: 45 in
• Horsepower: 1.33 hp
• Liquid Line (OD): 5/16 in
• Lock Rotor Amps (LRA): 104.7
• Minimum Circuit Ampacity (MCA): 24
• Rated Load Amps (RLA): 16.9
• Sound Blanket: No
• Suction Line (OD): 7/8 in
• UL Listed: Yes
