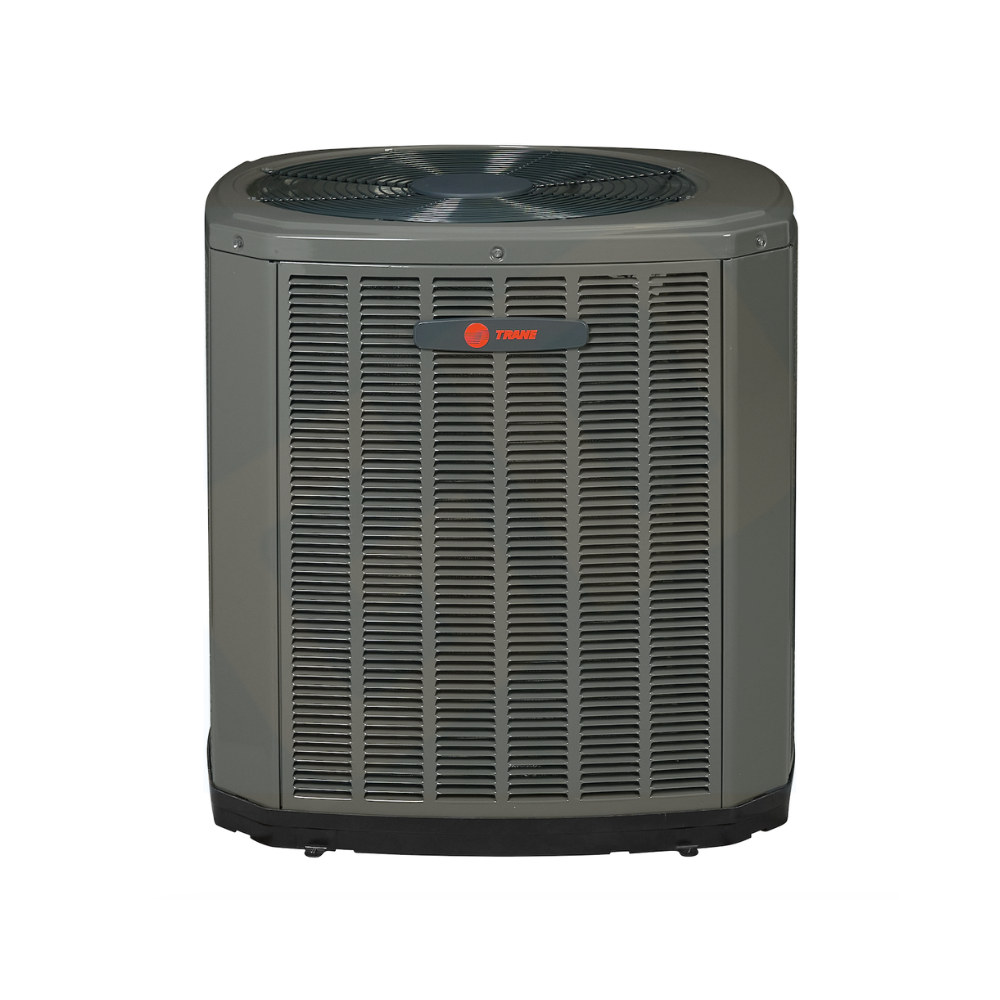

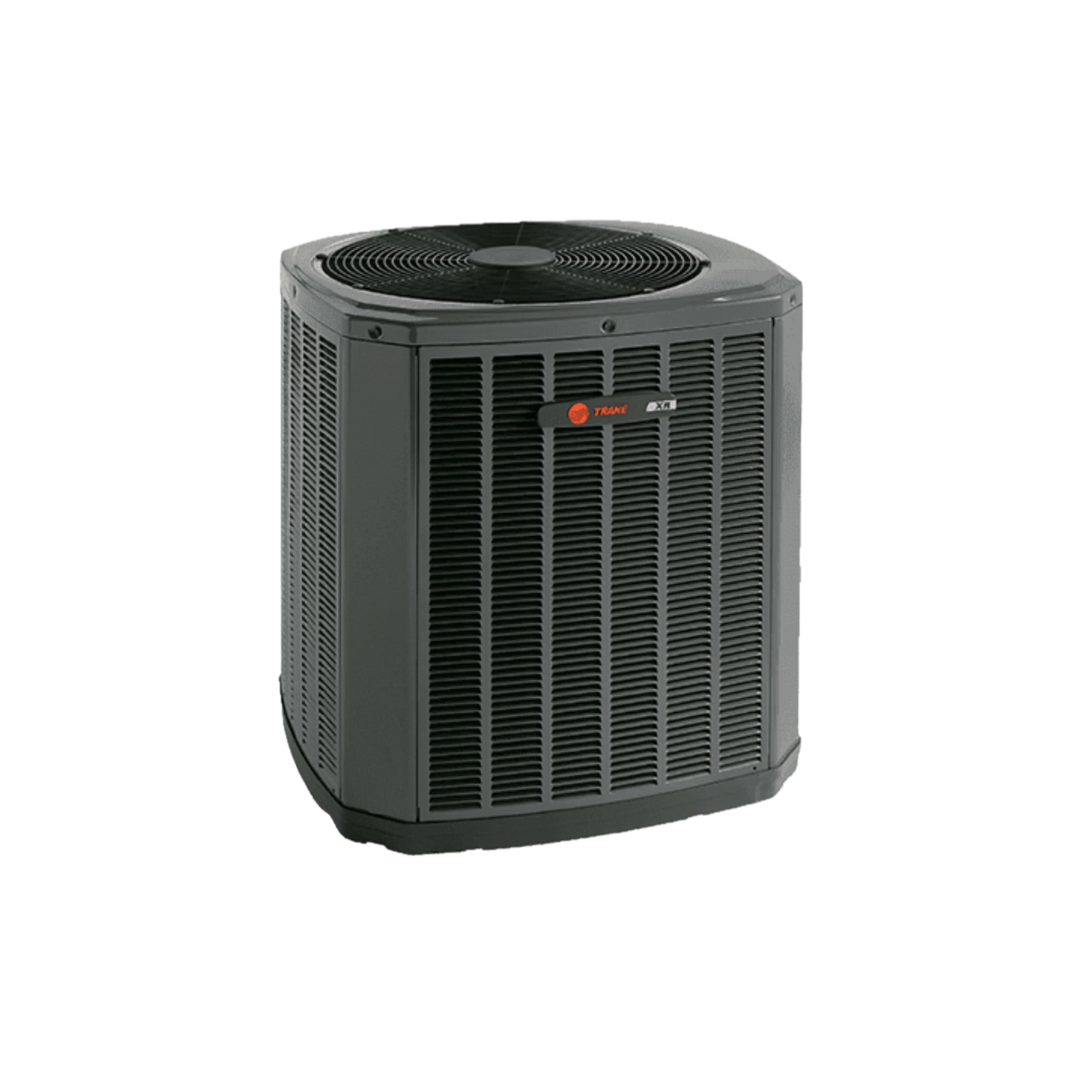

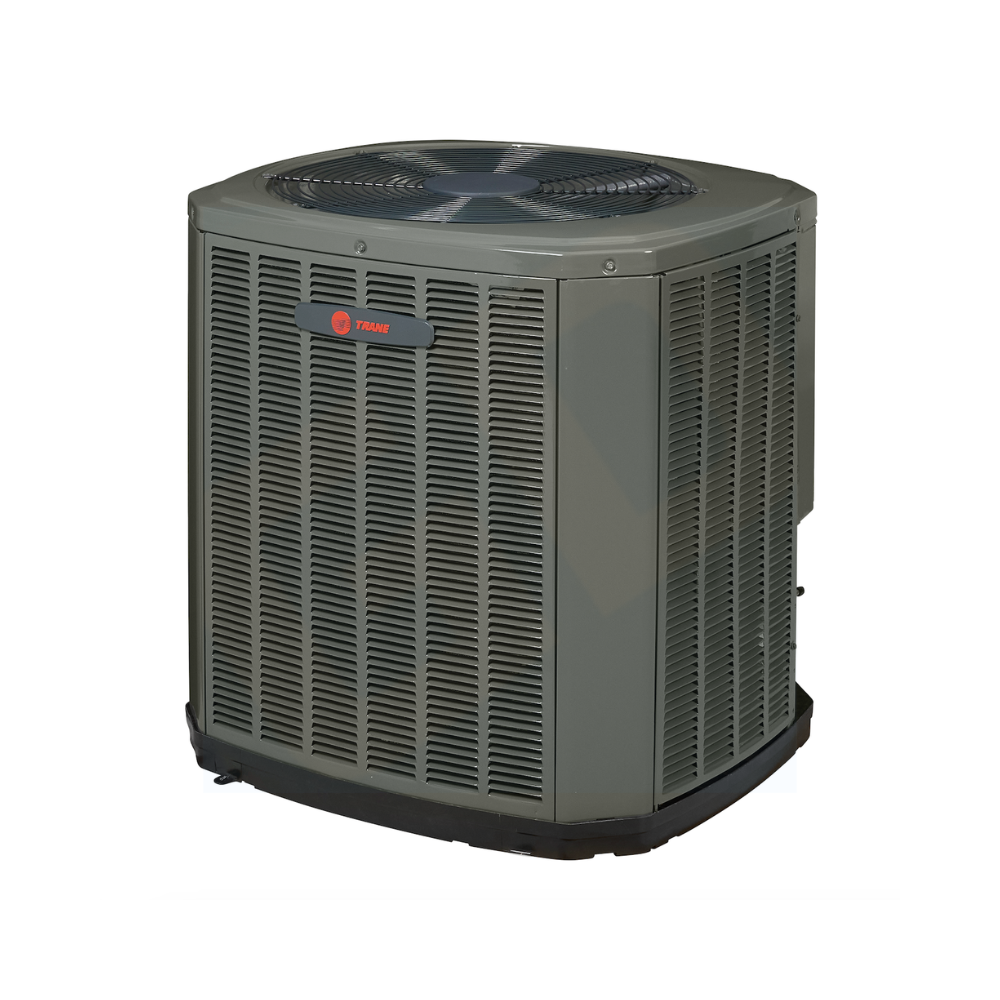

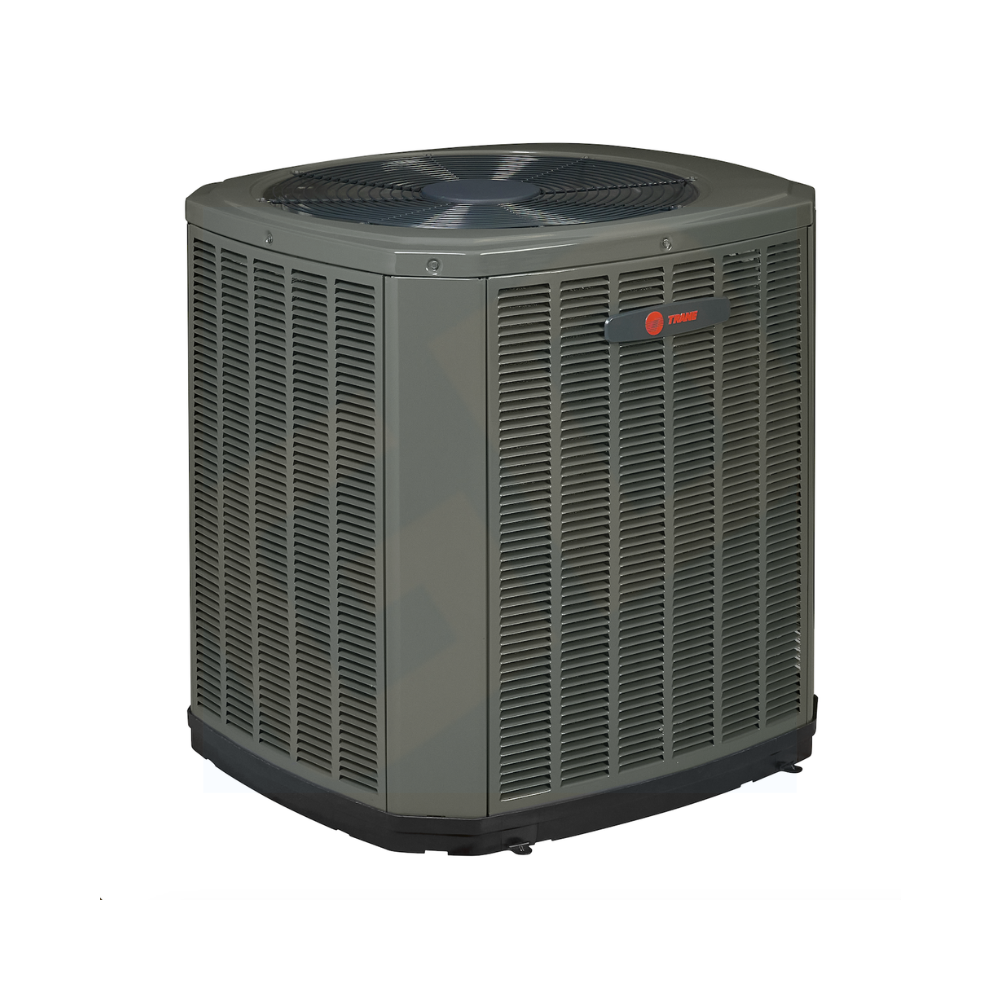

Trane 5TWR4024A1000A Heat Pump Outdoor Unit 24,000 BTU

Product Description

The Trane 5TWR4024A1000A is a 24,000 BTU 2-ton single-stage heat pump featuring a Climatuff® scroll compressor and Spine Fin™ all-aluminum coil. Designed for residential use, it uses R-454B refrigerant for efficient heating and cooling. The unit operates in outdoor temperatures up to 115°F and is certified to UL 60335-2-40.

• 24,000 BTU, 2-ton capacity
• Single-stage heat pump
• Climatuff® scroll compressor

Product Highlights

Provides reliable and energy-efficient residential heating and cooling performance with a weather-resistant powder paint finish.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: 5TWR4024A1000A

Technical Specifications

• Unit Type: Outdoor Unit
• Product Line: 5TWR4
• Operating Mode: Heating & Cooling
• Low Ambient Heat: No
• Number of Zones: 1
• System Capacity: 24,000 BTU, 2 Ton
• Line Set Size: 3/4" x 5/16"
• Noise Level Cooling: 71 dB(A)
• Noise Level Heating: 71 dB(A)
• Condenser Model: 5TWR4024A1000A
• Size/Tonnage: 2-Ton
• Cooling Efficiency (SEER2): 14.3
• Stages: Single
• Refrigerant: R-454B
• Application: Heat Pump
• Outdoor Unit: Compressor LRA: 59
• Outdoor Unit: Compressor Type: Scroll
• Outdoor Unit: Fan Motor FLA: 0.64
• Outdoor Unit: Refrigerant Control: Expansion Valve
• Power Supply: 208/230 V/1 Phase/60 Hz
• Refrigerant Charge lbs: 4 lbs-10 oz
• Refrigerant Control: TXV
• Rows - Fins per Inch: 24
• System Control Type: 24 V
• Tonnage: 2.0 Ton
• Tube Size (in): 3/8
• BTU Cooling Rating: 24,000 Btu/hr
• Blower Diameter: 23 in
• Blower Motor Type: PSC
• Br. Cir. Prot. Rating. - Max (Amps): 13
• Charging Specification Subcooling: 12 deg F
• Coil Type: Spine Fin
• Compressor Insulation/Sound Blanket: No
• Compressor LRA: 75.9
• Compressor RLA: 9.1
• Compressor Stages: Single Stage
• Compressor Sump Heater Factory Installed: No
• Elec Hertz: 60 Hz
• Elec Phases: 1 ph
• Elec Volts: 208/230 V
• Factory Charged: Yes
• Family Description: R-454B Heat Pump
• Full Load Amperage (FLA): 0.64
• HSPF2 Range: 7.5
• HSPF: 7.5 BTU/watt-hr
• Line Size - Liquid (in): 5/16
• Line Size - Suction (In): 3/4
• MCA: 13
• Max Breaker Size, Without Electric Heater (Amps): 20
• Max Fuse Size: 20 amps
• Max Fuse: 20 A
• Model: 5TWR4
• Motor Power Rating: 208/230 V/1 Phase/60 Hz
• Motor Speed: 850 rpm
• Noise Level: 71 dba
• Number of Outdoor Fan Used: 1
• Number of Stages: Single
• Outdoor Coil-FPI: 24
• Outdoor Coil-Face Area sq-ft: 18.75
• Outdoor Coil-Rows: 1
• Outdoor Coil-Tube Size (In): 3/8
• Outdoor Fan - CFM: 2980
• Outdoor Fan - Diameter In: 23
• Outdoor Fan - Drive: Direct
• Outdoor Fan - HP: 1-1/8
• Outdoor Fan - Speed: 850
• Outdoor Fan - Type: Propeller
• Phase: 1.0 ph
• Product Family Series: Choice
• SEER Rating: 14
• SEER2 Range: 7.5
• Series: 14 Single Stage Heat Pump
• Stage: 1
• Volts: 208/230 V
