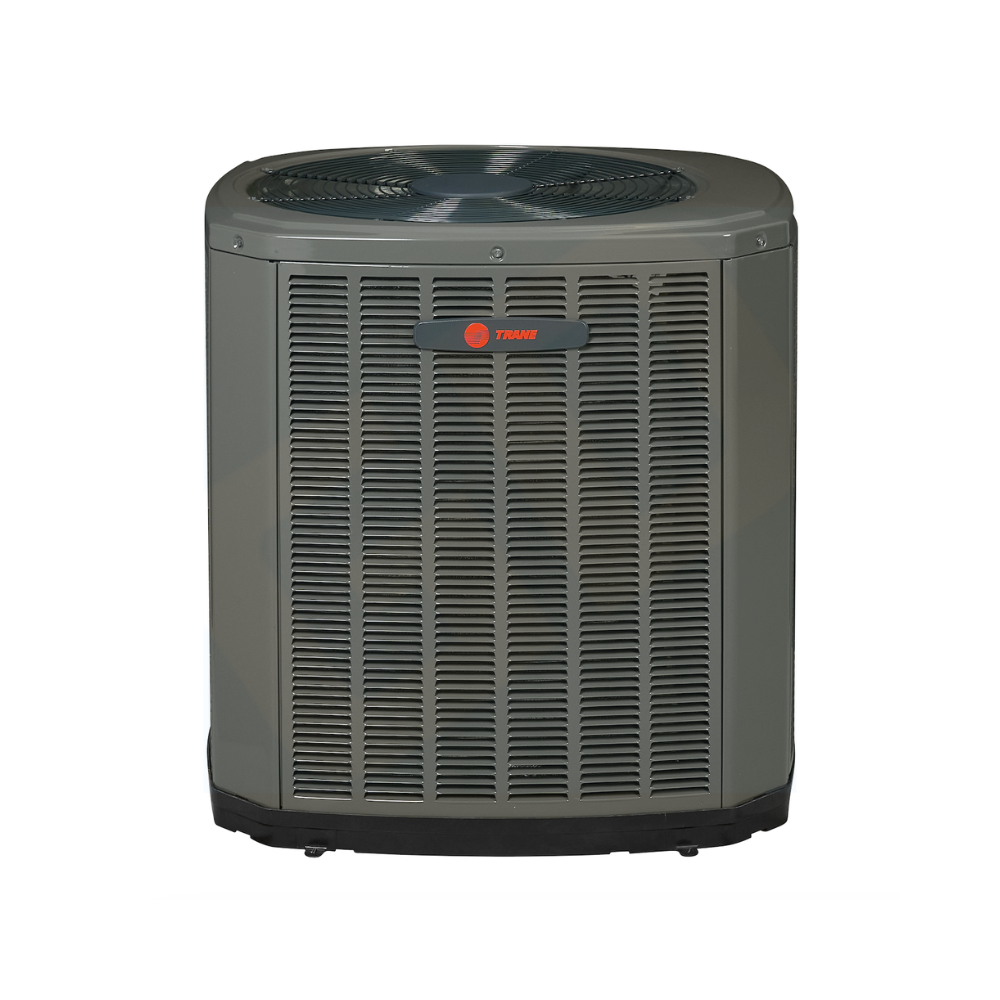

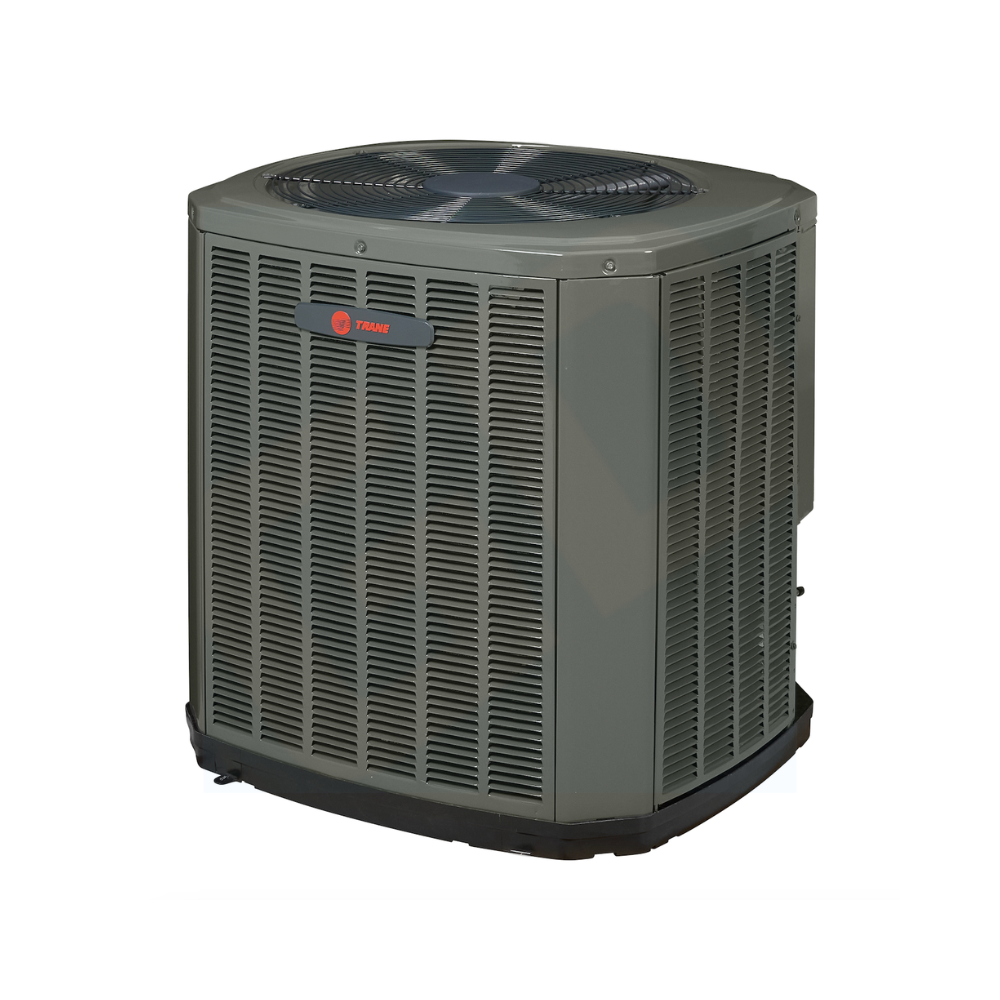

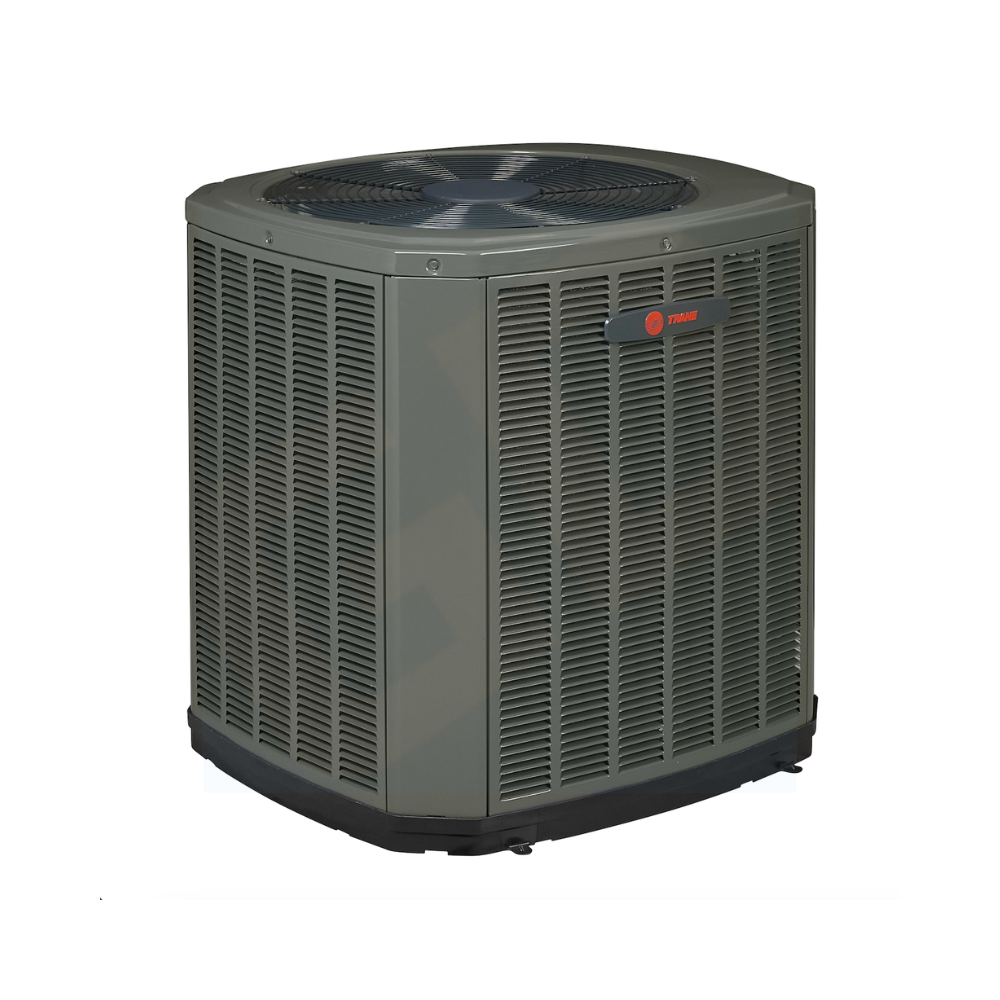

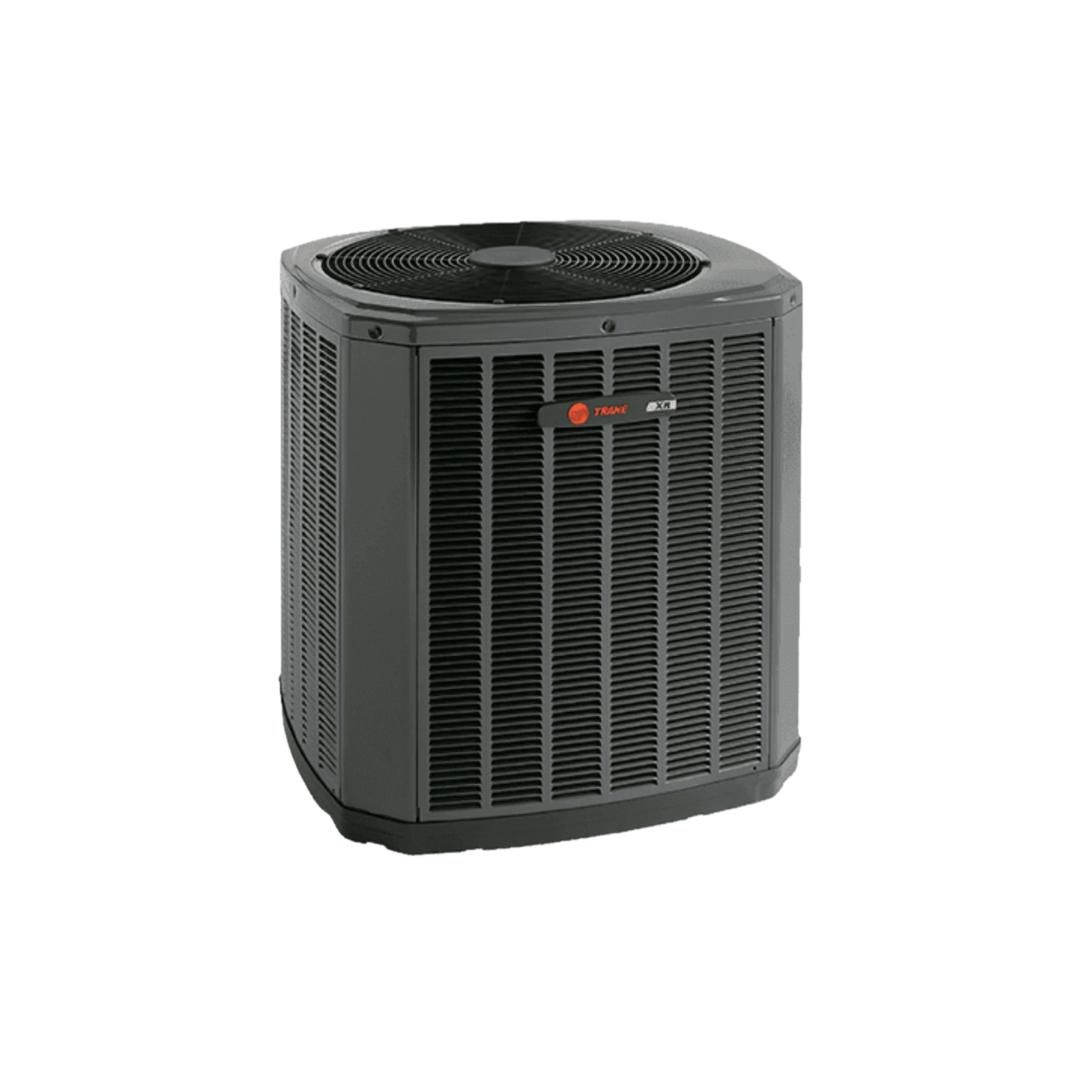

Trane 5TWR4018A1000A Heat Pump 1.5-Ton 14.3 SEER2 Single-Stage

Product Description

The Trane 5TWR4018A1000A heat pump delivers 18,000 BTUs (1.5 tons) of durable, high-efficiency performance for both heating and cooling in residential applications. Built with Trane’s commitment to quality, this unit provides reliable comfort and long-term energy savings. It is engineered to perform in all seasons. The heat pump has a SEER2 rating of 14.3 and uses R-454B refrigerant.

• Energy-efficient operation
• Durable Climatuff® compressor
• All-aluminum Spine Fin™ coil

Product Highlights

The Trane 5TWR4018A1000A heat pump is an excellent choice for homeowners seeking a balance of performance, efficiency, and durability.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: 5TWR4018A1000A

Technical Specifications

• Condenser Model: 5TWR4018A1000A
• Size/Tonnage: 1.5-Ton
• Cooling Efficiency (SEER2): 14.3
• Stages: Single
• Refrigerant: R-454B
• Application: Heat Pump
• Unit Type: Outdoor Unit
• Product Line: 5TWR4
• Operating Mode: Heating & Cooling
• Low Ambient Heat: No
• Number of Zones: 1
• System Capacity: 18,000 BTU 1.5 Ton
• Line Set Size: 3/4" x 5/16"
• Noise Level Cooling: 71 dB(A)
• Noise Level Heating: 71 dB(A)
• Electrical: 208/230V
• BTU Cooling Rating: 18,000 Btu/hr
• Compressor LRA: 47.5
• Compressor RLA: 7.8
• Compressor Stages: Single Stage
• Compressor Sump Heater Factory Installed: No
• Compressor Type: Scroll
• Elec Hertz: 60 Hz
• Elec Phases: 1 ph
• Volts: 208/230 V
• Fin Type: Spine Fin
• Full Load Amperage (FLA): 0.64
• Fuse Rating: 20 A
• HSPF2 Range: 7.5
• HSPF: 7.5 BTU/watt-hr
• Line Size - Liquid (in): 5/16
• Line Size - Suction (In): 3/4
• MCA: 12
• Max Fuse: 20 A
• Model: 5TWR4
• Number of Fans: 1
• Number of Stages: Single
• Phase: 1.0 ph
• Power Supply: 208/230 V/1 Phase/60 Hz
• Product Family Series: Choice
• Refrigerant Control: TXV
• Rows - Fins per Inch: 24
• SEER Rating: 14
• SEER2 Range: 7.5
• Series: 14 Single Stage Heat Pump
• Sound Rating (dB): 71
• Stage: 1
• Tonnage: 1 Ton
• Tube Size (In): 3/8
