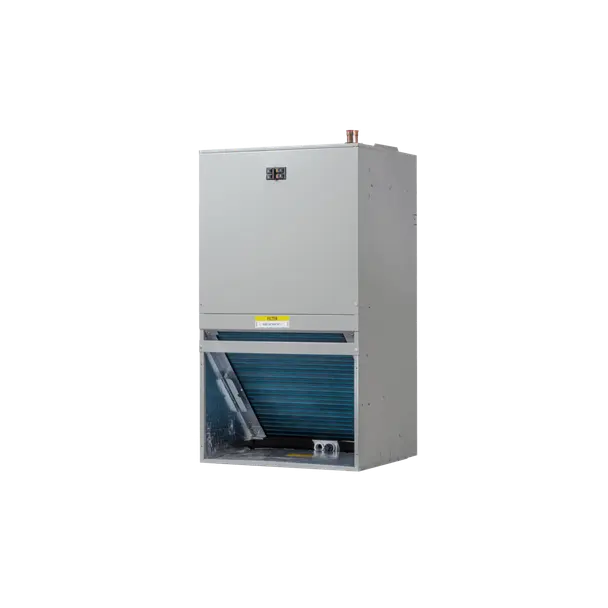

Trane 5TMM5B0B30M21S Wall Mount Air Handler 2.5 Ton 30000 Btu/h R-454B 208-240V

Product Description

The Trane 5TMM5B0B30M21S is a 2.5-ton wall-mount air handler designed for residential split-system cooling and heat pump applications. Part of the RunTru by Trane product line, it operates on 208-240 volts, single phase, 60 Hz and is rated for 30,000 BTU/h nominal capacity. The unit uses refrigerant R-454B and features an all-aluminum plate fin slab coil with a factory-installed TXV metering device. A multi-speed direct-drive blower motor delivers airflow in the range of approximately 1,077 to 1,362 CFM. System control operates at 24 volts. Licensed HVAC technicians install and service this unit.

The 5TMM5B0B30M21S is configured for upflow-only, wall-mount installation and is suited for residential applications where floor space is limited. Typical install locations include closets, utility rooms, and alcoves, as well as stud-wall or over-water-heater mount configurations. The unit supports single-stage cooling operation and is designed to pair with a compatible outdoor condensing unit or heat pump. Optional electric heater kits in 5, 7.5, and 10 kW ratings are available as accessories for this series. In many split-system configurations this air handler may be sized one nominal ton above the outdoor unit to optimize system efficiency.

Key Features

• 2.5-ton nominal cooling capacity at 30,000 BTU/h
• R-454B refrigerant compatible with factory-installed TXV
• All-aluminum plate fin slab coil construction
• Multi-speed direct-drive blower motor, 1,077 to 1,362 CFM airflow range
• 24-volt system control, 208-240V/1ph/60Hz power supply
• Wall, stud, or over-water-heater mount configurations supported
• Compatible with optional 5, 7.5, and 10 kW single-phase electric heater kits

Compatibility

Designed for use in residential split-system cooling and heat pump configurations requiring a 2.5-ton upflow wall-mount air handler with R-454B refrigerant. Compatible with optional Trane TMM5 series electric heater accessories for single-phase applications.

Installation Notes

Installation must comply with all applicable national, state, and local codes. A licensed HVAC technician should perform all refrigerant line brazing, electrical connections, and system startup procedures. Disconnect and lock out all electrical power before servicing internal components. The gas line braze connection on this unit is 3/4 inch; verify line set sizing and support per manufacturer guidelines before commissioning.

Technical Specifications

• Nominal Cooling Capacity: 30,000 BTU/h (2.5 tons)
• Refrigerant: R-454B
• Voltage: 208-240 volts, 1-phase, 60 Hz
• System Control Voltage: 24 volts
• Airflow Range: 1,077 to 1,362 CFM
• Nominal CFM: 800 CFM
• Metering Device: TXV (factory installed)
• Coil Type: All-aluminum plate fin slab coil
• Cabinet Height (A): 40.50 inches
• Cabinet Width (B): 22.00 inches
• Cabinet Depth (C): 18.75 inches
• Front Return Opening: 18.75 x 20.75 inches
• Bottom Return Opening: 20.00 x 7.50 inches
• Supply/Top Outlet: 10.00 x 8.25 inches
• Gas Line Braze Connection: 3/4 inch
• Airflow Orientation: Upflow only
• Mount Type: Wall, stud, or over water heater

Standard Information

• Brand: Trane
• Manufacturer Part Number: 5TMM5B0B30M21S
