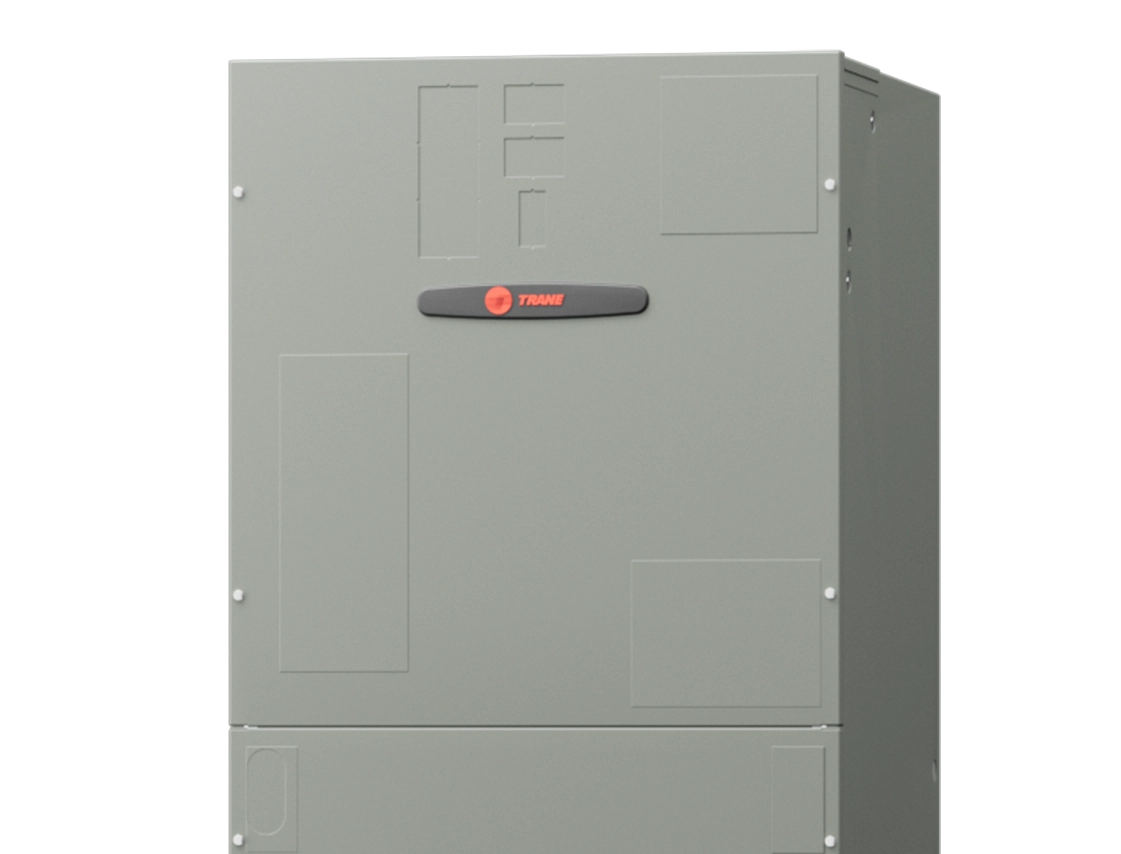

Trane 5TEM4D06AC41SA Choice 3.0-4.0T Single Stage Air Handler

Product Description

The Trane 5TEM4D06AC41SA air handler is designed for installation in various locations such as a closet, utility room, or attic. Applicable for air conditioning and heat pump applications, this 5TEM4 series unit features a constant torque ECM blower motor and a TXV flow control. It operates at 208/230 V and 60 Hz.

• Designed for use with R-454B refrigerant.
• Features a painted metal cabinet with captured foil face insulation.
• Offers multi-position UP/Down Flow, Horizontal Left /Right configuration.

Product Highlights

The Trane 5TEM4D06AC41SA air handler provides efficient airflow and flexible system integration for residential HVAC systems.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: 5TEM4D06AC41SA

Technical Specifications

• Additional Information: 11 in Dia x 8 in W Direct Drive Centrifugal Fan, TXV Flow Control
• Amperage Rating: 6 A
• BTU Rating: 48,000 Btu/hr
• Blower type: Constant Torque ECM
• CFM Rating: 1,600 cfm
• Coil Rating: 5.5 sq-ft Face Area
• Configuration: Downflow, Horizontal Left/Right, Multi-Position
• Connection Size: 3/4 in
• Connection Type: NPT
• Finish: Painted
• Frequency Rating: 60 Hz
• HP Rating: 3/4 hp
• Liquid Line Size: 3/8 in
• Material: Metal, Aluminum
• Metering Device: TXV
• Model: 5TEM4D06AC41SA
• Motor Type: ECM
• Number of Speeds: 8
• Number of Stages: Single
• Phase: 1 ph
• Product Family Series: Choice
• Refrigerant Control: TXV
• Refrigerant Type: R-454B
• Series: Choice
• Stage: 1
• Suction Line Size: 7/8 in
• Tonnage: 4.0 Ton
• Voltage Rating: 208/230 V
• Unit Type: Air Handler
• Product Line: 5TEM4
• Operating Mode: Cooling & Heating
• Number of Zones: 1
• System Capacity: 48,000 BTU
• Line Set Size: 7/8" x 3/8"
• Indoor Unit: 5TEM4D06AC41SA
• Rated Capacity Range: 36,000 - 48,000 BTU
• Room Cooling/Heating Capacity: up to 2,000 sq ft
• A2L Compatible: Yes
• Blower Type: Direct Drive
• Coil Type: Plate Fin
• Collection: 5TEM4 Series
• Refrigerant: R-454B
• Compatible Refrigerant: R-454B
• Fan Stages: Constant Torque
