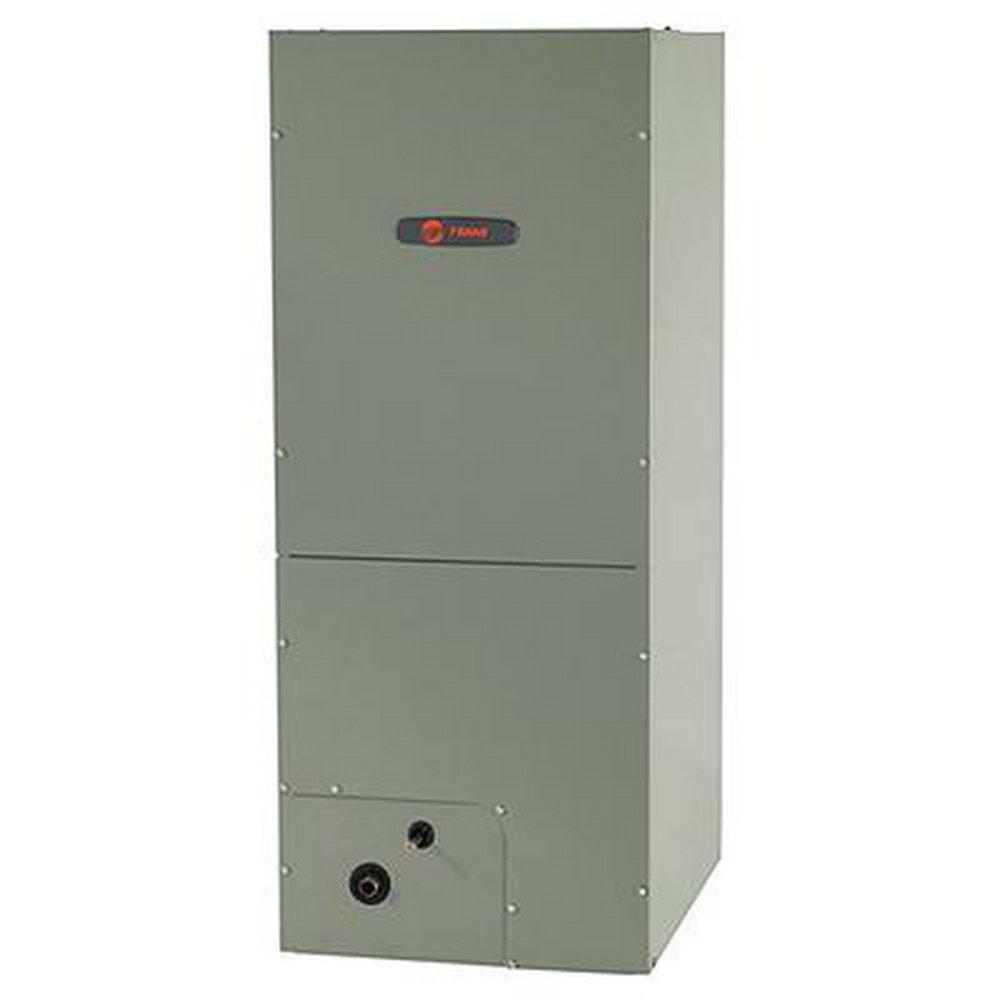

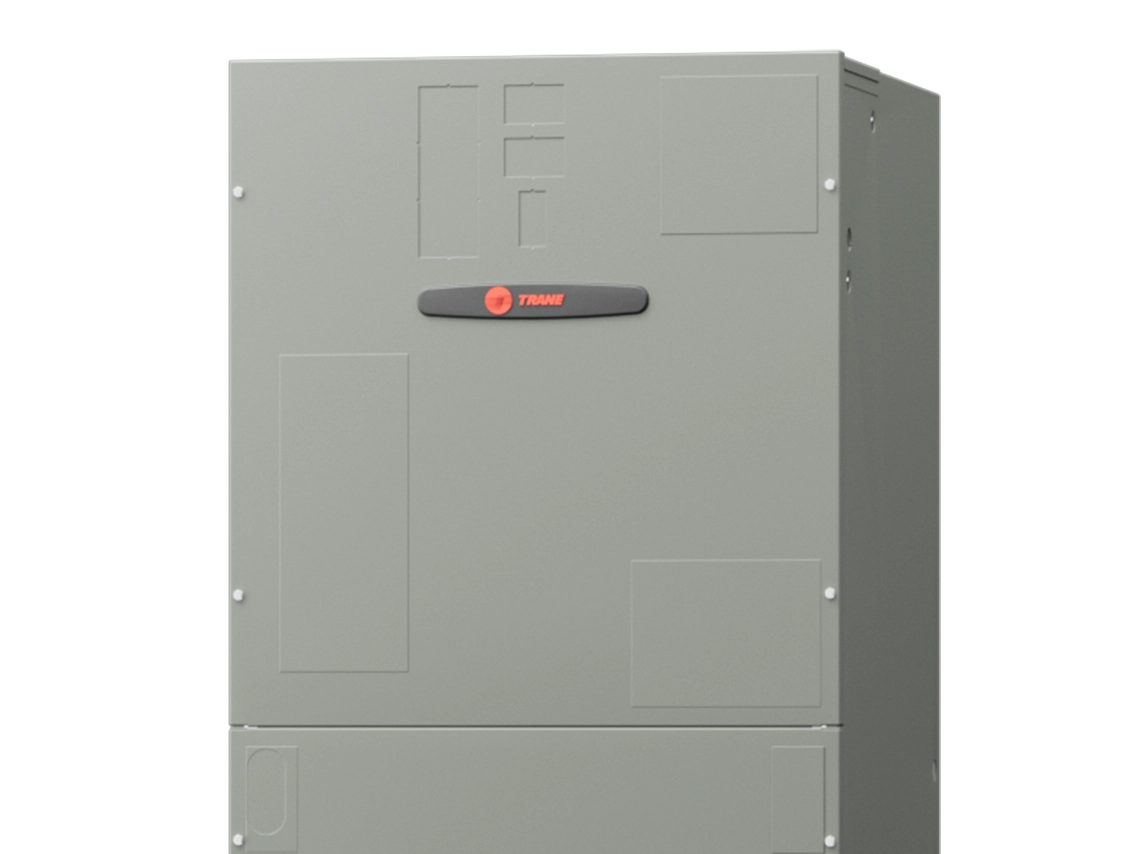

Trane 5TEM4B03AC31SA Air Handler 30,000 BTU

Product Description

The Trane 5TEM4B03AC31SA air handler delivers dependable comfort for residential and light commercial spaces. Designed to pair seamlessly with Trane's single-stage cooling and heating systems, this multi-position air handler features a constant torque ECM motor and TXV metering. It utilizes R-454B refrigerant and has a painted metal cabinet with captured foil face insulation.

• Low Global Warming Potential (GWP) outdoor units that utilize R-454B refrigerant
• Multi-Position UP/Down Flow, Horizontal Left /Right
• All Aluminum Coil resists corrosion for long-lasting durability and improved efficiency.

Product Highlights

The Trane 5TEM4 air handler provides optimized airflow for consistent comfort and efficient operation. Built with quality and durability in mind.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: 5TEM4B03AC31SA

Technical Specifications

• BTU Rating: 30,000 Btu/hr
• Blower type: Constant Torque ECM
• CFM Rating: 1000 cfm
• Configuration: Multi-Position
• Frequency Rating: 60 Hz
• Metering Device: TXV
• Model: 5TEM4B03AC31SA
• Motor Type: ECM
• Number of Stages: Single
• Phase: 1 ph
• Position: Multi Position
• Product Family Series: Choice
• Refrigerant Control: TXV
• Refrigerant Type: R-454B
• Series: Choice
• Stage: 1
• Tonnage: 2.5 Ton
• Voltage Rating: 208/230 V
• A2L Compatible: Yes
• AMP: 3.9
• BTU: 30000
• Blower Type: Direct Drive
• CFM: 1000 ft3/min
• Coil Type: Plate Fin
• Collection: 5TEM4 Series
• Depth: 21-1/8 in
• Fan Speeds: 8
• Height: 46-3/4 in
• Horsepower: 0.5 hp
• Liquid Line (OD): 3/8 in
• MBH: 30
• Material: Aluminum, Metal
• Max CFM: 1000 cfm
• Suction Line (OD): 3/4 in
• Width: 18-1/2 in
• Rated Capacity Range: 18 - 30K
• Fan Stages: Constant Torque
• Capacity (BTU): 18K-30K
• Stages: Single
• Cabinet Size: B
• Heat Source: Electric
