Trane 5MXCD010AC6HCA Multi-position Cased Evaporator Coil 36000 to 60000 Btu/h 3.5 to 5 Ton R-454B 24.5 Inch Cabinet

Product Description

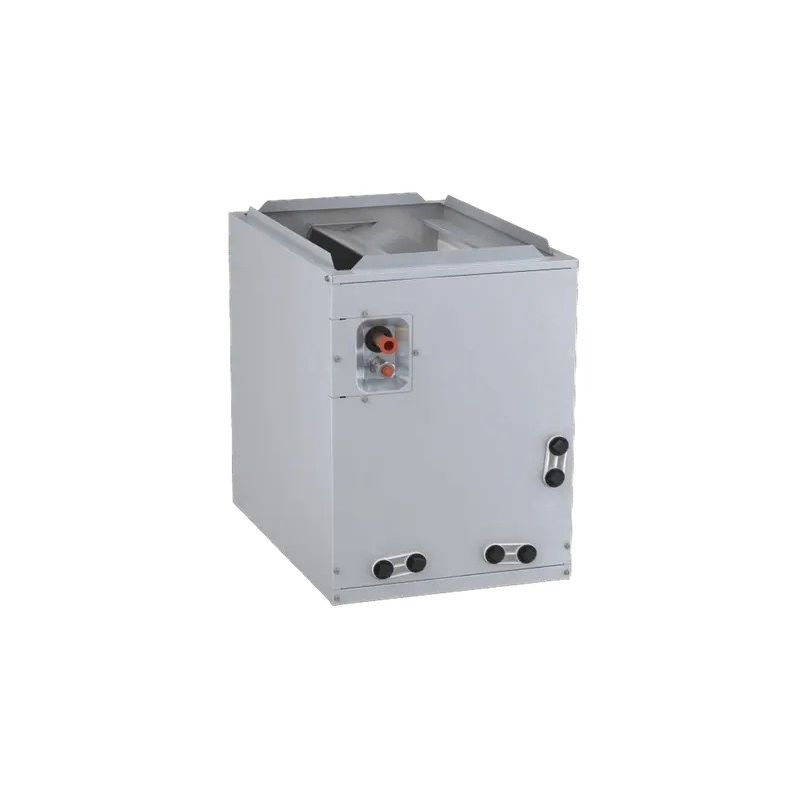

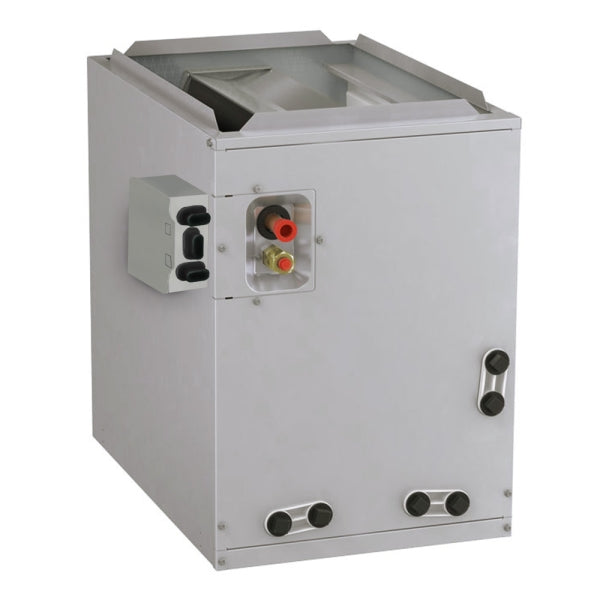

The Trane 5MXCD010AC6HCA is a multi-position cased evaporator coil rated for 3.5 to 5 tons (36,000 to 60,000 BTU/h) and designed for use with R-454B refrigerant. Part of the 5MXC series, it features a 24.5-inch-wide cabinet with external dimensions of 30 inches high by 24.5 inches wide by 21 inches deep. The coil ships with a factory-integrated flow control check valve that supports both cooling-only and heat pump system configurations. It is installed by licensed HVAC technicians as the indoor air-side component of a split system, where it absorbs heat from return air and transfers it to the refrigerant circuit.

The 5MXCD010AC6HCA is suited for residential and light-commercial split-system applications requiring multi-positional flexibility. It can be oriented in upflow, downflow, or horizontal configurations, making it compatible with a wide range of air handler and furnace installations where cabinet geometry or duct layout dictates airflow direction. The coil also includes a factory-installed R-454B refrigerant leakage sensor with a leak mitigation kit, addressing evolving code requirements for A2L refrigerant handling in occupied spaces.

Key Features

• Multi-position design supports upflow, downflow, and horizontal installation orientations
• Rated for 3.5 to 5 tons (36,000 to 60,000 BTU/h) cooling capacity
• Compatible with R-454B refrigerant for current and upcoming efficiency and environmental standards
• Factory-integrated flow control check valve enables heat pump compatibility without field-added components
• Factory-installed refrigerant leakage sensor and leak mitigation kit included
• 10-year coil and parts warranty available with online registration

Compatibility

Designed for use in split-system cooling and heat pump applications using R-454B refrigerant. The 5MXCD010AC6HCA is part of the Trane 5MXC-series and is intended for pairing with compatible outdoor condensing units or heat pump units rated for R-454B. Confirm outdoor unit tonnage and refrigerant compatibility before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician certified to handle A2L refrigerants. Shut down all power to the air handler or furnace at the disconnect and breaker panel before beginning coil installation or refrigerant connections. Connection size is 3/4 inch FNPT; verify line set compatibility and ensure all joints are leak-tested after system charging. Consult local mechanical codes and the manufacturer installation and operation manual for leak mitigation kit wiring requirements related to the factory-installed refrigerant sensor.

Technical Specifications

• Cooling Capacity: 36,000 to 60,000 BTU/h (3.5 to 5 tons)
• Refrigerant: R-454B
• Configuration: 4-way multi-position (upflow, downflow, horizontal)
• Cabinet Width: 24.5 inches
• Cabinet Height: 30 inches
• Cabinet Depth: 21 inches
• Connection Size: 3/4 inch
• Connection Type: FNPT
• Series: 5MXC
• Warranty: 10 years coil and parts with online registration

Standard Information

• Brand: Trane
• Manufacturer Part Number: 5MXCD010AC6HCA
