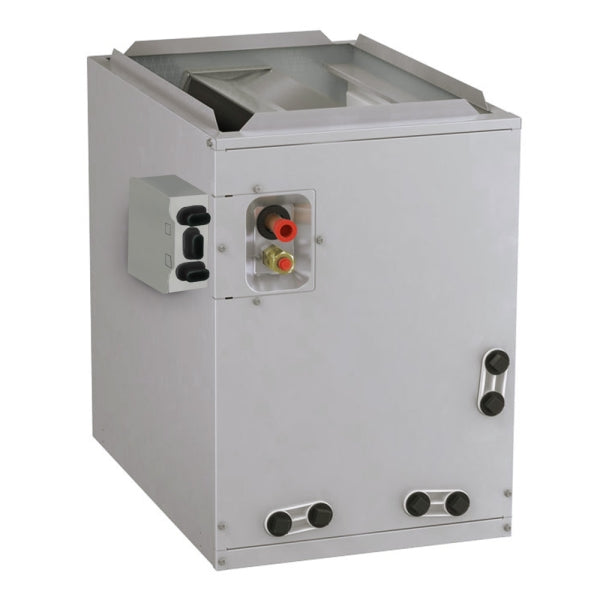

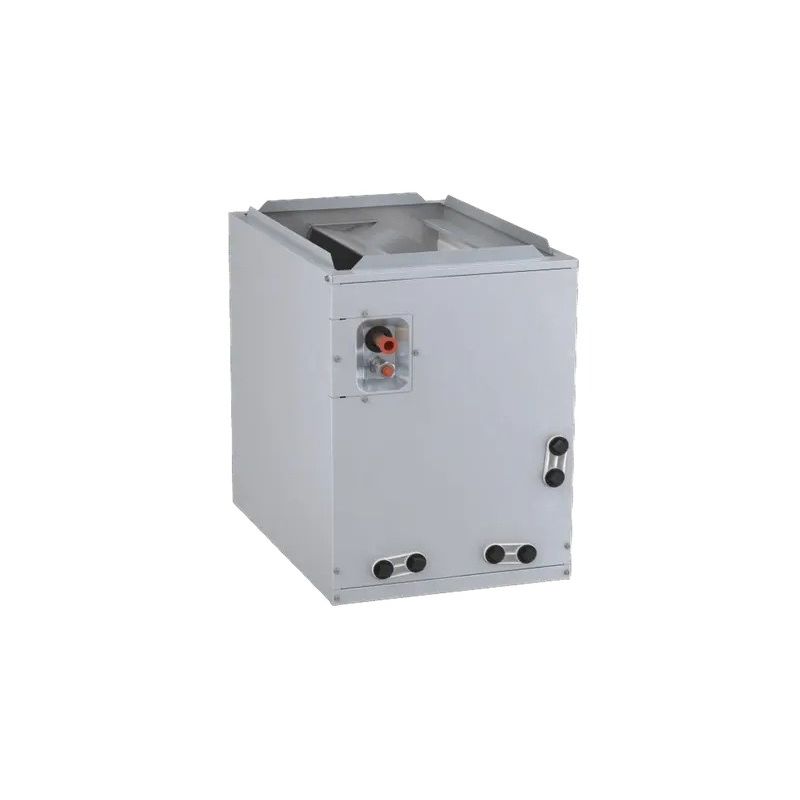

Trane 5MXCC007AC6HCA Multi-position Cased Evaporator Coil 36000 Btu/h 21 Inch Width R-454B

Product Description

The Trane 5MXCC007AC6HCA is a multi-position cased evaporator coil designed for residential split-system cooling and heat pump applications using R-454B refrigerant. Rated at 36,000 BTU/h nominal cooling capacity and housed in a 21-inch-wide cabinet, this coil is engineered to operate in upflow, downflow, or horizontal orientations without modification. A factory-integrated flow control check valve supports system efficiency across all mounting positions. The aluminum coil construction keeps weight low and resists corrosion over the service life of the unit. Licensed HVAC technicians install this coil as part of a matched split system or heat pump assembly.

This coil is suited for residential and light-commercial split-system installations where installation flexibility is required. The 21-inch cabinet width fits standard air handler and furnace cabinets sized for the D-width chassis. With a cooling capacity range of 18,000 to 42,000 BTU/h and compatibility with R-454B refrigerant, it is positioned for systems built to current low-global-warming-potential refrigerant standards. It is part of the Trane 5MXC series cased coil family and carries a 10-year coil and parts warranty with online registration.

Key Features

• Multi-position installation: upflow, downflow, and horizontal orientations supported
• R-454B refrigerant compatible, meeting current low-GWP requirements
• Factory-integrated flow control check valve for heat pump system operation
• Aluminum coil construction for corrosion resistance and reduced weight
• 21-inch cabinet width fits standard residential air handler chassis
• 10-year coil and parts warranty with online registration

Compatibility

Part of the Trane 5MXC-Series cased coil lineup, designed for use with R-454B split-system cooling and heat pump equipment. Compatible system tonnage ranges from 1.5 to 3.5 tons based on application. Verify matched system pairing with the outdoor unit manufacturer specifications before installation.

Installation Notes

Installation must be performed by a qualified, licensed HVAC technician in accordance with local mechanical codes and the manufacturer's installation instructions. De-energize all electrical circuits and recover any residual refrigerant charge before opening the refrigerant circuit. R-454B is an A2L mildly flammable refrigerant — follow all applicable safety protocols and consult the factory-supplied leak mitigation kit instructions included with the unit. Confirm cabinet orientation and duct connections are correctly configured for the selected airflow direction before startup.

Technical Specifications

• Cooling Capacity (Nominal): 36,000 BTU/h
• Cooling Capacity Range: 18,000 to 42,000 BTU/h
• Refrigerant: R-454B
• Cabinet Width: 21 inches
• Cabinet Height: 26 inches
• Cabinet Depth: 21 inches
• Airflow Configuration: Multi-Position (Upflow, Downflow, Horizontal)
• Coil Material: Aluminum
• Connection Type: FNPT
• Connection Size: 3/4 inch
• Efficiency Tier: Standard Efficiency
• Warranty: 10-Year Coil and Parts with Online Registration
• Series: 5MXC

Standard Information

• Brand: Trane
• Manufacturer Part Number: 5MXCC007AC6HCA
