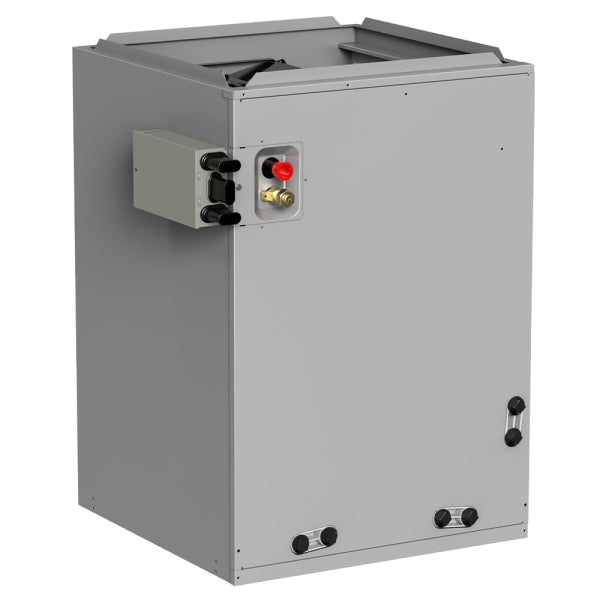

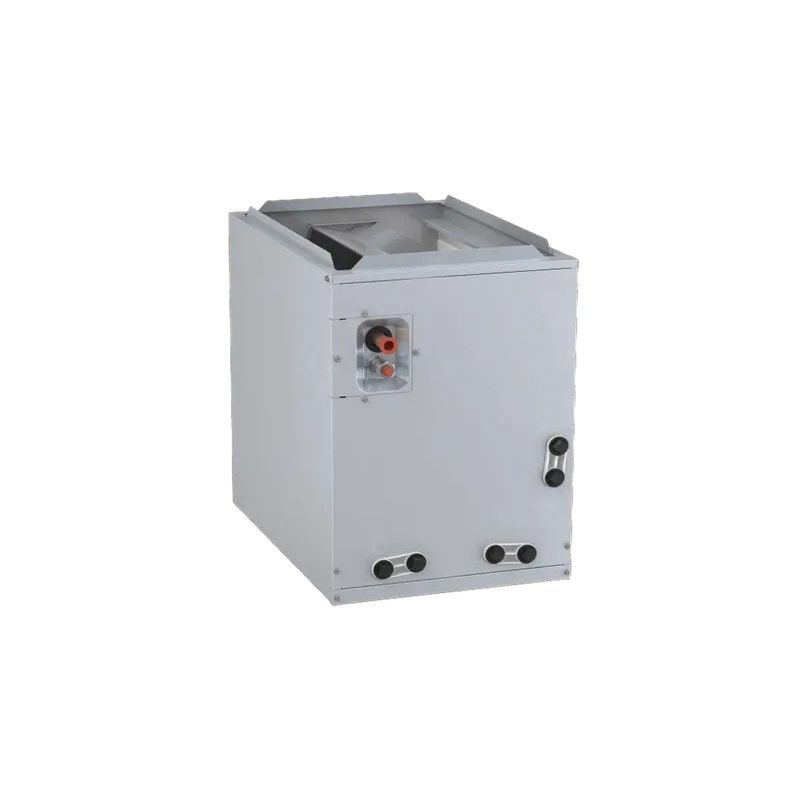

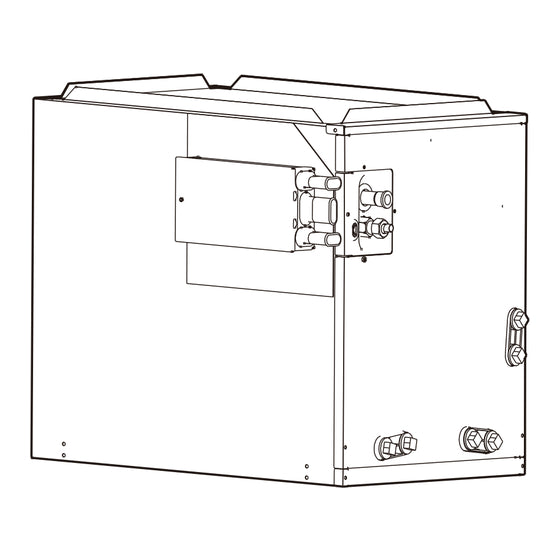

Trane 5MXCA003AC6HCA Multi-position Cased Evaporator Coil 1.5 to 3 Ton R-454B 14.5 Inch Cabinet

Product Description

The Trane 5MXCA003AC6HCA is a single-stage, multi-position cased evaporator coil designed for residential split-system cooling and heat pump applications using R-454B refrigerant. Part of the 5MXC-Series, this aluminum-construction coil handles a capacity range of 1.5 to 3 tons (18,000 to 36,000 BTU/h) and installs in upflow, downflow, or horizontal orientations. A factory-integrated flow control check valve is included to support system efficiency. The coil ships in a 14.5-inch-wide cabinet measuring 20 inches high by 21 inches deep. Licensed HVAC technicians install and commission this coil as part of a split-system or heat pump installation.

The 5MXCA003AC6HCA is suited for standard-efficiency residential split-system cooling and heat pump configurations rated from 1.5 to 3 tons. Its multi-position design makes it adaptable to a range of air handler and furnace configurations, including upflow and horizontal installations common in attics, closets, and utility rooms. The coil is AHRI-certified (AHRI number 216031080) and is rated for use with R-454B refrigerant, aligning with current low-GWP refrigerant requirements for new residential HVAC equipment.

Key Features

• Multi-position installation: upflow, downflow, or horizontal
• All-aluminum coil construction for corrosion resistance and durability
• Factory-integrated flow control check valve included
• Compatible with R-454B refrigerant for current regulatory compliance
• Drain pan with connections for both vertical and horizontal operation, plus horizontal auxiliary drain pan
• 10-year coil and parts warranty with online registration
• AHRI certified

Compatibility

Designed for use in residential split-system air conditioning and heat pump applications within the 1.5 to 3 ton capacity range using R-454B refrigerant. Consult Trane system matching documentation and AHRI certified combination listings to confirm compatibility with a specific condensing unit or air handler before installation.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer's installation instructions. Power down and lock out the system at the disconnect before any coil work. Verify the refrigerant circuit is recovered and the system is depressurized before opening any connections. Ensure the drain pan and auxiliary drain connections are properly plumbed and that the selected installation orientation matches the correct drain pan configuration for the unit.

Technical Specifications

• Cooling Capacity: 1.5 to 3 tons (18,000 to 36,000 BTU/h)
• Refrigerant: R-454B
• Configuration: Multi-position (upflow, downflow, horizontal)
• Coil Material: Aluminum
• Cabinet Width: 14.5 inches
• Cabinet Height: 20 inches
• Cabinet Depth: 21 inches
• Efficiency Tier: Standard Efficiency
• AHRI Number: 216031080
• UPC: 612461376664
• Warranty: 10 years coil and parts with online registration

Standard Information

• Brand: Trane
• Manufacturer Part Number: 5MXCA003AC6HCA
