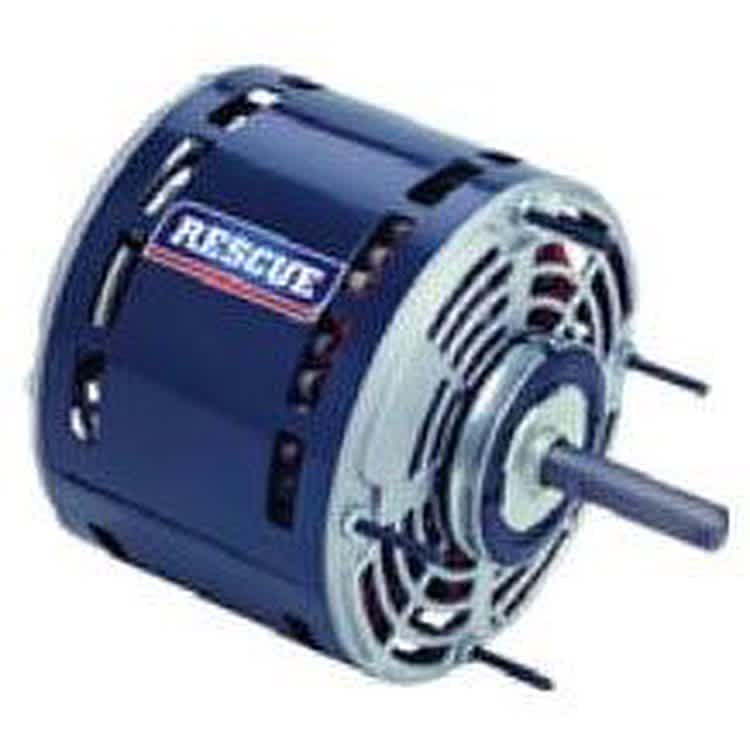

Trane 5470-US Motor; 3/4 HP, 1075 RPM, 115 Volt, 4-Speed

Product Description

The TRANE 5470-US is a 3/4 HP, 115V AC motor with a speed of 1075 RPM and 4 speeds. This motor is designed for blower and fan applications, featuring PSC technology and a CCW rotation. It has a 48 frame size, OAO enclosure, and automatic thermal protection. The motor includes a 20 UF at 370 V capacitor.

• 0.75 HP motor with 1075 RPM speed
• Operates on 115V AC power
• Features 4 speeds and CCW rotation

Product Highlights

This AC blower fan motor is suitable for various applications requiring multi-speed operation and reliable performance.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: 5470-US

Technical Specifications

• Bearing Type: Self Aligning Ball
• Efficiency (%): 70.8
• Enclosure Type: OAO
• Frame Size: 48
• Frequency Rating: 60 Hz
• Horsepower: 0.75
• Harness Length/Terminal Type: Quick Connect/Lead
• Insulation Class: B
• Inverter Duty: False
• Load Current (A): 8.1
• Locked Rotor Current (A): 18.84
• Motor Cap: 20 UF at 370 V
• Motor Type: AC, Blower, Fan
• Mounting Type: Hub Ring
• Number of Phase: 1
• Number of Speeds: 4
• Protector Type: Automatic
• Rotation: CCW
• Service Factor: 1
• Shaft Diameter (In): 0.5
• Shaft Length (In): 5
• Slinger: No
• Speed (RPM): 1075
• Standards: CSA,UR
• Technology: PSC
• Temperature Rating: 104 Deg. F
• Thermal Protector: True
• Voltage (VAC): 115
