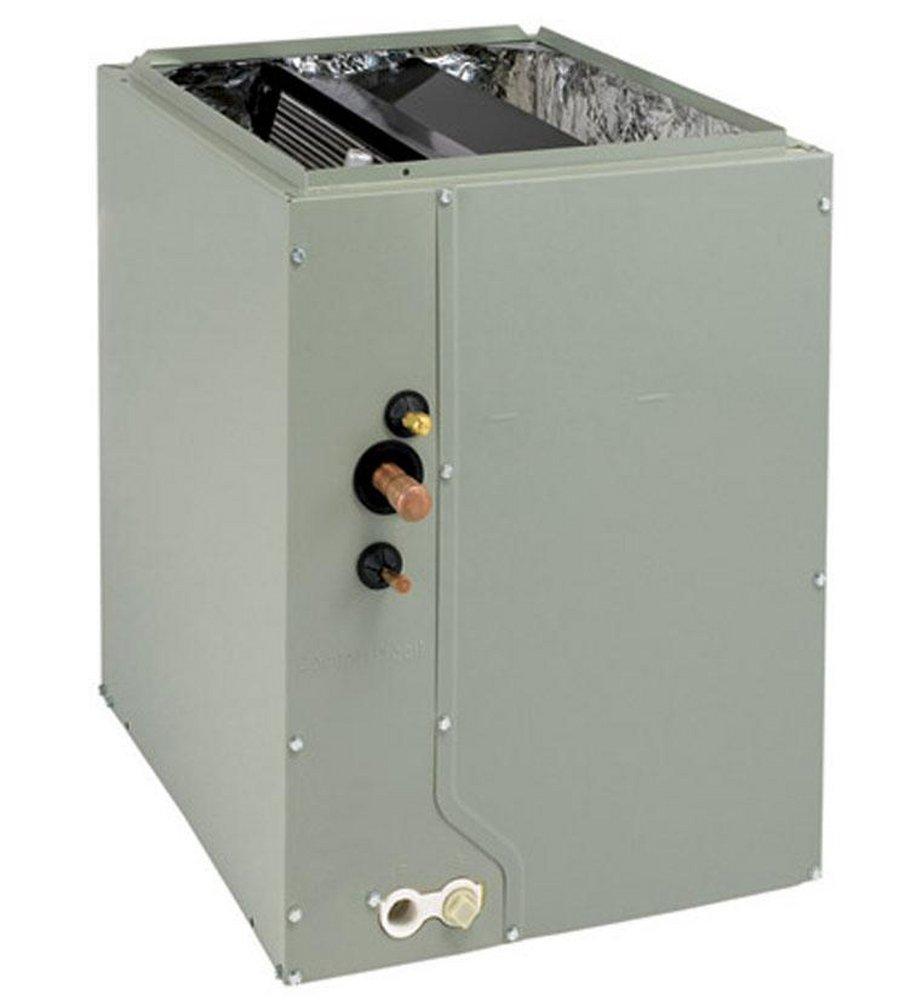

Trane 4TXCD008DS3HCB 4 ton convertible aluminum cased coil

Product Description

The TRANE 4TXCD008DS3HCB is designed to efficiently transfer heat in your HVAC system. This aluminum coil is more resistant to rust and corrosion than a standard copper coil. Together with the outdoor unit, it keeps your home at the comfortable temperature you want. It is compatible with R-410A refrigerant.

• More resistant to rust and corrosion than a standard copper coil
• Designed to efficiently transfer heat in your HVAC system
• Compatible with R-410A refrigerant

Product Highlights

The TRANE 4TXCD008DS3HCB ensures efficient heat transfer and dependable home comfort.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: 4TXCD008DS3HCB

Technical Specifications

• BTU: 8000
• CFM: 1800
• Coil Type: Cased-A Coil
• Configuration: Convertible, Downflow, Horizontal, Upflow
• Depth: 21-1/2
• Height: 26-9/10
• Indoor Outdoor: Indoor
• Liquid Line (OD): 3/8
• MBH: 8
• Material: Aluminum
• Max CFM: 1800
• Refrigerant: R-410A
• Refrigerant Control: TXV
• Refrigeration Control Type: TXV
• Suction Line (OD): 7/8
• Tonnage: 3.5 - 5 Ton
• UL Listed: No
• Width: 24-1/2
• A2L Compatible: No
• BTU Rating: 42,000 - 60,000 Btu/hr
• CFM Rating: 1,400 - 2,000 cfm
• Coil Rating: 14 FPI
• Connection Size: 7/8 x 3/8 in
• Connection Type: Brazed
• Enclosure Type: Cased
• Face Area: 6 sq-ft
• Number of Rows: 3
• Series: 4TXC
• Additional Information: 3/8 in Tube, Non-Bleed TXV Control, 3/4 in NPT Drain
• Metering Device: Non-Bleed TXV
