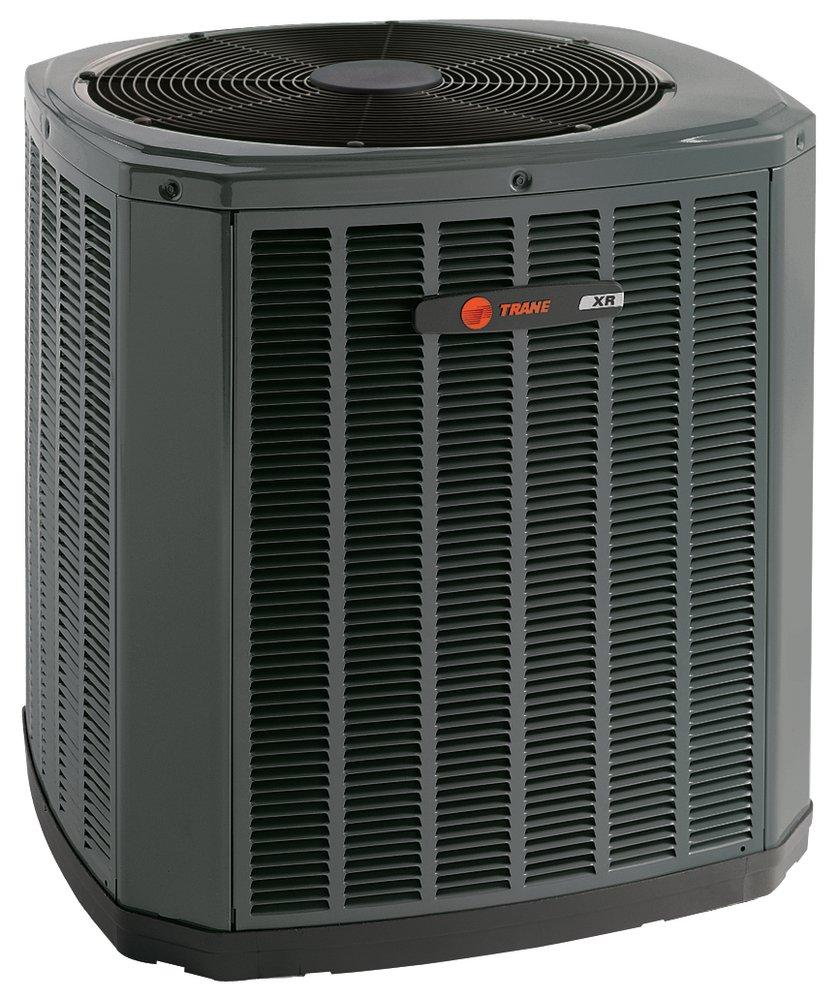

Trane 4TWR4030N1000A XR14 2.5 Ton Heat Pump 208/230V

Product Description

The TRANE 4TWR4030N1000A XR14 heat pump combines price with energy efficiency. This heat pump cools homes with a SEER2 rating up to 14.8. When heating, the XR14 heat pump has an HSPF2 rating of up to 7.8. The unit casing is constructed of heavy gauge, galvanized steel and painted with a weather-resistant powder paint finish.

• Unit casing is constructed of heavy gauge, galvanized steel and painted with a weather-resistant powder paint finish on all louvered panels and the fan top panel.
• Refrigeration system controls include condenser fan, compressor contactor and high pressure switch.
• The compressor features internal over temperature, pressure protection and total dipped hermetic motor.

Product Highlights

The TRANE XR14 heat pump provides efficient cooling and heating with robust construction and protective features.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: 4TWR4030N1000A

Technical Specifications

• BTU Cooling Rating: 30,000 Btu/hr
• Compressor Stages: Single Stage
• Compressor Type: Scroll
• Finish: Galvanized/Powder Painted
• HSPF2 Range: 7.8
• Liquid Line (OD): 3/8 in
• Material: Steel
• Max Fuse: 25 amps
• Min SEER: 14.0
• Model: 4TWR4
• Number of Stages: Single
• Phase: 1.0 ph
• Refrigerant Type: R-410A
• SEER Rating: 14.8
• Series: XR14
• Sound Level: 71 dBA
• Tonnage: 2.5 Ton
• Volts: 208/230 V
• A2L Compatible: No
• AMP: 15
• Coil Type: Spine Fin
• Decibel Rating (dB): 72 dB
• EER2: 12.0
• ETL Listed: Yes
• Energy Star Compliant: No
• Factory Std. Refrigerant Charge: 96 oz
• HSPF: 7.8
• HSPF2: 7.5
• Horsepower: 1/8 hp
• Max CFM: 2820 cfm
• Max Fuse Size: 25
• Power Source: Electric
• Refrigerant: R-410A
• Refrigerant Control: TXV
• Refrigeration Control Type: TXV
• SEER: 14.0
• SEER2: 14.3
• Sound Blanket: No
• Suction Line (OD): 3/4 in
