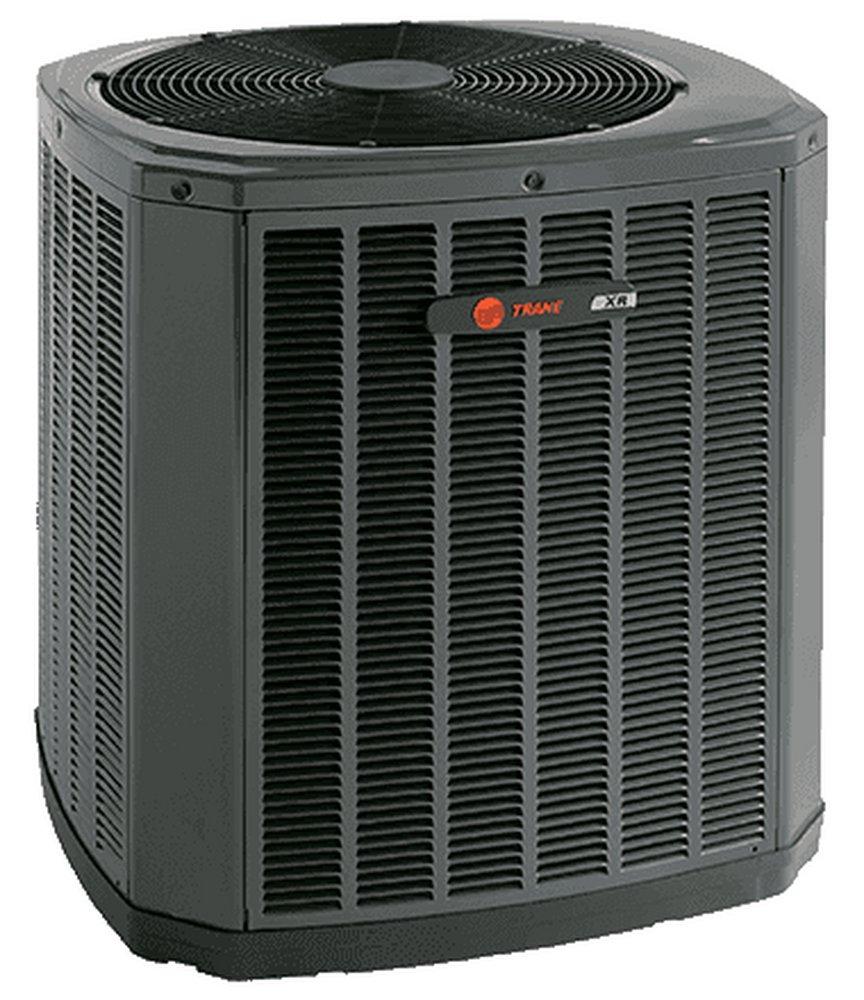

Trane 4TTR4030N1000A XR14 2.5 Ton Air Conditioner

Product Description

The TRANE 4TTR4030N1000A XR14 air conditioner is a 2.5 ton unit with a SEER2 rating of 14. It meets federal energy-efficiency standards, providing reliable cooling. This single-stage air conditioner operates quietly and is built for durability. Operates at outdoor ambient temperatures as high as 115°F.

• Unit casing is constructed of heavy gauge, galvanized steel and painted with a weather-resistant powder paint finish.
• Refrigeration system controls include condenser fan, compressor contactor and low and high pressure switches.
• The compressor features internal over temperature and pressure protection, centrifugal oil pump, and low vibration and noise.

Product Highlights

The XR14 air conditioner is energy STAR qualified with a SEER2 rating of up to 14.8. Cooling capacities are matched with a wide selection of air handlers and furnace coils that are AHRI certified.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: 4TTR4030N1000A

Technical Specifications

• BTU Rating: 30,000 Btu/hr
• Compressor Type: CLIMATUFF®
• Finish: Galvanized
• Liquid Line Size: 3/8 in
• Material: Steel
• Max Amps: 30.0
• Max Fuse: 25 amps
• Model: 4TTR
• Number of Stages: Single Stage
• Phase: 1.0 ph
• Refrigerant Type: R-410A
• SEER2 Range: 14
• Series: XR14
• Sound Level: 71 dBA
• Tonnage: 2.5 Ton
• Voltage: 208/230 V
