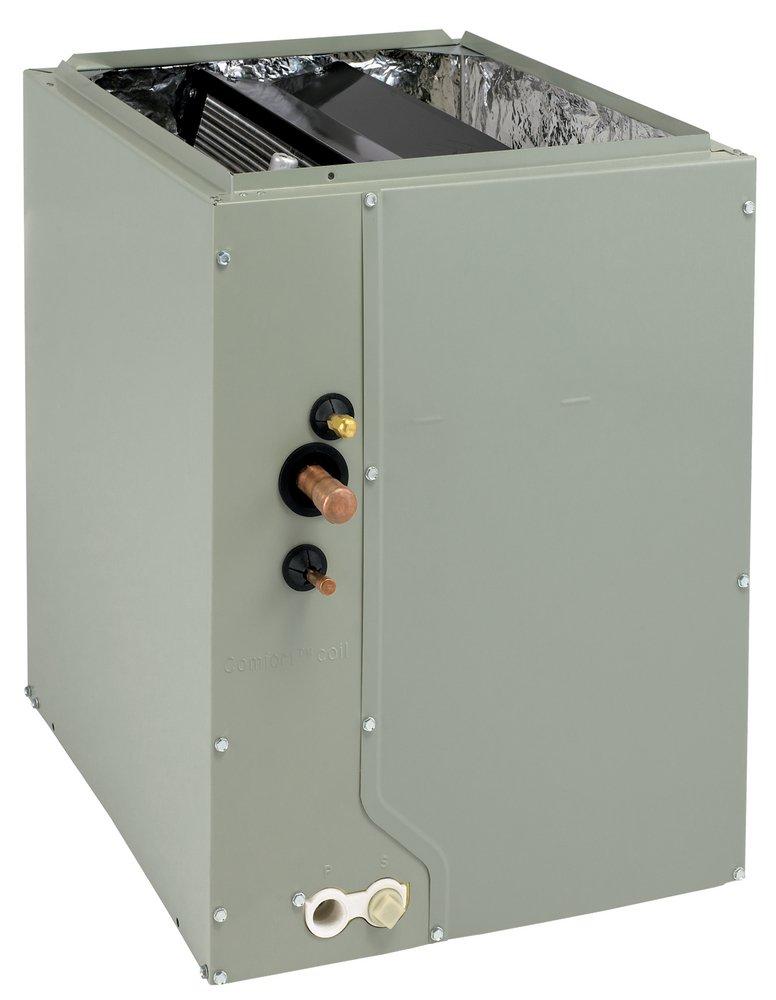

Trane 4PXCDU48BS3HAB Comfort Coil 4 Ton

Product Description

The Trane 4PXCDU48BS3HAB is an R-410A aluminum high-efficiency cased upflow/downflow coil. It efficiently transfers heat in your HVAC system, working with the outdoor unit to maintain a comfortable temperature. The all-aluminum coil is more resistant to rust and corrosion than standard copper coils. The 100% foil-backed insulation makes coil operation quieter and speeds up cleaning and servicing.

• All aluminum coil
• More resistant to rust and corrosion than a standard copper coil
• 100% foil backed insulation

Product Highlights

Enjoy enhanced comfort and durability with this Trane aluminum coil, designed for efficient heat transfer and easy maintenance.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: 4PXCDU48BS3HAB

Technical Specifications

• Coil Circuitry: Heat Pump
• Coil Type: A
• Configuration: Upflow
• Connection Type: Brazed
• Line Size - Liquid (in): 3/8
• Line Size - Suction (In): 7/8
• Material: Aluminum
• Model Number: 4PXCU
• Nominal Capacity BTU Rating: 48000
• Refrigerant Control: Non-bleed TXV
• Refrigerant Type: R-410A
• Tonnage: 2.0-5.0 Ton
• A2L Compatible: No
• BTU: 48000
• CFM: 1800
• Coating: Galvanized
• Collection: Comfort
• Depth: 21-1/2
• Height: 26-9/10
• Indoor Outdoor: Indoor
• Liquid Line (OD): 3/8
• MBH: 48
• Max CFM: 1800
• Refrigerant: R-410A
• Refrigeration Control Type: TXV
• Suction Line (OD): 7/8
• UL Listed: No
• Width: 24-1/2
