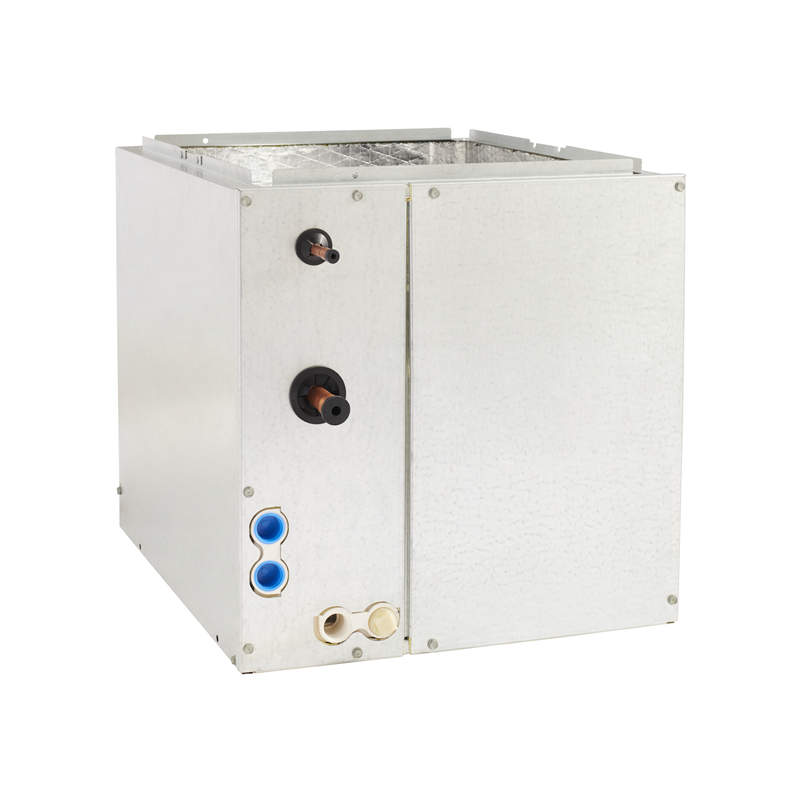

Trane 4MXCC007AC6HCB 4MXC 3 - 4 Ton Coil 21 in. Replaces 4MXCC017AC6HCB

Product Description

The TRANE 4MXCC007AC6HCB 4MXC 3 - 4 Ton Downflow, Horizontal and Upflow Type A 21 in. Coil is a superior option for almost any application while maintaining the entire unit's efficiency. It features a factory-integrated flow control check valve for enhanced energy optimization. Compatible with both AC-only and heat pump condensers, this coil is ideal for many applications.

• 3 - 4 ton multi-positional evaporator coil
• Made in the USA with precision and reliability
• Works in almost any upflow, downflow, or horizontal system setup

Product Highlights

The RunTru by Trane 4MXCC007AC6HCB is rated for 3 to 4 tons of heating and cooling and can be installed with either an AC-only condenser or a heat pump condenser.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: 4MXCC007AC6HCB
• Country of Origin: USA

Technical Specifications

• SKU: 4MXCC007AC6HCB
• Brand/Manufacturer: Trane
• Replaces: 4MXCC017AC6HCB
• Configuration: Convertible, Upflow, Downflow, Horizontal Left, Horizontal Right
• Refrigerant: R410A
• Liquid Line: 3/8"
• Suction Line: 7/8"
• Tonnage: 4 Ton
• Connection: Sweat
• Height: 26"
• Width: 21"
• Depth: 21"
• Model: 4MXCC007AC6
• UPC: 647535526706
• Product Height (in): 26
• Air Flow Direction: Horizontal, Vertical
• Product Length (in): 21
• Cooling Capacity: 3 Ton, 3.5 Ton, 4 Ton
• Product Width (in): 21
• Liquid Line Size: 3/8 inch
• Suction Line Size: 7/8 inch
• Air Flow Type: Multiposition
• Cabinet Code: C (21.0)
• Coil Type: A
• Cooling Capacity (btu/h): 48,000
• Cooling Capacity (Tons): 4.0
• Enclosure Type: Cased
• Length (in): 21.00
• Refrigerant Type: R410A
• Series: 4MXC
• Supply Air Opening (in): 19.50 X 19.00
• BTU: 48000
• Casing: Cased
• Collection: 4MXC
• Liquid Line (OD): 3/8 in
• MBH: 48
• Material: Aluminum
• Suction Line (OD): 7/8 in
• UL Listed: No
