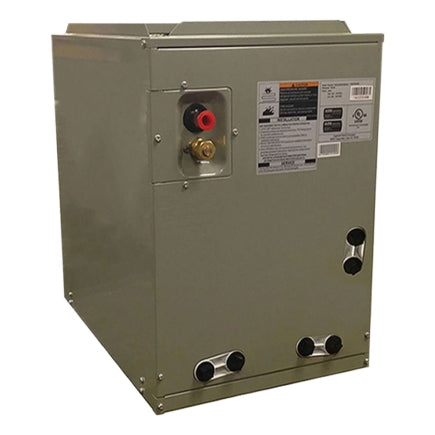

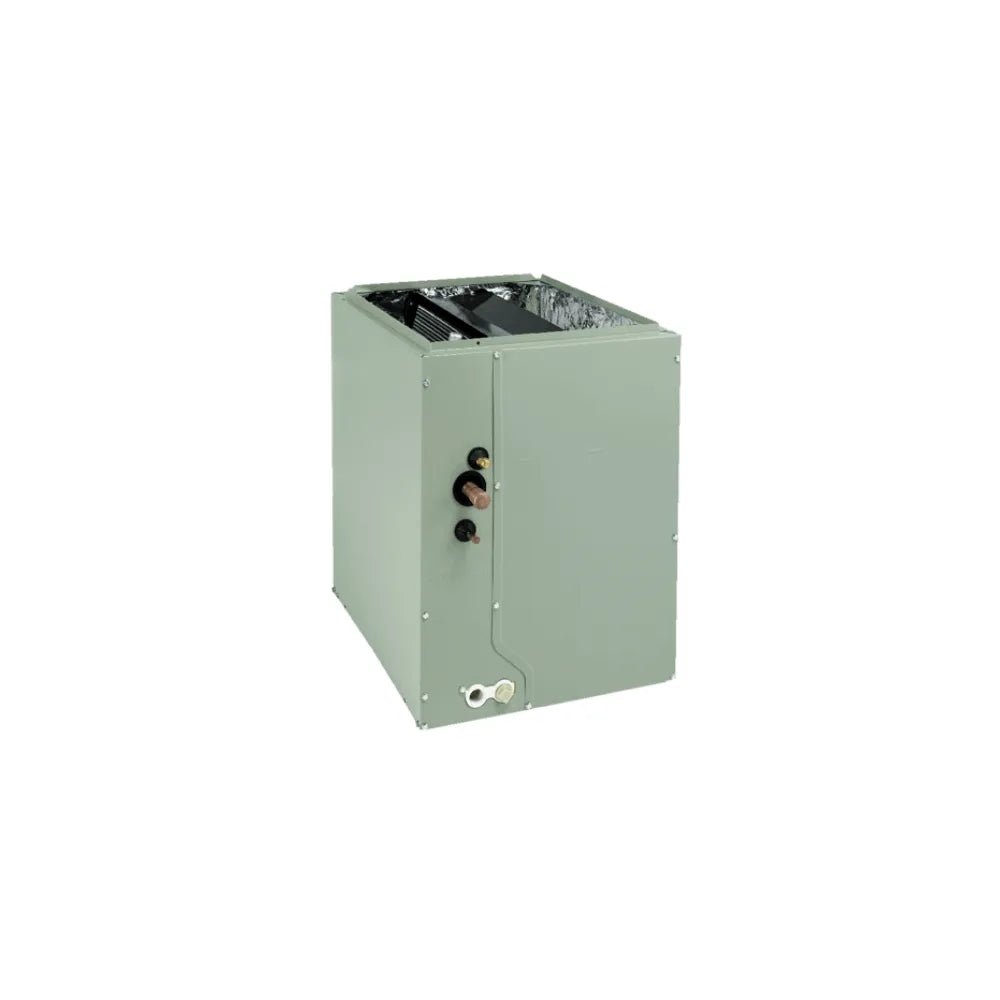

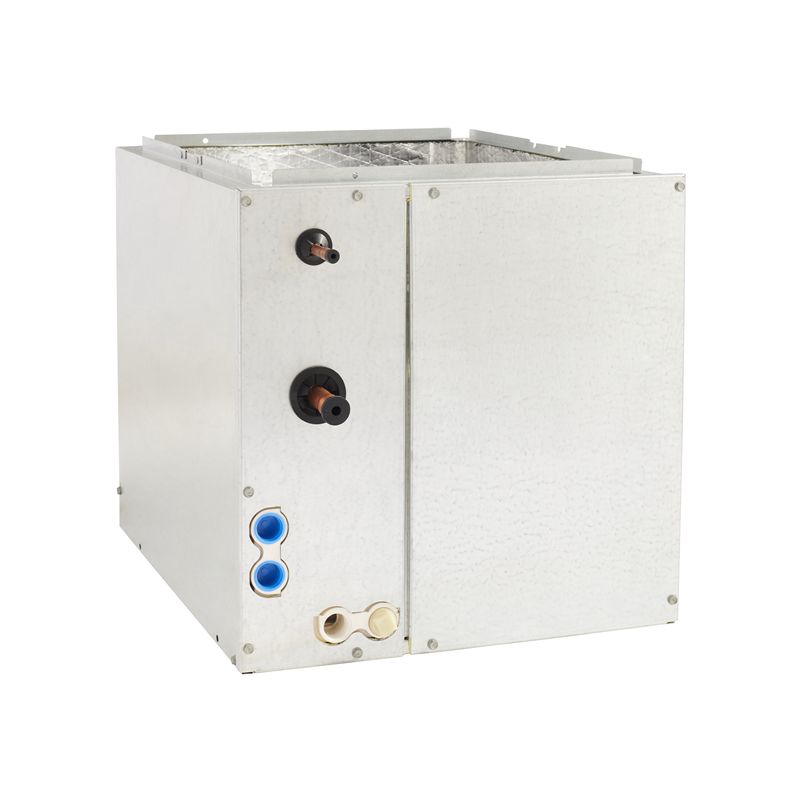

Trane 4MXCB004AC6HCB 2 - 3 Ton Downflow, Horizontal and Upflow Type A 17-1/2 in. Coil

TRANE
Brand: TRANE
SKU: 4MXCB004AC6HCB
Availability: Out Of Stock
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

The TRANE 4MXCB004AC6HCB multipositional coil is a superior option for almost any application while maintaining the entire unit's efficiency with a factory-integrated TXV kit for enhanced energy optimization. Rated for 1.5 to 3 tons of heating and cooling, this coil can be installed with either an AC-only condenser or a heat pump condenser. It features a sturdy and compact design.

  • 1.5 - 3 ton multi-positional evaporator coil
  • Proudly Made in the USA: High-quality HVAC equipment crafted with precision and reliability
  • Works in almost any upflow, downflow, or horizontal system setup

Product Highlights

The RunTru by Trane 4MXCB004AC6HCB is ideal for many applications and increases the overall efficiency of the entire unit.

Product Information

Standard Information

  • Brand: TRANE
  • Manufacturer Part Number: 4MXCB004AC6HCB
  • Country of Origin: USA
Technical Specifications
Brand/Manufacturer
Trane
Configuration
Multi-Positional
Refrigerant
R410A
Liquid Line
3/8"
Suction Line
3/4"
Tonnage
3 Ton
Connection
Sweat
Height
20"
Width
17.5"
Depth
21"
SKU
4MXCB004AC6HCB
Additional Information
3/8 in Gas, 3/4 in Liquid
BTU Rating
18,000 - 36,000 Btu/hr
CFM Rating
600 - 1,200 cfm
Coil Type
Cased-A Coil
Enclosure Type
Cased
Face Area
3.85 sq-ft
Fin Size
17 FPI
Finish
Galvanized
Material
Aluminum
Metering Device
Piston
Number of Rows
4
Refrigerant Type
R-410A
Series
4MXC
Suitable For Use With
Cooling and Heat Pumps
Model
4MXCB004AC6HCB
Air Flow Direction
Horizontal, Vertical
Cooling Capacity
1.5 Ton, 2 Ton, 2.5 Ton, 3 Ton
Line Set Connection Type
Sweat
Liquid Line Size
3/8 inch
Suction Line Size
3/4 inch
Capacity
18000-36000 BTUh
