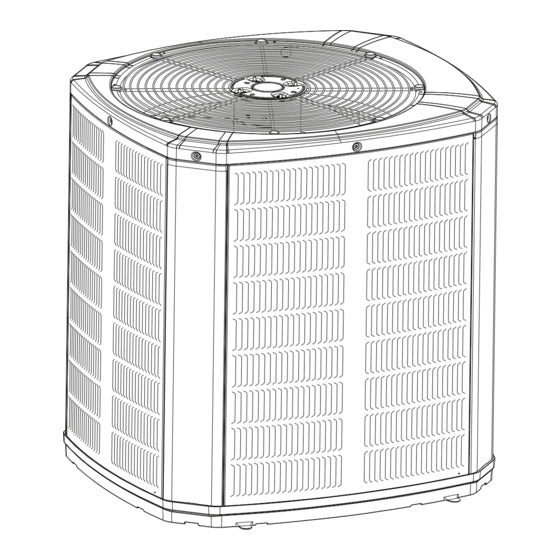

Trane 4A7V0048A1000B air conditioner 4 ton

Product Description

The TRANE 4A7V0048A1000B is a 4 ton air conditioner with AccuComfort™ technology, allowing efficient speed adjustments to maintain comfort. With up to a 21 SEER rating, this multi-stage cooling unit operates at 208/230 V. It features a scroll compressor and delivers 4517 cfm, ensuring optimal performance.

• AccuComfort™ variable speed adjusts for efficient operation.
• Wider operating range maintains performance when others cycle off.
• Consistent temperature control with AccuComfort™ technology.

Product Highlights

This air conditioner maximizes home comfort with lower operating costs and enhanced humidity control.

Product Information

Standard Information

• Brand: TRANE
• Manufacturer Part Number: 4A7V0048A1000B

Technical Specifications

• BTU Rating: 48,000 Btu/hr
• CFM Rating: 4517 cfm
• Compressor Type: Scroll
• Connection Type: Female Brazed
• Finish: Galvanized/Powder-Coated
• Frequency Rating: 60 Hz
• HP Rating: 1/3 hp
• Material: Steel
• Max Amps: 35.0
• Model Number: 4A7V0
• Model: 4A7V0048A
• Number of Stages: Single Stage
• Phase: 1.0 ph
• Refrigerant Type: R-410A
• Rotational Speed: 200 to 1200 rpm
• SEER2 Range: 20
• Sound Level: 57 dBA
• Temperature Rating: 55 to 120 deg F
• Tonnage: 4.0 Ton
• Voltage: 208/230 V
• Power Connections: 208/230/1/60
• Minimum Branch Circuit Ampacity: 23.0
• Branch Circuit Protection Rating - MAX (Amps): 35
• Compressor - No. Used - No. Speeds: 1–VARIABLE
• Refrigerant: R410–A
• Outdoor Fan Diameter (in.): 27.5
• Outdoor Fan Type Drive - No. Speeds: DIRECT — VARIABLE
• CFM @ 0.0 in. W.G.: 4560
• Number of Motors: 1
• Motor HP: 1/3
• Motor Speed RPM: 200 — 1200
• Volts/PH/HZ: 208/230/1/60
• F.L. Amps: 2.8
• Outdoor Coil Type: SPINE FIN™
• Rows: 1
• F.P.I.: 24
• Face Area (SQ. FT.): 27.87
• Tube Size (IN.): 3/8
• Refrigerant LBS. — R-410A (O.D. Unit): 11 lb — 1 oz
• Factory Supplied Line Size - IN. O.D. GAS: 7/8 (h)
• Factory Supplied Line Size - IN. O.D. LIQ.: 3/8
• Subcooling: 10°
