Trane YSJ072A4SAH0NTV 6 Ton Rooftop Gas Electric 460V

Product Description

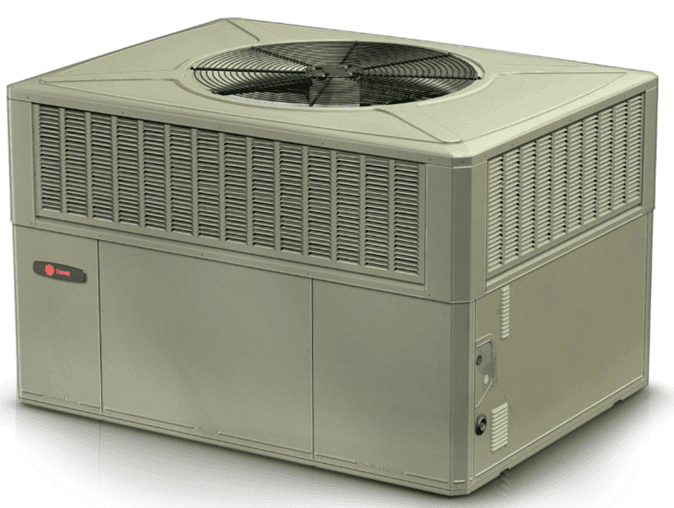

The TRANE YSJ072A4SAH0NTV is a 6-ton packaged rooftop gas/electric unit from the Precedent series, built for commercial cooling and heating applications. Operating on R-410A refrigerant and powered by a 460V 3-phase electrical supply, this self-contained rooftop unit integrates a direct-fired gas heat section with a mechanical cooling system into a single cabinet. It is designed for curb-mount installation on low-slope commercial rooftops and is typically commissioned by licensed commercial HVAC contractors or journeyman technicians familiar with packaged rooftop equipment.

The YSJ072A4SAH0NTV is suited for light commercial and mid-size commercial applications where a single rooftop unit handles both heating and cooling for a conditioned space. Typical installations include retail, office, and light industrial facilities requiring a dedicated packaged unit per zone. The 6-ton cooling capacity and 3-phase power requirement make this unit appropriate for spaces served by a commercial electrical service. No compatible model numbers or superseded part numbers were provided in the available product data.

Key Features

• 6-ton cooling capacity in a packaged rooftop configuration
• Gas/electric design combines direct-fired heating and mechanical cooling in one cabinet
• R-410A refrigerant — zero ozone depletion potential
• 460V 3-phase power input — suited for commercial electrical service
• Self-contained design simplifies curb-mount rooftop installation

Compatibility

Designed as an OEM packaged rooftop gas/electric unit for commercial HVAC applications requiring a 6-ton, 460V 3-phase, R-410A system. No specific compatible model numbers or replacement part numbers were provided in the available data.

Installation Notes

Installation must be performed by licensed commercial HVAC and electrical contractors in accordance with local mechanical codes, the National Electrical Code (NEC), and the International Mechanical Code (IMC). Disconnect and lock out all electrical power and shut off the gas supply at the service valve before performing any service or installation work. Verify that the roof curb is level and properly sealed before setting the unit to prevent water intrusion. Refrigerant handling must be performed by EPA Section 608 certified technicians.

Technical Specifications

• Unit Type: Gas-Pack (Packaged Gas/Electric)
• Cooling Capacity: 6 tons
• Refrigerant: R-410A
• Voltage: 460V
• Phase: 3-Phase

Standard Information

• Brand: TRANE
• Manufacturer Part Number: YSJ072A4SAH0NTV
