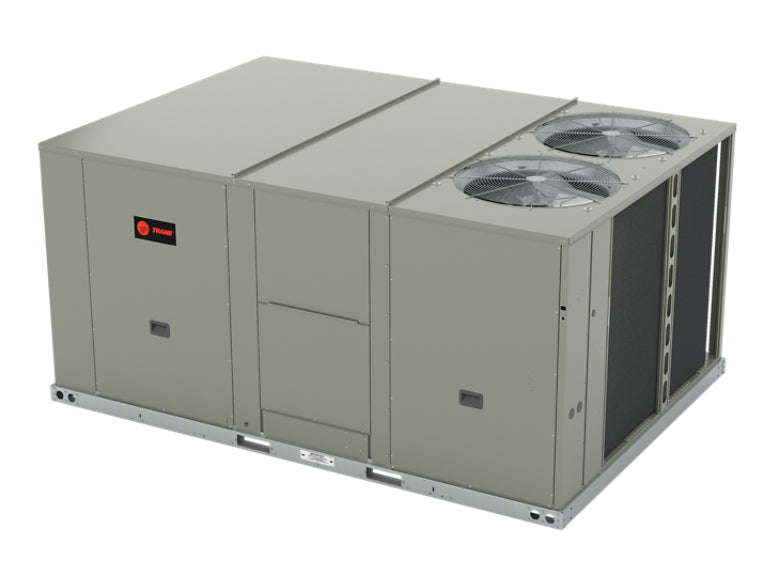

Trane YHD240G3RHD031K 20 Ton Gas Pack Rooftop Unit

Product Description

The TRANE YHD240G3RHD031K is a commercial packaged rooftop unit (RTU) combining DX cooling and gas heat in a single cabinet. Rated at 20 tons of cooling capacity, it operates on 208/230V three-phase power, making it suited for light commercial and mid-size commercial rooftop applications. The gas-electric configuration delivers both heating and cooling from one unit, reducing rooftop penetrations and simplifying service access. Licensed commercial HVAC technicians and mechanical contractors are the typical installing trades for a unit of this class and tonnage.

This RTU is intended for commercial rooftop installation where a single packaged gas-electric unit is specified. At 20 tons, it is sized for mid-range commercial spaces such as retail, office, or light industrial buildings. The 208/230V three-phase electrical supply requirement means a dedicated commercial power feed is necessary at the curb connection. The gas-pack configuration integrates the heat exchanger, burner assembly, DX cooling coil, and blower into one weatherproof cabinet mounted on a roof curb.

Key Features

• 20-ton cooling capacity for mid-size commercial applications
• Gas-electric (gas-pack) configuration combines heating and cooling in one cabinet
• 208/230V three-phase power supply for commercial electrical infrastructure
• Single rooftop installation reduces mechanical room requirements and rooftop penetrations
• Packaged design simplifies service access with all components in one enclosure

Compatibility

Designed as an OEM packaged rooftop gas-electric unit for commercial rooftop curb mounting applications rated at 20 tons with three-phase power infrastructure.

Installation Notes

Installation must be performed by a licensed commercial HVAC contractor in compliance with applicable mechanical and electrical codes, including local amendments to ASHRAE standards and the NEC for three-phase commercial equipment. Disconnect and lock out all electrical power and shut off the gas supply before servicing any components. The unit requires a matching roof curb or a field-fabricated curb meeting the manufacturer's dimensional requirements for proper support and weatherproofing. Refrigerant work must be performed by an EPA Section 608 certified technician.

Technical Specifications

• Unit Type: Gas-Pack (Gas-Electric Packaged Rooftop Unit)
• Cooling Capacity: 20 tons
• Voltage: 208/230V
• Phase: 3-phase

Standard Information

• Brand: TRANE
• Manufacturer Part Number: YHD240G3RHD031K
