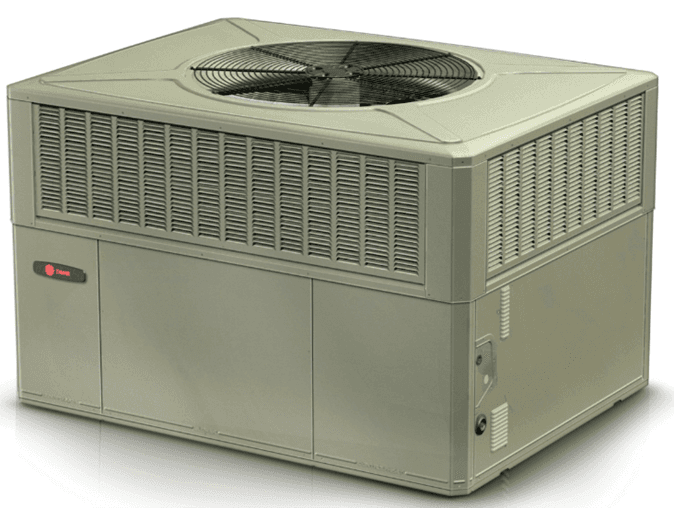

Trane YHC060E4RLA4J6Z Rooftop Gas-pack 5 Ton 460V 3-phase

Product Description

The TRANE YHC060E4RLA4J6Z is a commercial packaged rooftop gas-pack unit from the Voyager product line, combining gas heating and electric cooling in a single rooftop-mounted cabinet. It carries a nominal cooling capacity of 5 tons and operates on 460-volt, 3-phase power, making it suited for light commercial buildings where a single piece of equipment handles both heating and cooling loads. Licensed commercial HVAC technicians typically handle specification, installation, and commissioning of this class of equipment.

This unit is designed for light commercial rooftop applications including retail spaces, small office buildings, and similar low-rise commercial structures. As a gas-pack configuration, it supplies conditioned air through a ducted rooftop curb installation, eliminating the need for separate indoor heating equipment. The 460-volt, 3-phase electrical requirement positions it for buildings with commercial electrical services rather than standard single-phase residential supply.

Key Features

• Gas-pack configuration combines gas heat and electric cooling in one rooftop cabinet
• 5-ton nominal cooling capacity suitable for light commercial cooling loads
• 460-volt, 3-phase power supply for commercial electrical infrastructure
• Single-piece rooftop design simplifies installation and reduces mechanical room requirements
• Voyager product line engineering for commercial-grade duty cycles

Compatibility

Designed as an OEM rooftop gas-pack replacement or new-installation unit for light commercial applications requiring 5-ton, 460-volt, 3-phase packaged rooftop equipment mounted on a standard commercial roof curb.

Installation Notes

Installation must be performed by a licensed commercial HVAC contractor familiar with rooftop curb mounting, commercial ductwork, and 3-phase electrical connections per NEC requirements. Disconnect all electrical power and shut off the gas supply at the service valve before performing any service or wiring work on this unit. Do not operate the unit without a properly sealed and flashed roof curb, as improper curb installation can cause water intrusion and structural issues. Gas piping connections must comply with applicable local codes and IFGC requirements.

Technical Specifications

• Unit Type: Gas-Pack
• Nominal Cooling Capacity: 5 tons
• Voltage: 460 volts
• Phase: 3-phase

Standard Information

• Brand: TRANE
• Manufacturer Part Number: YHC060E4RLA4J6Z
