Trane YHC047E4RLA005D Rooftop Gas Electric Unit 4 Ton 460V

Product Description

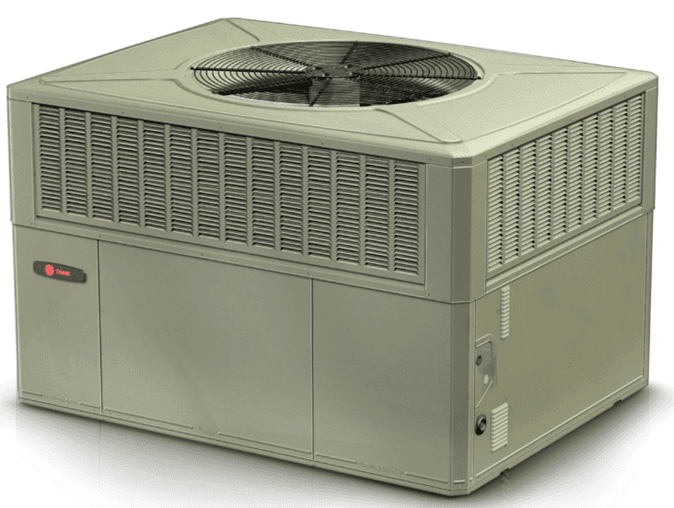

The TRANE YHC047E4RLA005D is a light commercial packaged rooftop gas/electric unit designed for rooftop installation on commercial buildings. It provides 4 tons of nominal cooling capacity and operates on 460 volts, 60 Hz, 3-phase power. The unit is a gas-pack configuration, combining gas heating and electric cooling in a single self-contained cabinet. Installation and commissioning are typically performed by licensed commercial HVAC technicians familiar with packaged rooftop equipment. R-410A refrigerant is used in the refrigeration circuit.

This unit is suited for light commercial applications such as small retail spaces, office buildings, and similar single-zone or multi-zone commercial structures requiring a self-contained heating and cooling solution. The packaged rooftop design consolidates all mechanical components in one cabinet, simplifying the mechanical room footprint and reducing interior space requirements. It is intended for rooftop curb mounting with ductwork connections made at the unit.

Key Features

• 4-ton nominal cooling capacity for light commercial applications
• Gas-pack configuration combining gas heat and electric cooling in one cabinet
• 460V, 60 Hz, 3-phase power supply for commercial electrical systems
• Self-contained packaged design simplifies rooftop installation and service access
• R-410A refrigerant circuit

Compatibility

Designed as an OEM packaged rooftop gas/electric unit for light commercial applications requiring 4-ton nominal cooling capacity at 460V, 3-phase power.

Installation Notes

Installation must be performed by a licensed commercial HVAC technician in accordance with applicable mechanical and electrical codes, including ASHRAE, NEC, and local jurisdiction requirements. Disconnect and lock out all electrical power at the disconnect switch before servicing any components. The unit requires a properly sized rooftop curb for mounting and must be connected to supply and return ductwork per the unit submittals. Do not operate the unit without verifying refrigerant circuit integrity and proper electrical phasing on 3-phase supply connections.

Technical Specifications

• Unit Type: Gas-Pack
• Nominal Cooling Capacity: 4 Ton
• Voltage: 460V, 60 Hz, 3-Phase
• Refrigerant: R-410A

Standard Information

• Brand: TRANE
• Manufacturer Part Number: YHC047E4RLA005D
