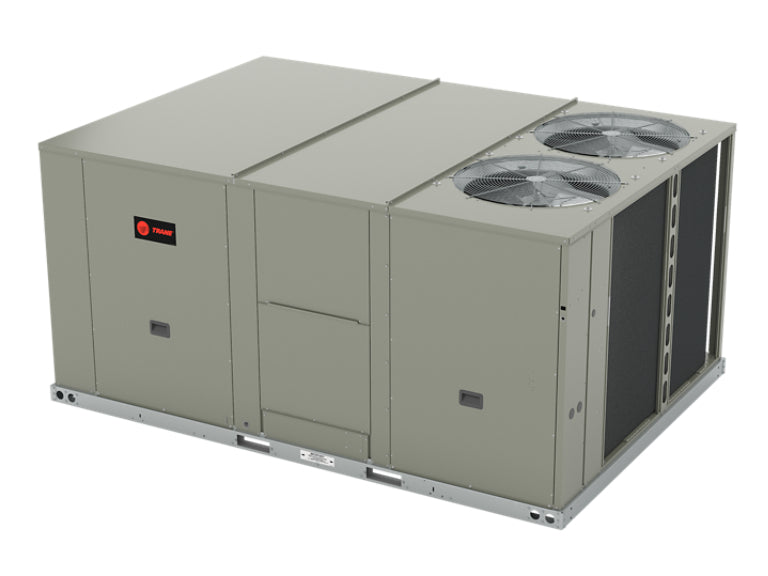

Trane WSC120H4RPB6KFP Heat Pump 10 Ton 460V 3-phase

Product Description

The TRANE WSC120H4RPB6KFP is a commercial packaged, self-contained heat pump unit rated at 120 MBh (10 tons) nominal gross cooling capacity. It operates on 460-volt, 60 Hz, 3-phase power, making it suited for light commercial and commercial rooftop or ground-level installations. The self-contained, packaged design houses all refrigeration and air-handling components within a single cabinet, reducing field labor for refrigerant piping and simplifying start-up procedures. Charged with R-410A refrigerant, this unit delivers both cooling and heating operation through the reverse-cycle heat pump function. Installation is typically performed by licensed commercial HVAC mechanics familiar with packaged equipment and 3-phase electrical systems.

The WSC120H4RPB6KFP is intended for commercial applications where a single packaged solution is required to handle significant cooling and heating loads. Typical install scenarios include retail buildings, light industrial spaces, schools, and similar structures requiring 10-ton capacity. The 460-volt, 3-phase electrical configuration aligns with standard commercial power distribution found in these building types. All major system components arrive factory-assembled and factory-charged, allowing for straightforward mechanical and electrical connection on site.

Key Features

• 10-ton (120 MBh) nominal gross cooling capacity for commercial load requirements
• Heat pump operation provides both cooling and heating from a single packaged unit
• 460-volt, 60 Hz, 3-phase power configuration matches standard commercial electrical service
• Self-contained packaged design consolidates refrigeration and air-handling in one cabinet
• Factory-assembled and factory-charged for streamlined field installation

Compatibility

Designed as an OEM packaged heat pump unit for commercial HVAC applications requiring 10-ton capacity on a 460-volt, 3-phase electrical supply.

Installation Notes

Installation must be performed by a licensed commercial HVAC technician in accordance with applicable mechanical and electrical codes, including NEC requirements for 3-phase commercial equipment. Disconnect and lock out all electrical power before servicing any components. Verify that the supply voltage, phase configuration, and circuit protection match the unit nameplate before energizing. Follow the manufacturer installation instructions for equipment pad or rooftop curb mounting, condensate drainage, and ductwork connections.

Technical Specifications

• Unit Type: Heat Pump
• Cooling Capacity: 10 tons (120 MBh)
• Voltage: 460 volts, 60 Hz, 3-phase

Standard Information

• Brand: TRANE
• Manufacturer Part Number: WSC120H4RPB6KFP
