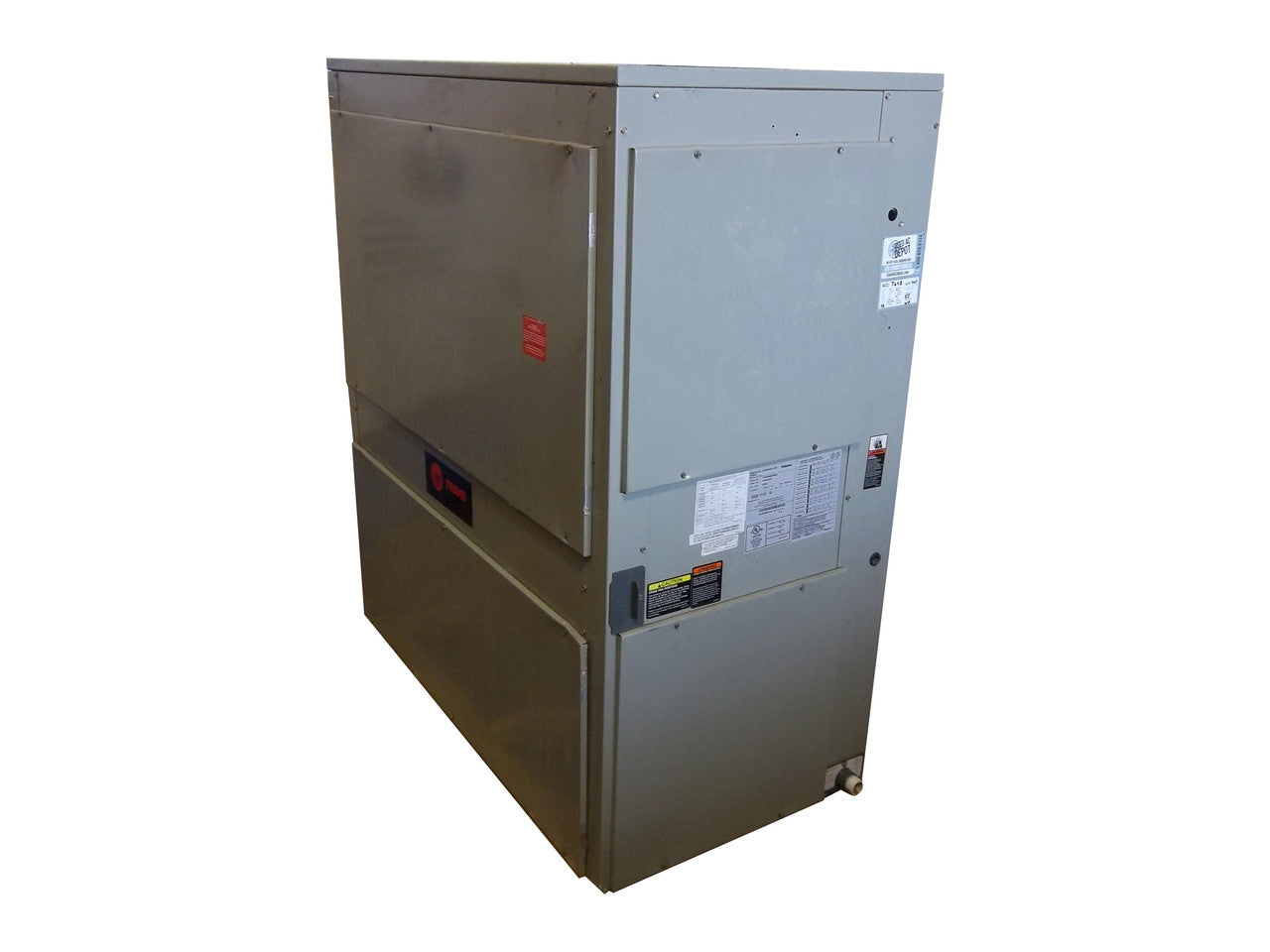

Trane TWE09043BAAP01H Odyssey Air Handler 7.5 Ton

Product Description

The TRANE TWE09043BAAP01H is a 7.5-ton commercial air handler built for light commercial split-system cooling applications. Part of the Odyssey split-system product line, this unit operates on 208/230-volt, 3-phase power and is designed for convertible installation configurations. It serves as the indoor component of a split-system, circulating conditioned air through the building envelope. Licensed HVAC technicians typically handle installation and commissioning of this class of equipment in light commercial settings.

The TWE09043BAAP01H is suited for light commercial applications where a high-capacity indoor air handler is required as part of a matched split-system configuration. Its convertible design allows flexibility in installation orientation, making it adaptable to a range of mechanical room layouts and airflow requirements. This unit is intended for use in commercial buildings such as retail spaces, offices, and light industrial facilities where consistent, reliable airflow distribution is essential.

Key Features

• 7.5-ton cooling capacity for light commercial applications
• 208/230-volt, 3-phase power for compatibility with commercial electrical services
• Convertible configuration supports flexible installation orientations
• Designed as the indoor air handler component of a matched split-system
• Odyssey product line engineering for light commercial split-system use

Compatibility

Designed as an OEM-matched indoor air handler for light commercial split-system cooling configurations. Specific outdoor unit compatibility should be confirmed against Trane Odyssey product line documentation before installation.

Installation Notes

Installation should be performed by a licensed HVAC technician in accordance with local mechanical codes and the manufacturer's installation instructions. Disconnect and lock out all electrical power before servicing or installing the unit. Verify that the supply voltage and phase configuration match the unit nameplate prior to energizing. Refrigerant connections must be made by an EPA Section 608 certified technician using proper recovery and leak-check procedures.

Technical Specifications

• Unit Type: Air Handler
• Tonnage: 7.5 tons
• Voltage: 208/230 volts
• Phase: 3-phase

Standard Information

• Brand: TRANE
• Manufacturer Part Number: TWE09043BAAP01H
