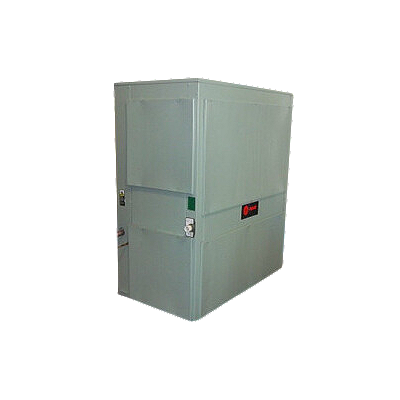

Trane TWE07244BAAP01L Odyssey Air Handler 6 Ton 460V

Product Description

The TRANE TWE07244BAAP01L is a commercial-grade air handler from the Odyssey product line, built for split-system HVAC applications in light commercial environments. Rated at 6 tons of cooling capacity and operating on a 460-volt, 3-phase power supply, this unit delivers the airside performance required for medium-sized commercial spaces. Its convertible configuration supports flexible installation orientations, making it suitable for a range of mechanical room layouts. Licensed HVAC technicians and commercial mechanical contractors are the primary installers of this equipment.

The TWE07244BAAP01L is intended for commercial split-system installations where a dedicated air handler is paired with a matched outdoor condensing unit. The convertible design accommodates varying duct configurations and equipment room constraints common in light commercial construction and retrofit projects. At 6 tons, this unit is sized for applications such as small office buildings, retail spaces, and similar commercial occupancies requiring centralized air distribution on a 460-volt, 3-phase electrical service.

Key Features

• 6-ton cooling capacity sized for light commercial split-system applications
• 460-volt, 3-phase power supply compatible with standard commercial electrical service
• Convertible configuration supports multiple installation orientations
• Part of the Trane Odyssey commercial product line for split-system HVAC
• Commercial-grade construction suitable for demanding mechanical environments

Compatibility

Designed as an OEM-style commercial air handler for use in split-system HVAC configurations requiring a 6-ton, 460-volt, 3-phase airside component.

Installation Notes

Installation must be performed by a licensed HVAC technician or mechanical contractor in accordance with local mechanical codes and the equipment manufacturer's instructions. Disconnect and lock out all electrical power before servicing or installing the unit. Verify that the supply voltage and phase configuration match the unit's nameplate ratings before energizing. Ductwork connections and refrigerant line sizing should conform to the matched system design requirements and applicable codes.

Technical Specifications

• Unit Type: Air Handler
• Cooling Capacity: 6 Tons
• Voltage: 460 volts
• Phase: 3-Phase
• Configuration: Convertible
• Product Line: Odyssey

Standard Information

• Brand: TRANE
• Manufacturer Part Number: TWE07244BAAP01L
