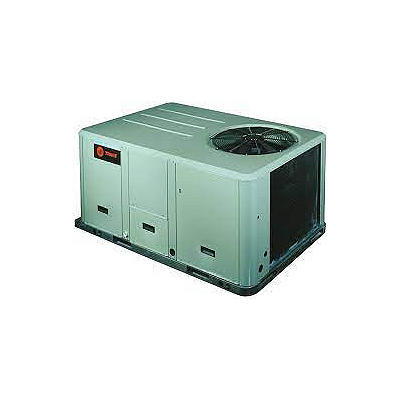

Trane TSJ072A3S0G0DPG 6 Ton Rooftop Air Conditioner

Product Description

The TRANE TSJ072A3S0G0DPG is a 6-ton commercial packaged rooftop unit (RTU) designed for cooling-only applications on light commercial buildings. Operating on 208/230 volts, 3-phase power, this self-contained unit houses the compressor, condenser, and evaporator in a single cabinet mounted directly on the rooftop curb. Licensed HVAC technicians and commercial refrigeration mechanics are the typical service personnel for this class of equipment. At 72,000 BTU/h nominal capacity, it serves single-zone or multi-zone light commercial spaces where a split system is not practical.

This unit is suited for light commercial rooftop applications including retail, office, and low-rise commercial buildings requiring dedicated packaged cooling. The 3-phase electrical configuration makes it appropriate for buildings with commercial electrical service. Installation on a roof curb adapter aligned to the building ductwork opening is the standard deployment scenario. No field-installed refrigerant piping is required, as all refrigerant circuits are factory-sealed and charged at the factory.

Key Features

• 6-ton (72,000 BTU/h) nominal cooling capacity for light commercial applications
• 208/230V 3-phase power input suits buildings with commercial electrical service
• Packaged rooftop design eliminates the need for a separate outdoor condensing unit and refrigerant line sets
• Self-contained cabinet simplifies rooftop curb installation and reduces installation labor
• Cooling-only configuration for dedicated air conditioning without gas heat components

Compatibility

Designed as an OEM packaged rooftop unit for light commercial curb-mount installations requiring 6-ton, 208/230V 3-phase cooling capacity.

Installation Notes

Installation must be performed by a licensed HVAC technician holding an EPA Section 608 certification. Shut off all electrical power at the disconnect before servicing. The unit must be set on a properly rated roof curb and secured per the manufacturer instructions and applicable local mechanical codes. Do not energize the unit until all electrical connections, ductwork, and curb sealing are complete and verified.

Technical Specifications

• Unit Type: Cooling
• Cooling Capacity: 6 tons (72,000 BTU/h nominal)
• Voltage: 208/230 volts, 3-phase

Standard Information

• Brand: TRANE
• Manufacturer Part Number: TSJ072A3S0G0DPG
