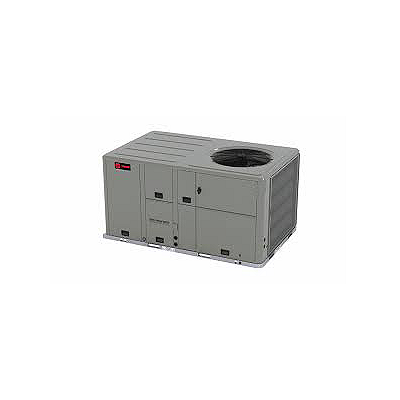

Trane TSC060G4R0A005D Rooftop Unit 5 Ton 60 Mbh 460V

Product Description

The TRANE TSC060G4R0A005D is a packaged rooftop unit (RTU) combining direct-expansion cooling with gas-electric heating in a single factory-assembled cabinet. Rated at 5 tons of nominal cooling capacity and 60 MBh gross output, the unit runs on 460-volt, 3-phase power, making it suited to commercial electrical infrastructure. Licensed HVAC mechanics and commercial refrigeration technicians are the primary installers. The all-in-one design eliminates the need for a separate air handler or furnace, consolidating the refrigerant circuit, heat exchanger, and controls into one rooftop package.

The TSC060G4R0A005D is intended for commercial rooftop applications where a single self-contained unit must handle both cooling and gas heating loads. Typical installations include light commercial buildings, retail spaces, small offices, and warehouses requiring zone-level climate control served from the roof deck. The unit connects to existing ductwork through roof curb openings and is sized for loads commonly found in mid-size commercial zones. Three-phase 460-volt power is standard in commercial construction and is a prerequisite for this unit.

Key Features

• 5-ton nominal cooling capacity suits mid-size commercial zones
• 60 MBh gross cooling output in a packaged rooftop configuration
• Gas-electric design combines DX cooling and gas heating in one cabinet
• 460-volt, 3-phase electrical supply matches commercial power infrastructure
• Factory-assembled cabinet simplifies rooftop installation and startup

Compatibility

Designed as an OEM packaged rooftop gas-electric unit for commercial cooling and heating applications requiring 460-volt, 3-phase power at 5-ton capacity.

Installation Notes

Installation must be performed by a licensed HVAC technician familiar with commercial rooftop equipment and local mechanical codes. Disconnect and lock out all electrical power at the main disconnect before making any electrical or refrigerant connections. The unit must be set on a properly sized and flashed roof curb with adequate structural support for the cabinet weight. Gas connections must comply with IFGC requirements and be leak-tested before startup.

Technical Specifications

• Unit Type: Packaged Rooftop Gas Electric
• Cooling Capacity: 5 tons nominal / 60 MBh gross
• Voltage: 460 volts
• Phase: 3-phase

Standard Information

• Brand: TRANE
• Manufacturer Part Number: TSC060G4R0A005D
