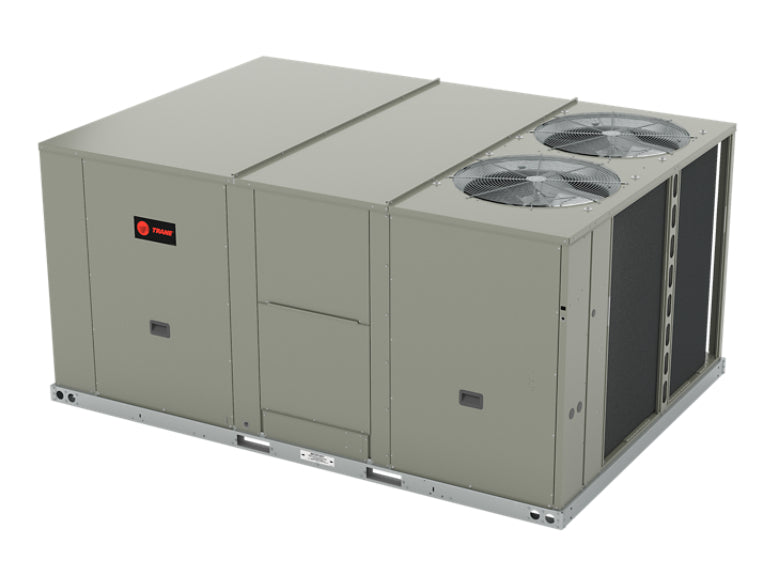

Trane THC060F4EJA63H1 Packaged Rooftop Ac 5 Ton 460V

Product Description

The TRANE THC060F4EJA63H1 is a packaged rooftop air conditioning unit rated at 5 tons of cooling capacity and designed for light commercial applications. Operating on 460 volts, 3-phase power, this self-contained unit integrates the compressor, condenser, and evaporator coil into a single cabinet mounted directly on a rooftop curb. HVAC technicians and mechanical contractors specify this type of equipment where interior mechanical room space is limited and a single-point electrical and duct connection is required. The unit handles cooling-only operation and suits mid-size commercial spaces such as retail stores, office suites, and light industrial facilities.

The THC060F4EJA63H1 is suited for light commercial rooftop installations where a ducted, self-contained cooling system is required. Its 460-volt, 3-phase electrical configuration is standard for commercial buildings with three-phase service, making it a common specification for new construction and equipment replacement projects on low-slope commercial roofing systems. Installation is performed by licensed HVAC mechanical contractors familiar with commercial rooftop equipment and associated curb adapters, ductwork transitions, and electrical disconnects.

Key Features

• 5-ton cooling capacity in a single packaged rooftop cabinet
• 460V, 3-phase power supply for commercial electrical systems
• Cooling-only operation for straightforward mechanical system design
• Self-contained design eliminates the need for a separate outdoor condensing unit
• Rooftop mounting reduces ground-level equipment footprint

Compatibility

Designed as an OEM packaged rooftop unit intended for light commercial ducted cooling applications requiring 460-volt, 3-phase power and a 5-ton cooling capacity.

Installation Notes

Installation must be performed by a licensed HVAC contractor in accordance with local mechanical codes and the manufacturer's installation instructions. Disconnect and lock out all electrical power before servicing the unit. The rooftop curb must be properly flashed and leveled prior to setting the unit, and all refrigerant handling must be performed by an EPA Section 608 certified technician. Verify that the existing electrical service and disconnect ratings meet the unit's minimum circuit ampacity and maximum overcurrent protection requirements before energizing.

Technical Specifications

• Unit Type: Cooling Only
• Cooling Capacity: 5 Tons
• Voltage: 460V
• Phase: 3-Phase

Standard Information

• Brand: TRANE
• Manufacturer Part Number: THC060F4EJA63H1
