Trane ECC102A3E0B3YXA Rooftop Ac 8.5 Ton 460V 3 Phase

Product Description

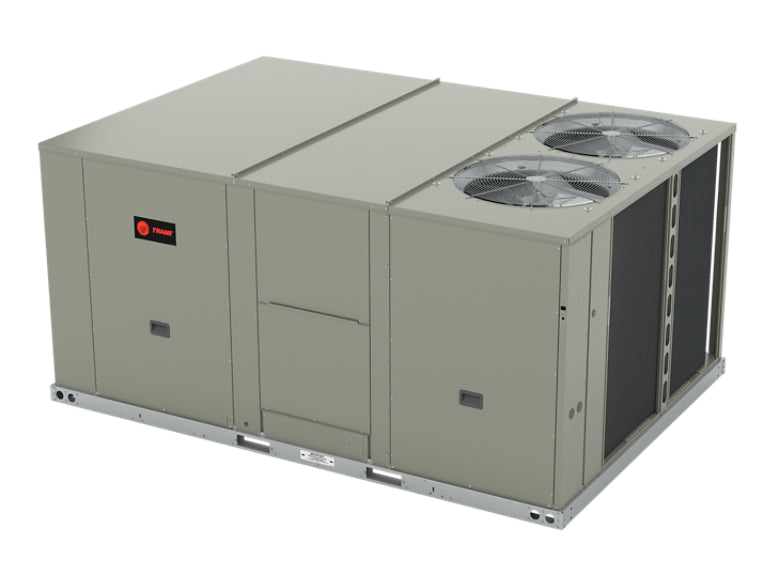

The TRANE ECC102A3E0B3YXA is a light commercial packaged rooftop unit (RTU) from the Foundation Series, rated at 8.5 tons of cooling capacity. It operates on a 3-phase electrical supply and is built for direct-driven cooling in light commercial applications. The unit is a self-contained system, housing the compressor, condenser, and evaporator in a single rooftop cabinet. Licensed HVAC technicians and commercial mechanical contractors handle installation and commissioning of this equipment type.

This RTU is suited for light commercial buildings such as retail spaces, small offices, and similar low-rise structures requiring rooftop-mounted packaged cooling. The Foundation Series targets applications where a straightforward, self-contained cooling solution is needed without supplemental heating. Note: the raw product data includes a reference to 208/230V 3-phase voltage alongside the 460V designation noted in the product title — verify the exact voltage configuration against the unit nameplate and project electrical supply before ordering.

Key Features

• 8.5-ton cooling capacity for light commercial load requirements
• Packaged rooftop design consolidates all refrigeration components in a single cabinet
• 3-phase power configuration suitable for commercial electrical services
• Foundation Series platform designed for straightforward installation and serviceability
• Direct-driven operation reduces mechanical complexity

Compatibility

Designed as an OEM packaged rooftop cooling unit within the TRANE Foundation Series product line. Confirm curb dimensions, electrical service voltage, and duct connection orientation against existing rooftop curb and building electrical supply prior to installation.

Installation Notes

Installation must be performed by a licensed HVAC technician or certified commercial mechanical contractor in accordance with local mechanical codes and the manufacturer's installation instructions. Disconnect and lock out all electrical power at the building disconnect before making any electrical or refrigerant connections. Rooftop curb alignment, duct connection, and refrigerant line integrity must be verified before startup. Do not energize the unit until all electrical terminations are complete and inspected per applicable NEC requirements.

Technical Specifications

• Unit Type: Cooling
• Cooling Capacity: 8.5 tons
• Phase: 3-phase

Standard Information

• Brand: TRANE
• Manufacturer Part Number: ECC102A3E0B3YXA
